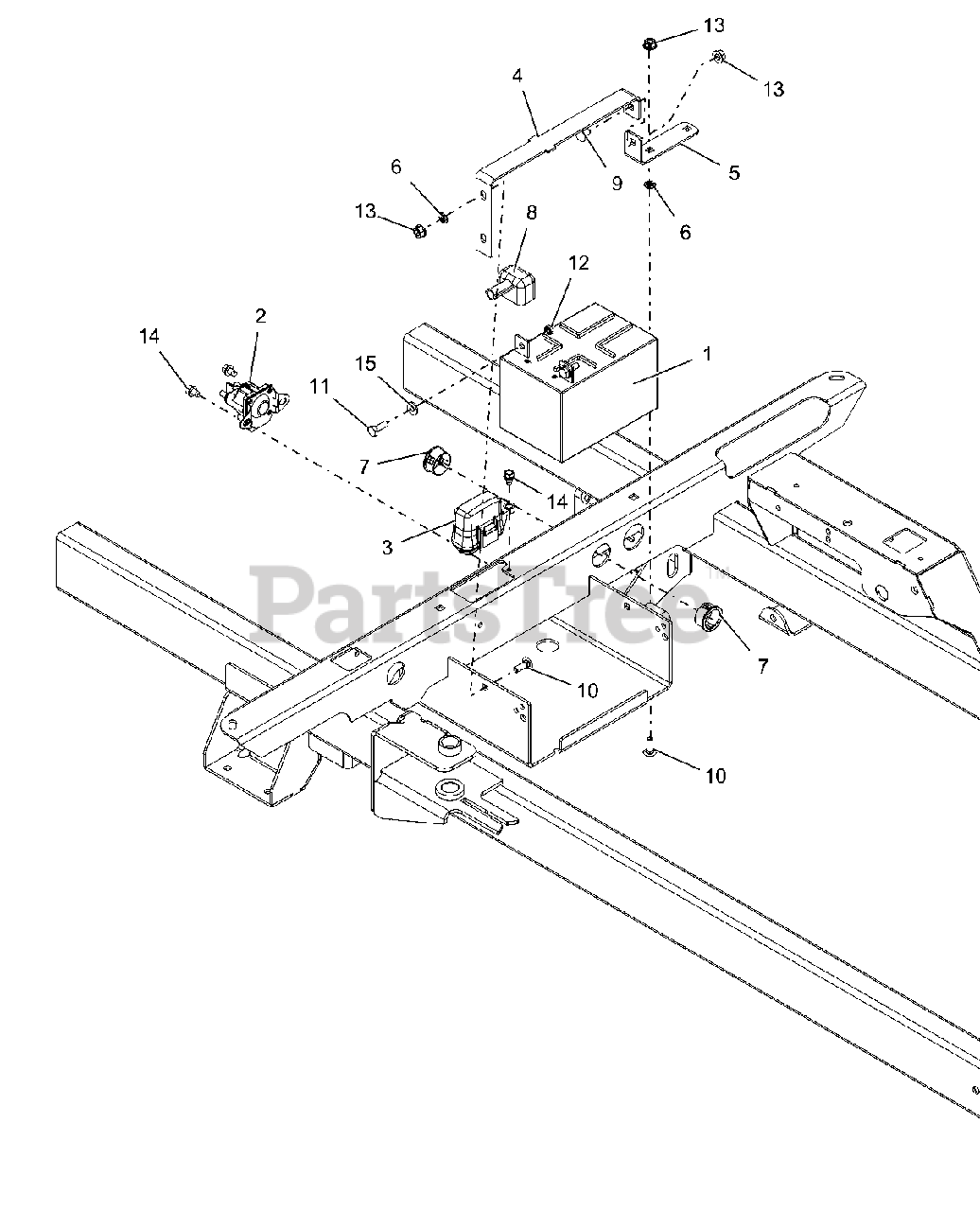

915329 - Ariens Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki (SN: 016000 & Above) Electrical Parts Diagram

Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki

Electrical Parts Diagram

  • Title

1

Ariens 04738800

BATTERY, 12V 12A-190CCA

$122.99

$

In Stock, Qty 20+

0

2

Ariens 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 2 left!

0

3

Ariens 04794500

HARNESS, WIRE - 2015 ZOOM/ZT

Note: IF YOU HAVE THE 5 WAY CONNECTOR, IT MATES WITH 03290500 IGNITION SWITCH (NOT SHOWN)

$92.99

$

Usually ships in 4-12 days

0

3

Ariens 04974400

HARNESS, WIRE-4POS KEY IKON/ZT
(Superseded to 05295600)

Note: IF YOU HAVE THE 7 WAY CONNECTOR, IT MATES WITH 04974300 IGNITION SWITCH (NOT SHOWN)

$102.99

$

In Stock, only 1 left!

0

4

Ariens 04794651

BRKT, BATTERY HOLD-DOWN

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 04833651

BRKT, BATTERY HOLD DOWN

$

$

Not available

6

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

7

Ariens 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

9

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500704

NUT, 10-24 KEPS

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
