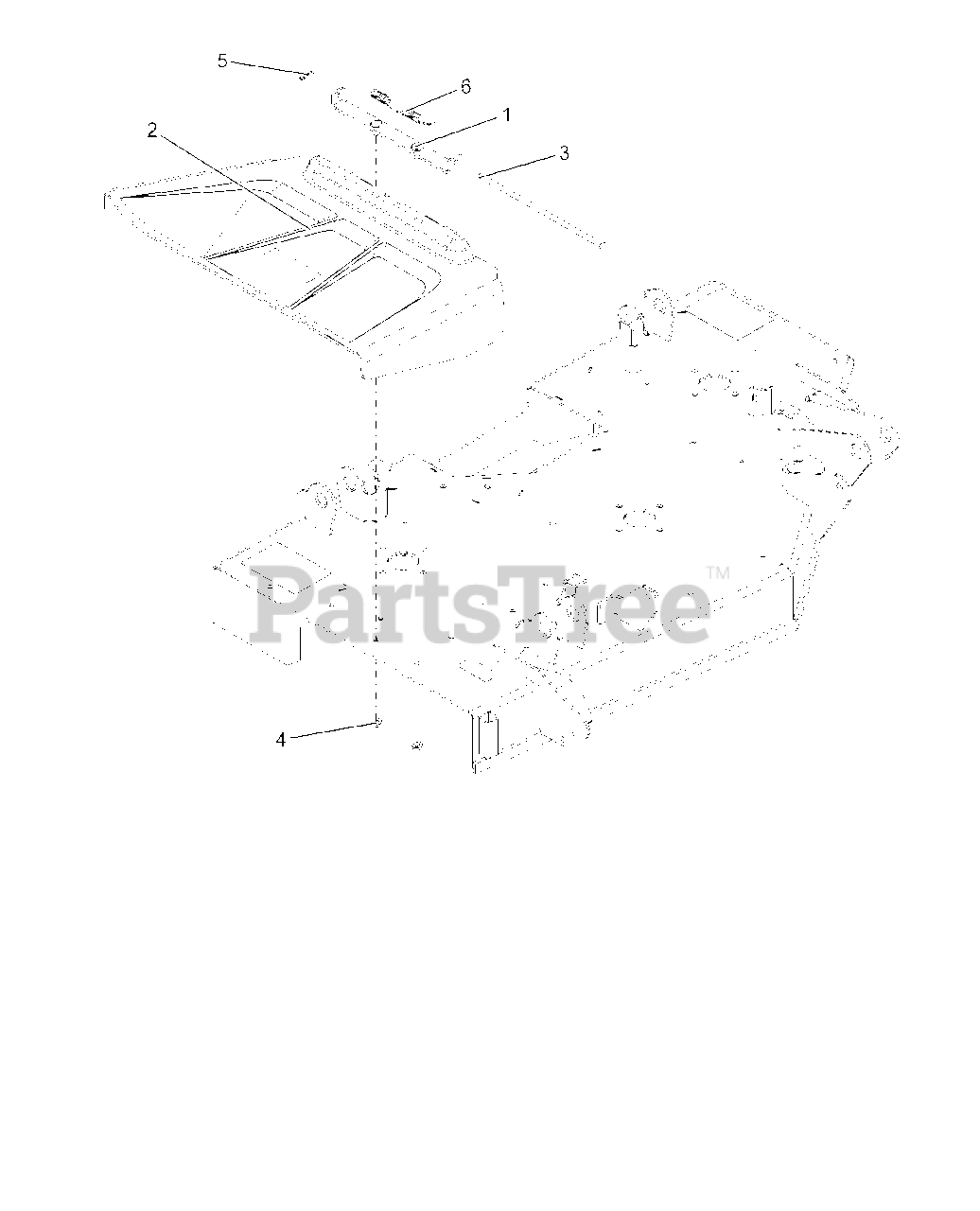

915329 - Ariens Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki (SN: 016000 & Above) Chute Parts Diagram

Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki

Chute Parts Diagram

  • Title
1

Ariens 04799859

WLDMT, CHUTE MT BRKT
(Superseded to 04799800)

$21.99

$

In Stock, Qty 20+

0

2

Ariens 04795000

CHUTE, SIDE DISCHARGE

$45.99

$

In Stock, Qty 20+

0

3

Ariens 04815900

PIN, 5/16 X 10.5
(Superseded to 06800205)

$15.99

$

In Stock, Qty 20+

0

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 08300621

SPRING-TORSION

$5.99

$

In Stock, Qty 20+

0
