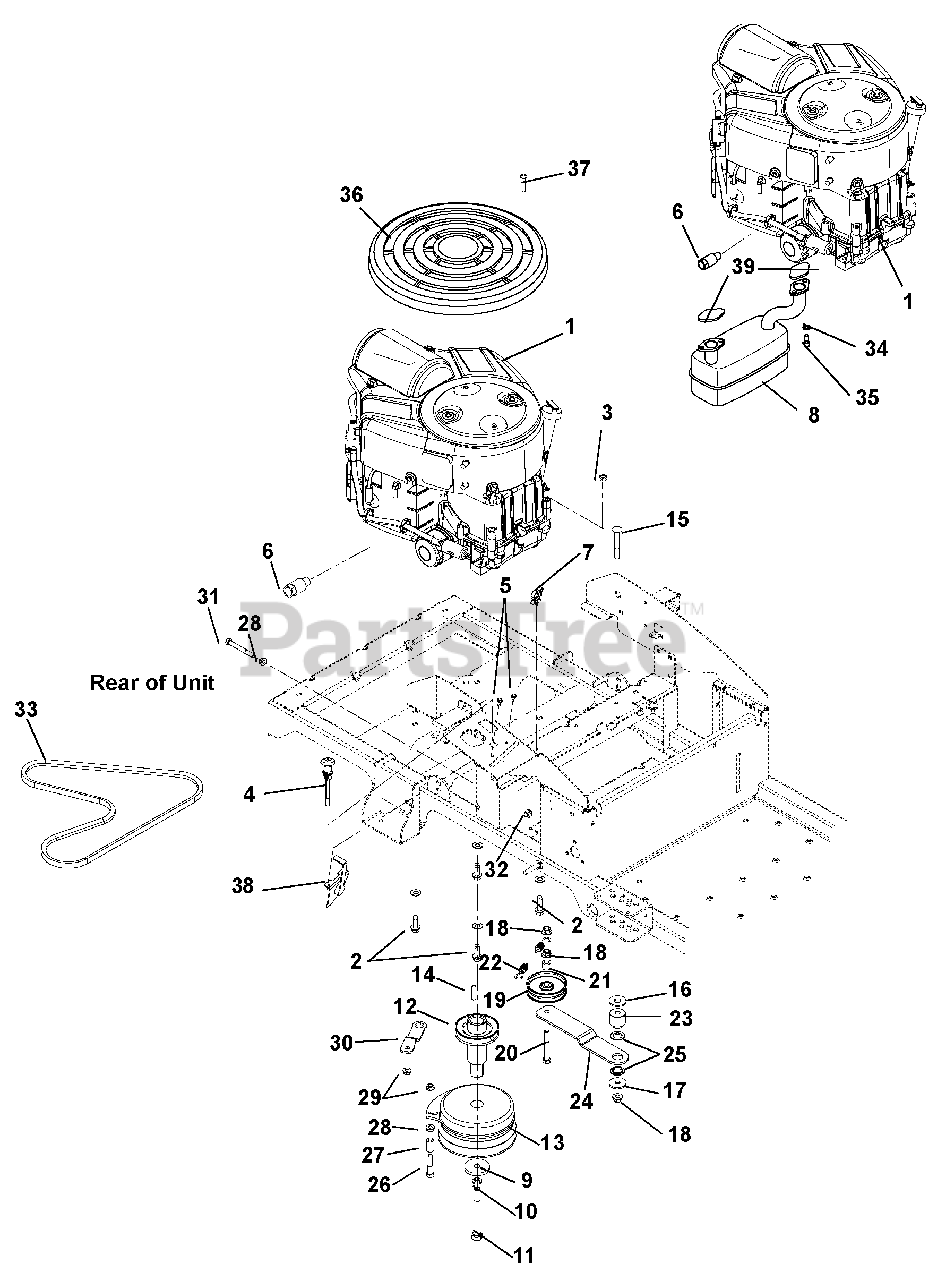

915328 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 045000 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08201013

Engine, 16HP V-Twin CE (915327)

Note: (915327)

$

$

Not available

1

Gravely 08201014

Engine, 18HP V-Twin CE (915328)

Note: (915328)

$

$

Not available

2

Gravely 07414700

Screw, Tapping .38-16 x 1.25 Hex Washer Head
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 06537200

Nut, Locking Jam .375-16 (915327)
(Superseded to 06500914)

Note: (915327)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06900408

Cable, Choke

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

6

Gravely 03943600

Oil Drain

$11.99

$

In Stock, only 3 left!

0

7

Gravely 00390100

Wire Clip (for .25" hole)

Note: (for .25" hole)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 02997300

Muffler, Twin Briggs
(Superseded to 09391900)

$

$

Not available

9

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

10

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

11

Gravely 05966700

Bolt, Hex .44-20 x 4.50 Grade 8
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

12

Gravely 07338600

Weldment, Crankshaft Extension

$85.99

$

Usually ships in 4-12 days

0

13

Gravely 03972700

Clutch, 105 FT*LB MONO Pole

$258.99

$

In Stock, only 1 left!

0

14

Gravely 06603400

Key, Square .25 x 1.25 x .25 SAE 8630 or SAE 1035

$3.99

$

In Stock, Qty 11

0

15

Gravely 06225400

Bolt, Round Head Square Neck .38-16 x 2.75
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

18

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07300221

Pulley, Engine Clutch

$30.99

$

In Stock, only 1 left!

0

20

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

21

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

22

Gravely 08300512

Spring, Extension

$17.99

$

In Stock, Qty 20+

0

23

Gravely 03961100

Spacer, Ground Drive Idler

$5.99

$

In Stock, only 1 left!

0

24

Gravely 03961067

Idler Arm, Ground Drive

$

$

Not available

25

Gravely 03960700

Bushing, Idler Arm

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 05901418

Screw, Cap .31-18 x 1.75

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 03980200

Spacer, Rubber 5/16 ID x 1.0

$2.49

$

In Stock, only 2 left!

0

28

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 03956751

Bracket, Clutch Stop

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 05960600

Bolt, Hex .31-18 x 2.75
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 06545400

Nut, Locking Nylon Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 07200010

V-Belt, HA-RAW Edge Laminated

$36.99

$

In Stock, only 2 left!

0

34

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 05933100

Capscrew .31-18 x .75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

36

Gravely 03275500

Guard, Briggs Engine

$28.99

$

Usually ships in 4-12 days

0

37

Gravely 06100206

Screw, 8-16 x .87

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06900416

Cable, Throttle

$34.99

$

In Stock, only 1 left!

0

39

Gravely 05600505

Gasket, Muffler Courage Twin

$9.99

$

Usually ships in 4-12 days

0
