915328 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 045000 & Above) Belt Covers And Blades Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

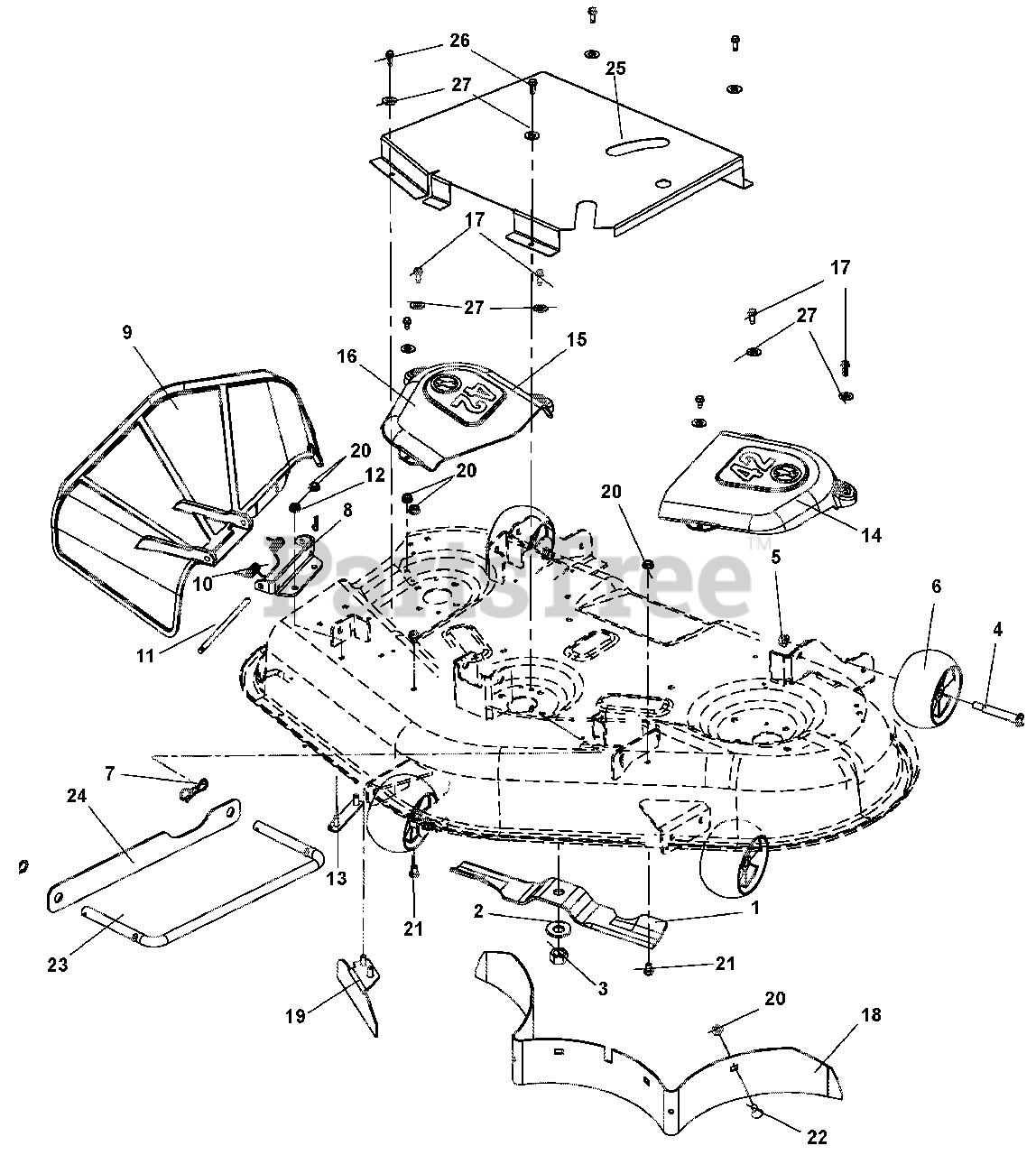

Belt Covers And Blades Parts Diagram

  • Title
1

Gravely 04265400

Mower Blade, 14.83"

$25.99

$

In Stock, Qty 20+

0

2

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 6

0

3

Gravely 06500630

Nut, Hex .62-18
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03905600

Anti-Scalp Wheel, 5 x 3 OS

$15.99

$

In Stock, Qty 20+

0

7

Gravely 06700201

Pin, Bow Tie Locking Cotter .091 x 1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 04073053

Bracket, Discharge Chute Mount 42"

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 04375900

Discharge Chute – Molded

$86.99

$

In Stock, only 1 left!

0

10

Gravely 08300515

Spring, Torsion

$34.99

$

In Stock, only 1 left!

0

11

Gravely 00475800

Pin, 5/16 x 5.80"

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 03977400

Weldment, Discharge Chute MT. Strap

$

$

Not available

14

Gravely 03902200

Belt Cover, Left Hand 42"

$28.99

$

In Stock, Qty 20+

0

15

Gravely 03902100

Belt Cover, Right Hand 42"

$27.99

$

Usually ships in 4-12 days

0

16

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07414200

Screw, Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

18

Gravely 03957853

Baffle, 42 Rear

$60.99

$

Usually ships in 4-12 days

0

19

Gravely 04395453

Weldment – Baffle, Discharge 42"

$71.99

$

Usually ships in 4-12 days

0

20

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05947200

Bolt, Hex .31-18 x .50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

22

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 04377667

Wireform, Drag Link
(Superseded to 04377600)

$23.99

$

In Stock, only 1 left!

0

24

Gravely 04424951

Strap, Drag Link
(Superseded to 04424967)

$20.99

$

In Stock, only 1 left!

0

25

Gravely 04847351

CE Belt Guard

$

$

Not available

26

Gravely 07400104

Screw, tap .25-20x.50
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 07027600

Nut, push .25x.50

$2.49

$

In Stock, Qty 9

0
