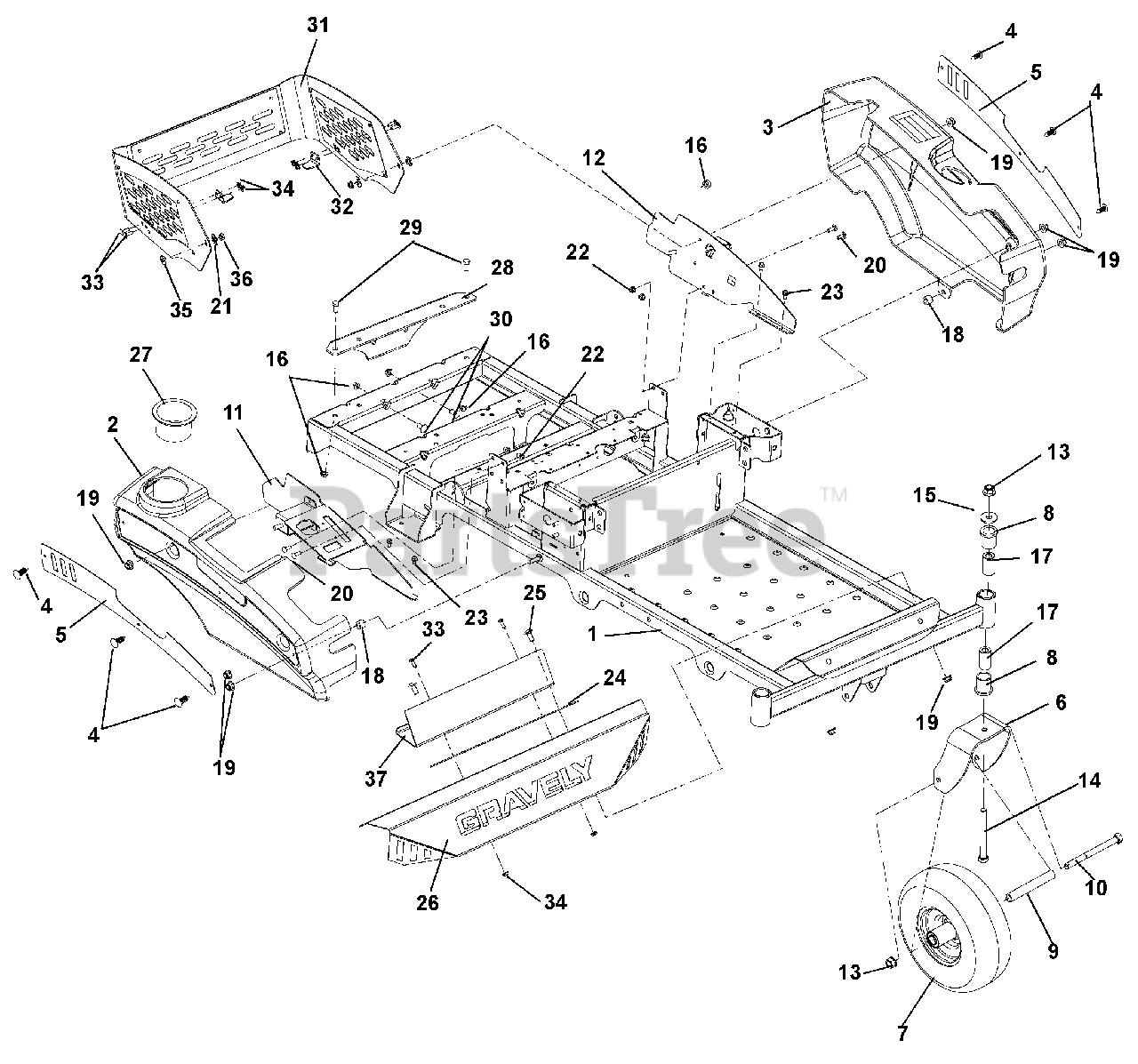

915328 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 030000 - 034999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 04282751

Weldment, Frame
(Superseded to 51525800)

$

$

Not available

2

Gravely 03768600

Fender, Right Hand

$79.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

Rivet, Nylon

$1.49

$

In Stock, Qty 18

0

5

Gravely 04717553

Plate, Fender

$22.99

$

In Stock, only 3 left!

0

6

Gravely 03368559

Fork, Caster

$74.99

$

In Stock, only 1 left!

0

7

Gravely 07100801

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0

$68.99

$

In Stock, Qty 5

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, Qty 5

0

11

Gravely 04717353

Weldment, Fender Mount Right Hand

$

$

Not available

12

Gravely 04717253

Weldment, Fender Mount Left Hand

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

Nut, Locking, Top, Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06542000

Nut, Locking, Top, Flange .38-16 (915328)
(Superseded to 06500822)

Note: (915328)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

Nut, Locking, Top, Flange .38-16 (915327)
(Superseded to 06500822)

Note: (915327)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00363100

Spacer, Caster

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

19

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06443300

Washer, Flat, Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

23

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03833800

Grip, Adhesive (1" x 16" BLK)

Note: (1" x 16" BLK)

$

$

Not available

25

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 04717053

Foot Rest

$64.99

$

Usually ships in 4-12 days

0

27

Gravely 04196270

Cupholder

$

$

Currently unavailable

28

Gravely 03853851

Plate, BBZ Hitch Kit Plate (915328)

Note: (915328)

$

$

Not available

29

Gravely 05959400

Bolt, Hex .38-16 x .75 (915328)
(Superseded to 05901702)

Note: (915328)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06223900

Bolt, Round Head Square Neck .31-16 x .75 (915328)
(Superseded to 06200312)

Note: (915328)

$1.49

$

In Stock, only 4 left!

0

31

Gravely 51526600

Assembly, Engine Wrap

$175.99

$

Usually ships in 4-12 days

0

32

Gravely 04733251

Bracket, Engine Wrap Foot

$

$

Not available

33

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06500710

Nut, Center Lock Flange .25-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 05501127

Bushing, Flange .325 x .499 x .3 x .875

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06528700

Nut, Center Lock Flange .31-18
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 04717151

Plate, Back Foot Rest

$

$

Not available
