915327 (ZT 34) - Gravely 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 035000 - 044999) Seat And Seat Support Parts Diagram

34" Zero-Turn Mower, 16hp Briggs & Stratton

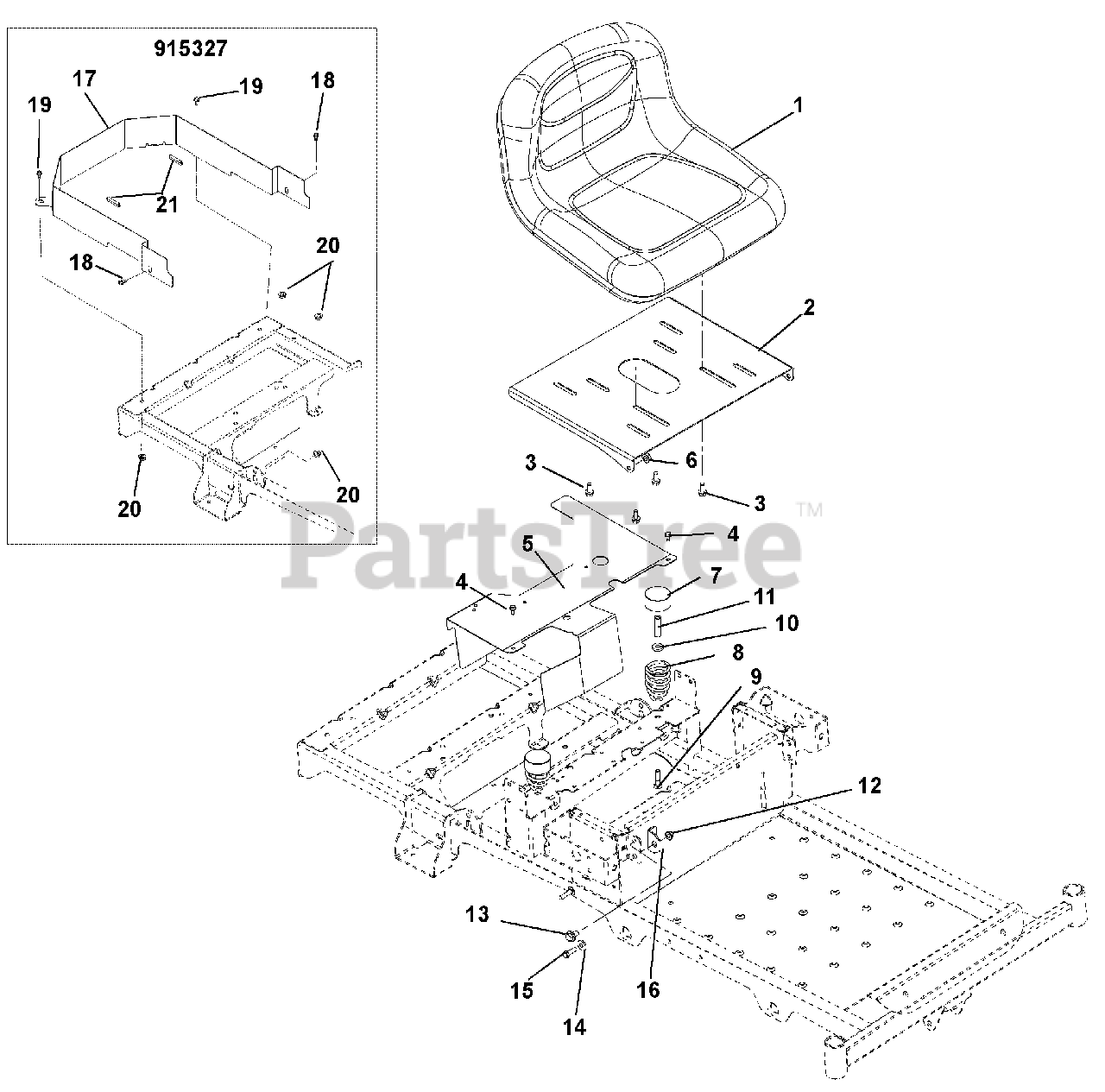

Seat And Seat Support Parts Diagram

  • Title
1

Gravely 03795800

Seat, 13 in Grey

$

$

Not available

2

Gravely 03782051

Seat Plate

$98.99

$

Usually ships in 4-12 days

0

3

Gravely 05900033

Bolt, Hex 5/16-18 x 3/4
(Superseded to 07001820)

$

$

Not available

4

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 04305351

Cover, Zoom CE Fan

$

$

Not available

6

Gravely 06542000

Nut, .38-16 Locking Top Flange
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

$2.99

$

In Stock, Qty 20+

0

8

Gravely 08300021

Spring, Seat

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

10

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 06500015

Nut, Coupling 5/16-18 x 1.75
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06545400

Nut, 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

14

Gravely 01305900

Bushing, Flange .325 x .499 x .26 x .88

$2.49

$

In Stock, only 1 left!

0

15

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03798751

Bracket, Seat Stop

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 04732051

Shield, ZT CE Reach-In

$

$

Not available

18

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5 YWCZ
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06534800

Nut, Locking Center .38-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07500103

Edging, Molded

$3.49

$

Usually ships in 4-12 days

0
