915327 (ZT 34) - Gravely 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 030000 - 034999) Steering Controls Parts Diagram

34" Zero-Turn Mower, 16hp Briggs & Stratton

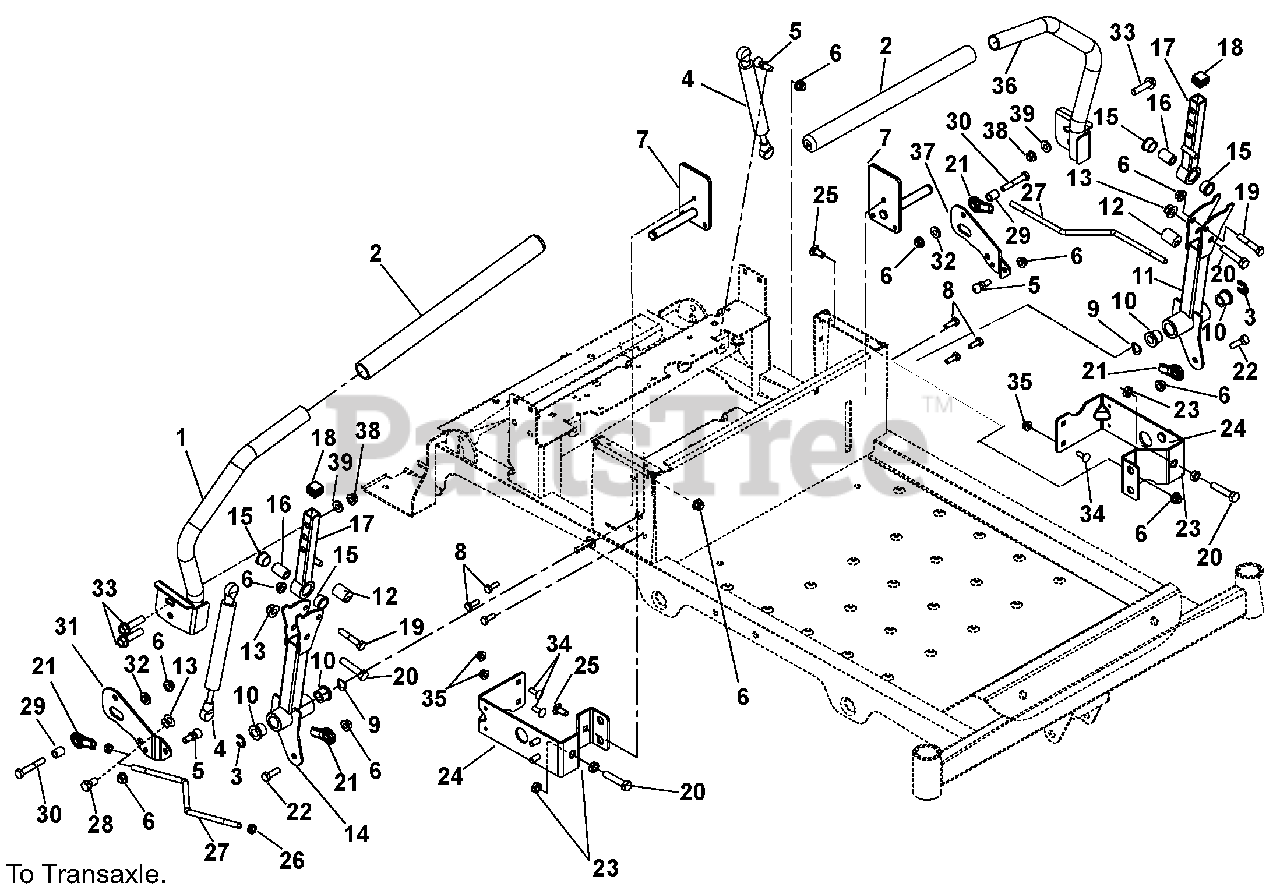

Steering Controls Parts Diagram

  • Title

1

Gravely 04193051

Weldment, Steering Handle Right Hand

$129.99

$

In Stock, only 1 left!

0

2

Gravely 04257400

Grip, Handlebar 15" Foam

$15.99

$

In Stock, only 2 left!

0

3

Gravely 05710200

Ring, Retaining External .438 x 1.00 x 0.83

$0.99

$

In Stock, Qty 20+

0

4

Gravely 03943800

Damper

$40.99

$

In Stock, only 2 left!

0

5

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

6

Gravely 06545400

Nut, .31-18 Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04197651

Weldment, Steering Shaft

$67.99

$

In Stock, Qty 13

0

8

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06400005

Washer, Wave

$2.99

$

In Stock, only 2 left!

0

10

Gravely 05511000

Bushing, Flanged

$11.99

$

In Stock, Qty 20+

0

11

Gravely 04192851

Weldment, Lower Control Arm

$90.99

$

In Stock, only 2 left!

0

12

Gravely 05500932

Bushing, Eccentric

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04199451

Weldment, Lower Control Right Hand

$90.99

$

Usually ships in 4-12 days

0

15

Gravely 05501017

Bushing, Flanged

$7.99

$

In Stock, only 3 left!

0

16

Gravely 04193500

Spacer, .375 x .625 x .970

$1.49

$

In Stock, only 2 left!

0

17

Gravely 04192951

Weldment, Upper Control Arm

$49.99

$

In Stock, only 4 left!

0

18

Gravely 07500131

Cap Plug, Square

$

$

Not available

19

Gravely 05957400

Bolt, Hex .31-18 x 1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

20

Gravely 05974000

Bolt, Hex .375-16 x 1.75
(Superseded to 05901612)

$2.99

$

In Stock, only 1 left!

0

21

Gravely 03787100

Alignaball, 5/16 RH Thread

$12.99

$

In Stock, only 2 left!

0

22

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03956251

Bracket, Speed Adjustment/Seat Pivot

$193.99

$

In Stock, only 1 left!

0

25

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06536700

Nut, Jam, .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

27

Gravely 04197300

Wireform, Steering Link

$25.99

$

In Stock, only 2 left!

0

28

Gravely 05959400

Bolt, Hex .38-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 04208000

Spacer, .328 x .500 x .625

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 05957200

Bolt, Hex .31-18 x 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 03759351

Plate, Dampener Right Hand

$13.99

$

Usually ships in 4-12 days

0

32

Gravely 04147200

Bushing, Flanged

$

$

Not available

33

Gravely 07050000

Bolt, Serrated Hex Flange Washer Head .375-16 x 1.25
(Superseded to 07001816)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

35

Gravely 06500012

Nut, Locking Nylon Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

36

Gravely 04199551

Weldment, Steering Handle Left Hand

$107.99

$

Usually ships in 4-12 days

0

37

Gravely 03766051

Plate, Damper Left Hand

$10.99

$

Usually ships in 4-12 days

0

38

Gravely 06537200

Nut, Locking Center Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
