915327 (ZT 34) - Gravely 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 030000 - 034999) Electrical System Parts Diagram

34" Zero-Turn Mower, 16hp Briggs & Stratton

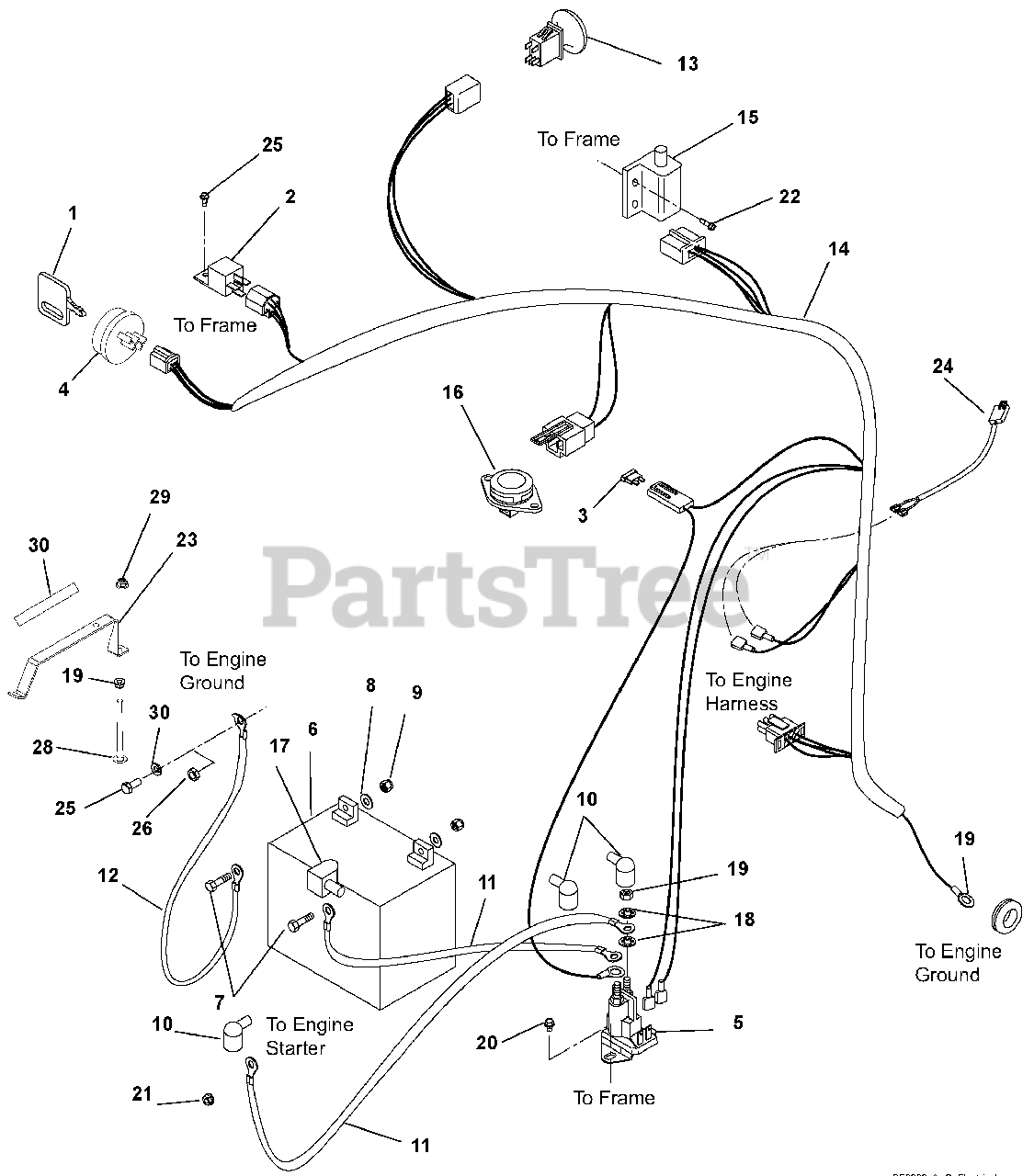

Electrical System Parts Diagram

  • Title

1

Gravely 03927000

Key

$9.99

$

In Stock, Qty 13

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 30 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

4

Gravely 04986400

Key, Ignition

Note: Not Shown

$7.99

$

In Stock, only 1 left!

0

5

Gravely 00696900

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 04382200

Battery, 12V 20 Hour (Can be replaced with U1 190 or larger)
(Superseded to 04738800)

Note: (Can be replaced with U1 190 or larger)

$122.99

$

In Stock, Qty 20+

0

7

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06509200

Nut, KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

10

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 2 left!

0

11

Gravely 04249800

Cable, POS

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 04249900

Ground Cable

$34.99

$

In Stock, only 1 left!

0

13

Gravely 04399600

Switch, Clutch With Retainer

$22.99

$

In Stock, only 1 left!

0

14

Gravely 03773900

Harness, Wiring ZT

$102.99

$

In Stock, only 2 left!

0

15

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$17.99

$

In Stock, only 1 left!

0

16

Gravely 03654200

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$

$

Not available

17

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

19

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

20

Gravely 07411600

Screw, Tapping .250-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07400038

Screw, 12-14 x .75 HX

$

$

Not available

23

Gravely 04385351

Hold Down, Battery

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 03972600

Harness, Clutch

$

$

Not available

25

Gravely 07411900

Screw, Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

26

Gravely 06537200

Nut, Locking Center Jam .375-16 (915327)
(Superseded to 06500914)

Note: (915327)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 00390100

Wire Clip (915328)

Note: (915328)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 06200211

Bold, Round Head Square Neck .25-20 x 4.50
(Superseded to 06200308)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06500012

Nut, Locking Nylon Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

30

Gravely 07800336

Decal, U1 Battery Replacement

$

$

Not available
