915327 (ZT 34) - Gravely 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 020000 - 029999) Mower Deck, Belt and Idlers Parts Diagram

34" Zero-Turn Mower, 16hp Briggs & Stratton

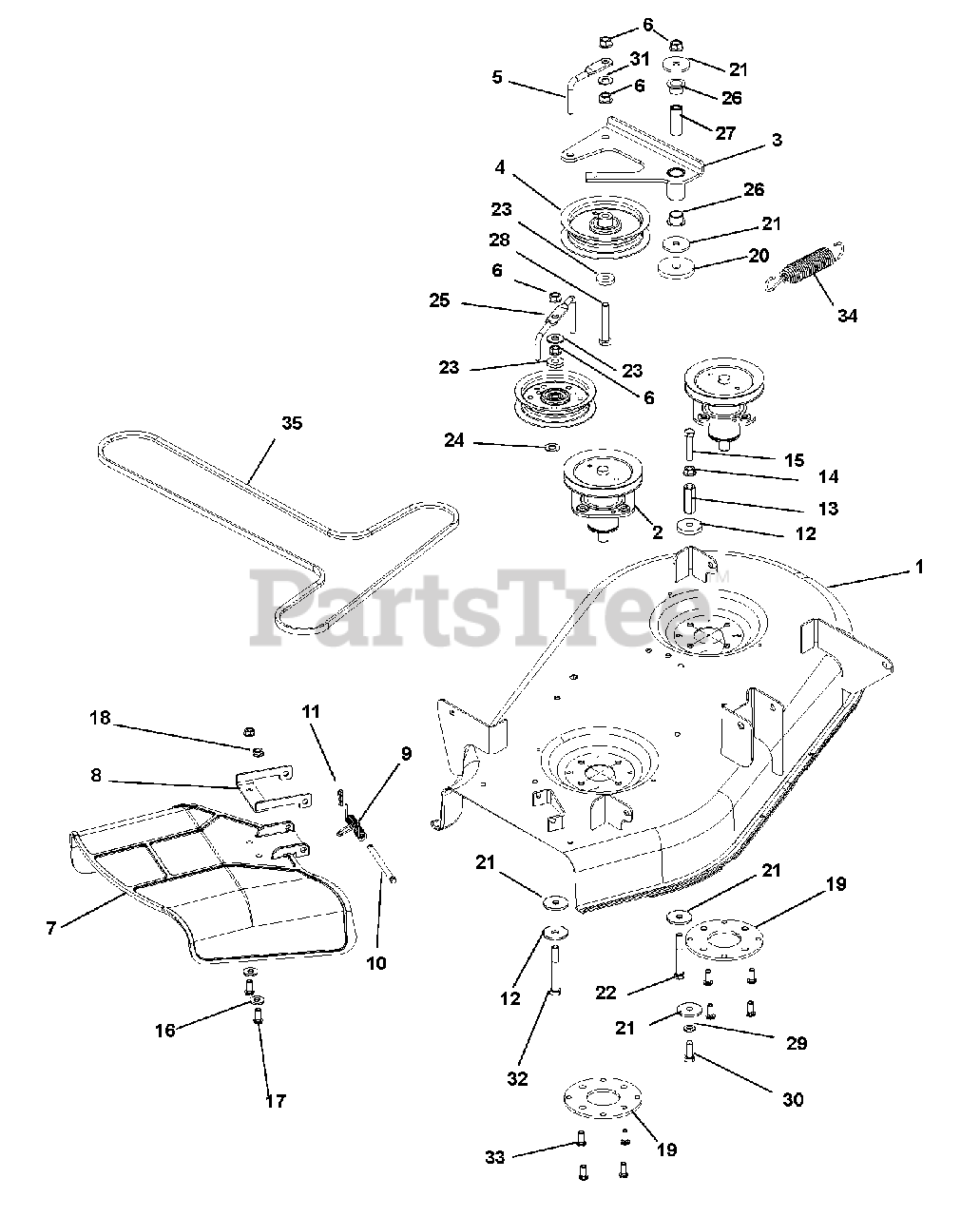

Mower Deck, Belt and Idlers Parts Diagram

  • Title

1

Gravely 04418859

Weldment, Deck 34" CE

$

$

Not available

2

Gravely 61559900

Assembly, Spindle
(Superseded to 51519500)

$156.99

$

In Stock, Qty 7

0

3

Gravely 04430867

Weldment, Idler Arm
(Superseded to 04430851)

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

5

Gravely 03828853

Wireform, Belt Finger
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03994300

Chute, Side Discharge

$54.99

$

In Stock, only 1 left!

0

8

Gravely 00662653

Chute Reinforcement

$

$

Not available

9

Gravely 01258100

Spring, Torsion

$9.49

$

In Stock, Qty 8

0

10

Gravely 06800002

Pin, 5/16 x 3.88"

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

14

Gravely 06534900

Nut, Spin Lock, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05920900

Screw, Socket Head .31-18 x .75 Button Head

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 03839053

Plate, REINF, Spindle

$22.99

$

Usually ships in 4-12 days

0

20

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

21

Gravely 06443400

Washer, Flat Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

22

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03974153

Belt Finger
(Superseded to 03974100)

$

$

Not available

26

Gravely 05500907

Bushing, Flange, .625 x .750 x .500 x 1.00

$5.99

$

In Stock, Qty 20+

0

27

Gravely 03763400

Spacer, .375ID x .625D x 1.66 Promaster

$3.99

$

In Stock, Qty 20+

0

28

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

29

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

33

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolling
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 08320300

Spring, Tension .135 x .98 x 6.0

$17.99

$

In Stock, Qty 20+

0

35

Gravely 07200116

V-Belt, HA-Wrapped Clutching

$63.99

$

In Stock, only 3 left!

0
