915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 040000 - 044999) Fuel Tank Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

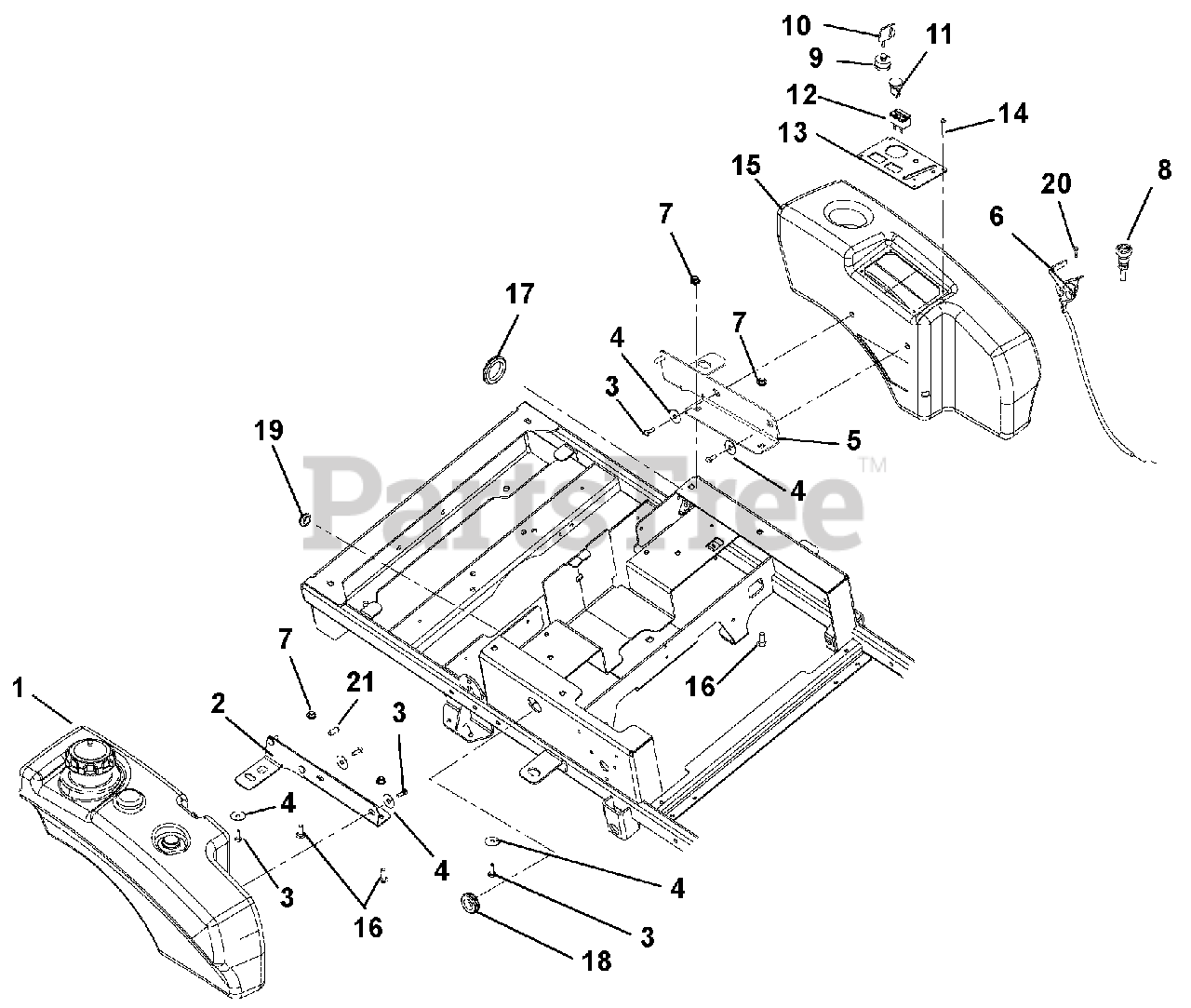

Fuel Tank Parts Diagram

  • Title

1

Gravely 04430400

Tank, XL

$407.99

$

In Stock, only 1 left!

0

2

Gravely 04718053

Weldment, RH Tank Mount

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 07049500

Bolt, Serrated Hex Flange Washer Head .312-18 x .50

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 06446900

Washer, Flat Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 04718153

Weldment, LH Fender Mount

$

$

Not available

6

Gravely 06900315

Cable, Throttle

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06900323

Cable, Choke

$68.99

$

Usually ships in 4-12 days

0

9

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

10

Gravely 02460700

Key, w/cap

$7.99

$

In Stock, Qty 20+

0

11

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

12

Gravely 03966800

Hour Meter, Digital
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

13

Gravely 02975751

Panel, Control

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 06830000

Rivet, Plastic .195 Diameter

$2.49

$

In Stock, Qty 20+

0

15

Gravely 02967400

Fender, XL

$147.99

$

Usually ships in 4-12 days

0

16

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

17

Gravely 07500017

Grommet, 2.00"

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 07506500

Grommet .125 x 1.000 ID

$3.49

$

In Stock, only 1 left!

0

19

Gravely 07500031

Grommet, Rubber 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head Thread
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

21

Gravely 07500314

Cap, End .312 x 1.00

$

$

Not available
