915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 035000 - 039999) 42" CE Mower Deck, Belt, Idlers And Blades Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

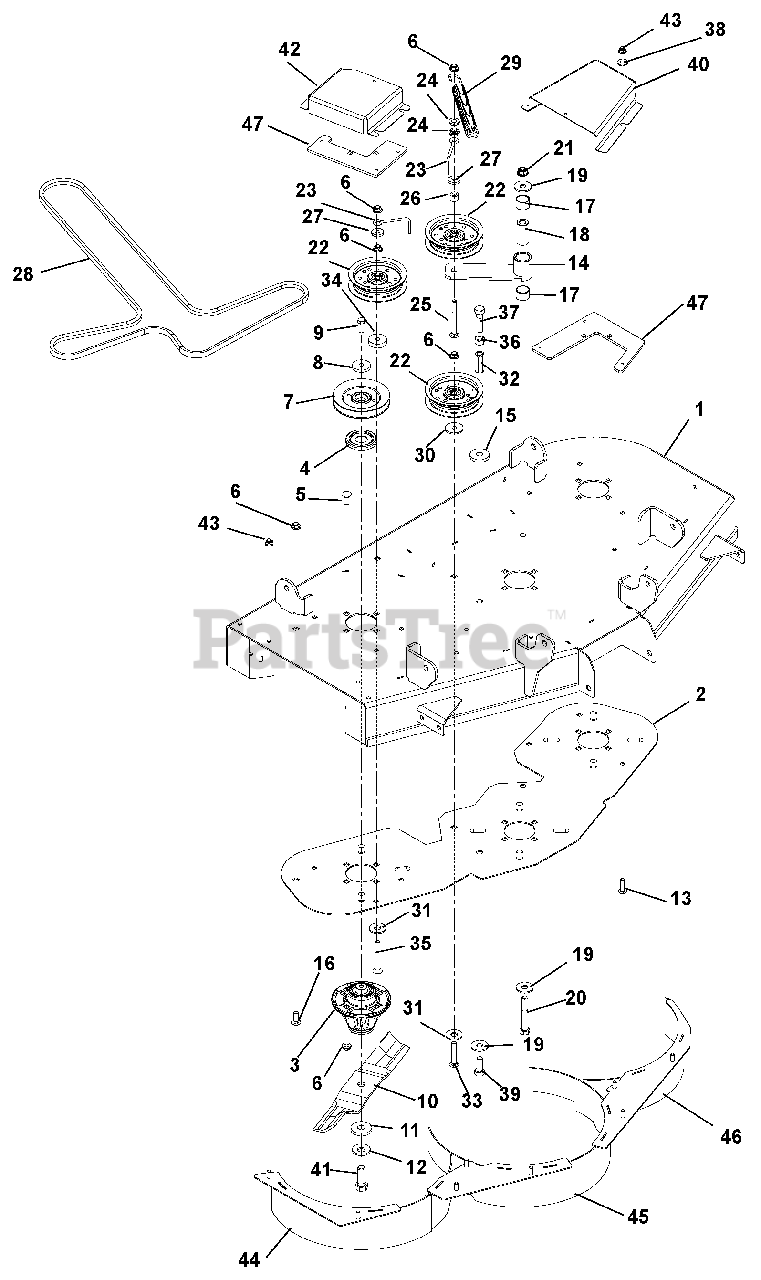

42" CE Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Gravely 51526000

XL – Deck Kit CE

$

$

Not available

2

Gravely 03273053

Doubler Plate, 42" Deck

$

$

Not available

3

Gravely 61543800

Spindle Assembly
(Superseded to 51510000)

$216.99

$

In Stock, Qty 12

0

4

Gravely 00587400

Dust Cap

$7.99

$

In Stock, only 3 left!

0

5

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

Gravely 06224200

Bolt, Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07330267

Pulley, Spindle

$52.99

$

In Stock, only 1 left!

0

8

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 03288600

Blade, Mulch 14.50"

$26.99

$

In Stock, only 1 left!

0

11

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

13

Gravely 07049500

Bolt, Serrated Hex Flange Washer Head .312-18 x .50

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 00652600

Idler Arm

$46.99

$

In Stock, only 1 left!

0

15

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .250 YZ

$5.99

$

In Stock, only 3 left!

0

16

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

17

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

18

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03 Promaster

$5.99

$

In Stock, Qty 20+

0

19

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

21

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

23

Gravely 00391900

Belt Finger

$20.99

$

In Stock, only 2 left!

0

24

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140

$9.49

$

In Stock, only 4 left!

0

25

Gravely 06222400

Bolt, Round Head Square Neck .38-16 x 3.50 Grade 5
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

26

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, only 1 left!

0

27

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 07219600

Belt, HA 127.12 Wrapped

$80.99

$

In Stock, only 3 left!

0

29

Gravely 08300020

Extension Spring

$26.99

$

In Stock, only 2 left!

0

30

Gravely 06441700

Washer, Flat Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

31

Gravely 04334053

Plate, Idler Mount Reinforcement

$23.99

$

Usually ships in 4-12 days

0

32

Gravely 06500013

Nut, Coupling .50-13 x 1.75

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06213400

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 01594000

Spacer, .39 x 1.50 x .380

$3.99

$

In Stock, only 1 left!

0

35

Gravely 06222400

Bolt, Round Head Square Neck .38-16 x 3.50 Grade 5
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

36

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 05959700

Bolt, Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

38

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

40

Gravely 04180553

Belt Cover, Left

$

$

Not available

41

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 04180653

Belt Cover, Right

$

$

Not available

43

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 03374853

Weldment, 42 Baffle Right Hand

$

$

Not available

45

Gravely 03374953

Weldment, 42 Mulch Baffle (CTR)

Note: (CTR)

$

$

Not available

46

Gravely 03375053

Weldment, 42 Mulch Baffle Left Hand

$

$

Not available

47

Gravely 04305951

Bracket, Belt Cover Mount - LHS

$44.99

$

Usually ships in 4-12 days

0

Gravely 04306051

Bracket, Belt Cover Mount - RHS

$27.99

$

Usually ships in 4-12 days

0
