915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 030000 - 034999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

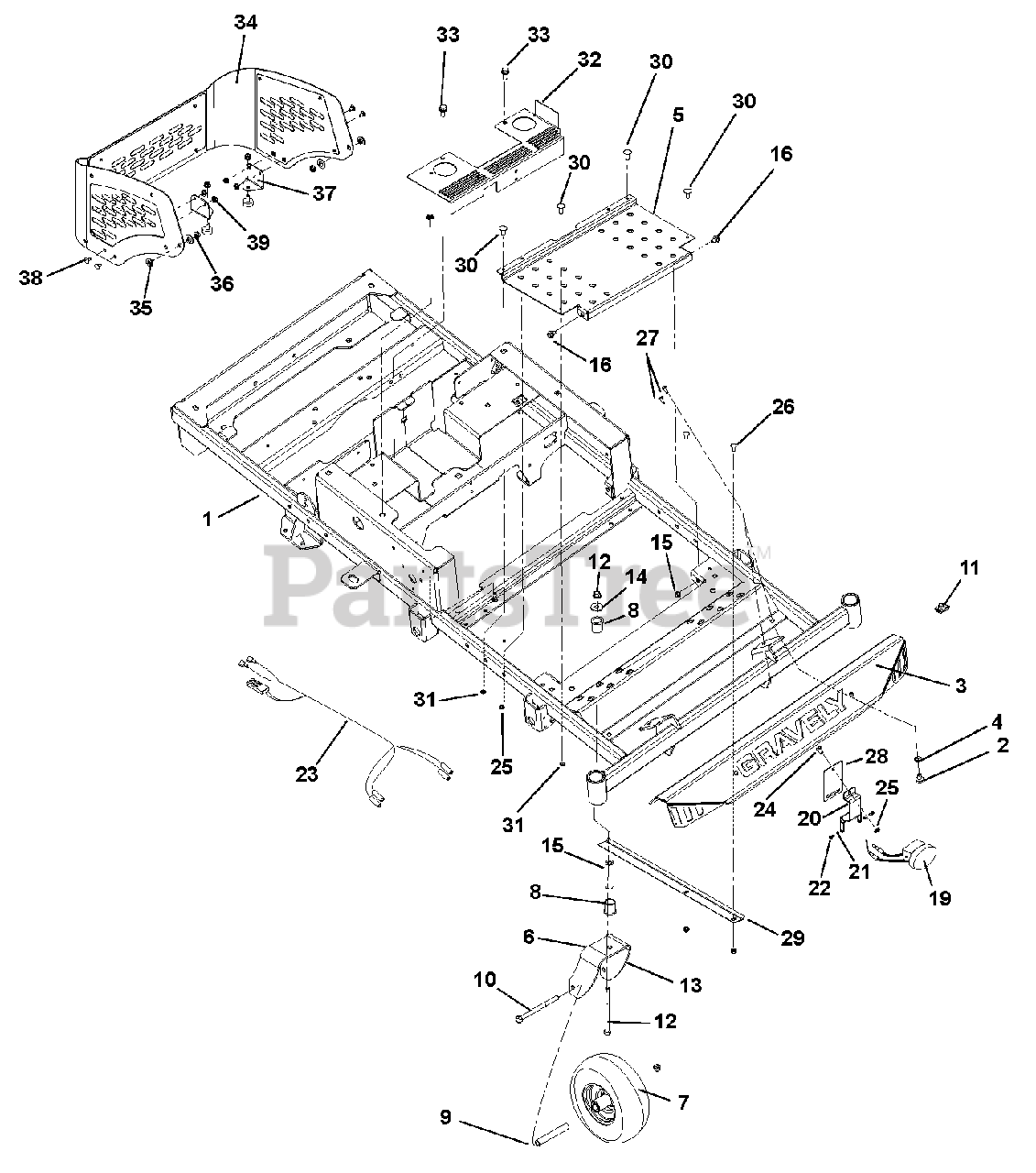

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 04559151

Weldment, Frame XL

$1739.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04718253

Weldment, Footrest

$193.99

$

Usually ships in 4-12 days

0

4

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 04186451

Deck Access Panel

$103.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

Fork, Caster

$72.99

$

In Stock, only 1 left!

0

7

Gravely 07100124

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0, Monitor

$74.99

$

In Stock, Qty 20+

0

8

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Rolled Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

12

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 03262200

Spacer, Caster Fork
(Superseded to 00363100)

$6.99

$

In Stock, only 4 left!

0

16

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

17

Gravely 06530400

Nut, Serrated Flange .31-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

19

Gravely 71513600

Kit, Zoom/ZT XL Light

$245.99

$

Usually ships in 4-12 days

0

20

Gravely 04728251

Bracket, Light

$21.99

$

Usually ships in 4-12 days

0

21

Gravely 06311200

Washer, Locking 4MM x 1MM Regular Cone Lock

$

$

Not available

22

Gravely 05980400

Screw, M4 x .07 x 8 Socket Head Cap

$1.99

$

In Stock, only 2 left!

0

23

Gravely 04730600

Harness, Mini-Z Headlight

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

Nut, Top Lock Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 04728351

Bracket, Light Mount

$

$

Not available

29

Gravely 03382551

Bracket, Light Harness

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06545400

Nut, Locking-Nylon-Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 04168351

Bracket, XL CE Fan Guard

$

$

Not available

33

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 51526700

Assembly, Engine Wrap XL

$171.99

$

Usually ships in 4-12 days

0

35

Gravely 05501127

Bushing, Flange .325 x .499 x .3 x .875

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06528700

Nut, Locking Center Flange .31-18
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 04717951

Bracket, XL Engine Wrap Foot

$

$

Not available

38

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06500710

Nut, Locking Center Flange .25-20
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0
