915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 020000 - 029999) Electrical System Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

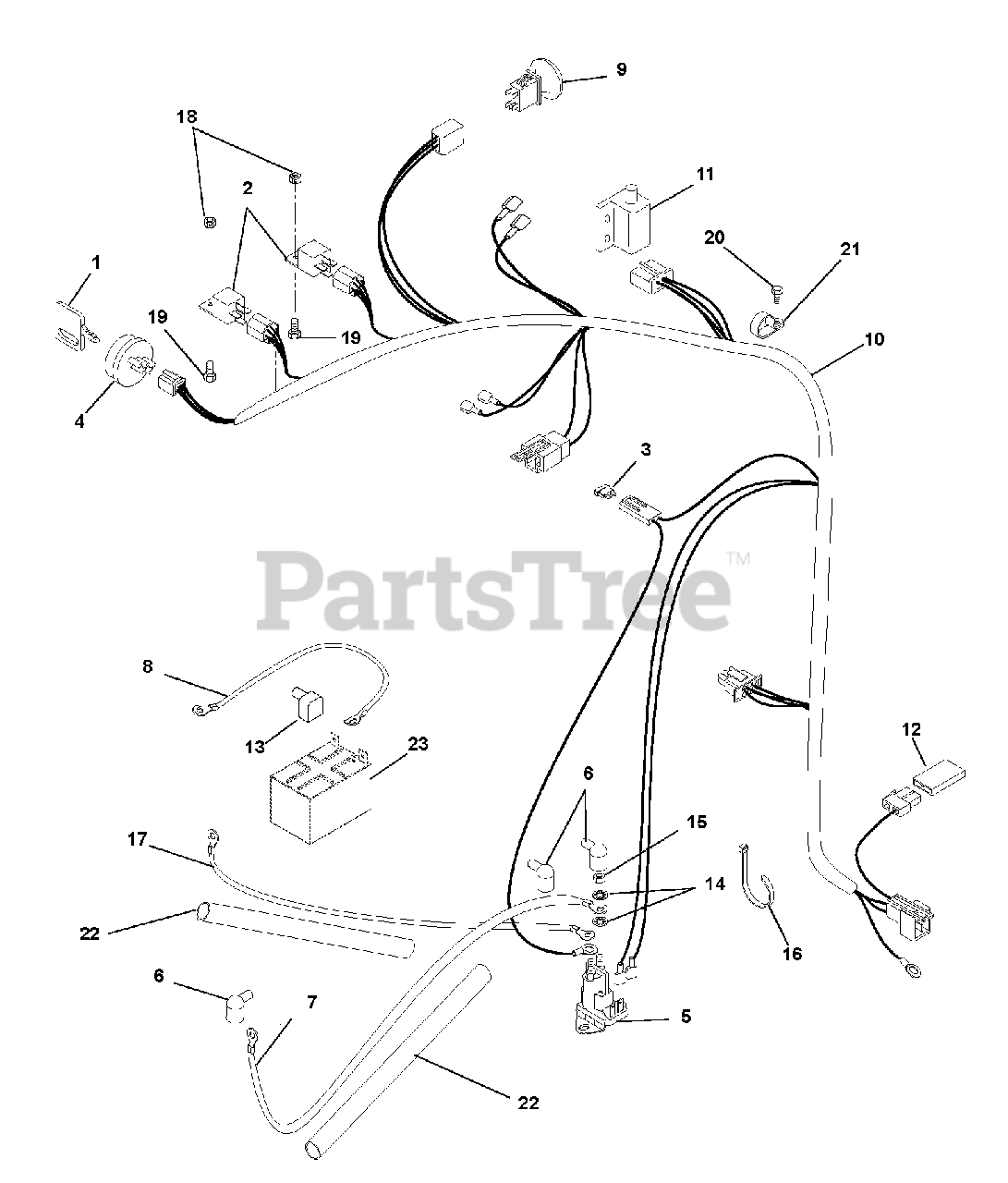

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 30 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

5

Gravely 00696900

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

7

Gravely 02974700

Starter Cable

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 03287100

Cable, Ground .25 x 13.00 x .31

$14.99

$

In Stock, only 1 left!

0

9

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

10

Gravely 02974500

Harness, ZTXL/ZoomXL

$214.99

$

Usually ships in 4-12 days

0

11

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$17.99

$

In Stock, only 1 left!

0

12

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

13

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

15

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

16

Gravely 07517300

Cable Tie

$

$

Not available

17

Gravely 02974800

Starter Cable

$17.99

$

In Stock, only 2 left!

0

18

Gravely 06536000

Nut, Locking Nylon With Insert 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06116900

Screw, Hex Washer Head Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

Gravely 07412900

Screw, Tapping Hex Washer Head Thread Rolling .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06900036

Clamp, Cushioned Steel .75

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 04189100

Sleeve, Anti-Abrasion

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 04591900

Battery, 12V, 215 CCA GEP
(Superseded to 04738800)

$122.99

$

In Stock, Qty 20+

0
