915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 062000 & Above) Seat and Seat Support Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

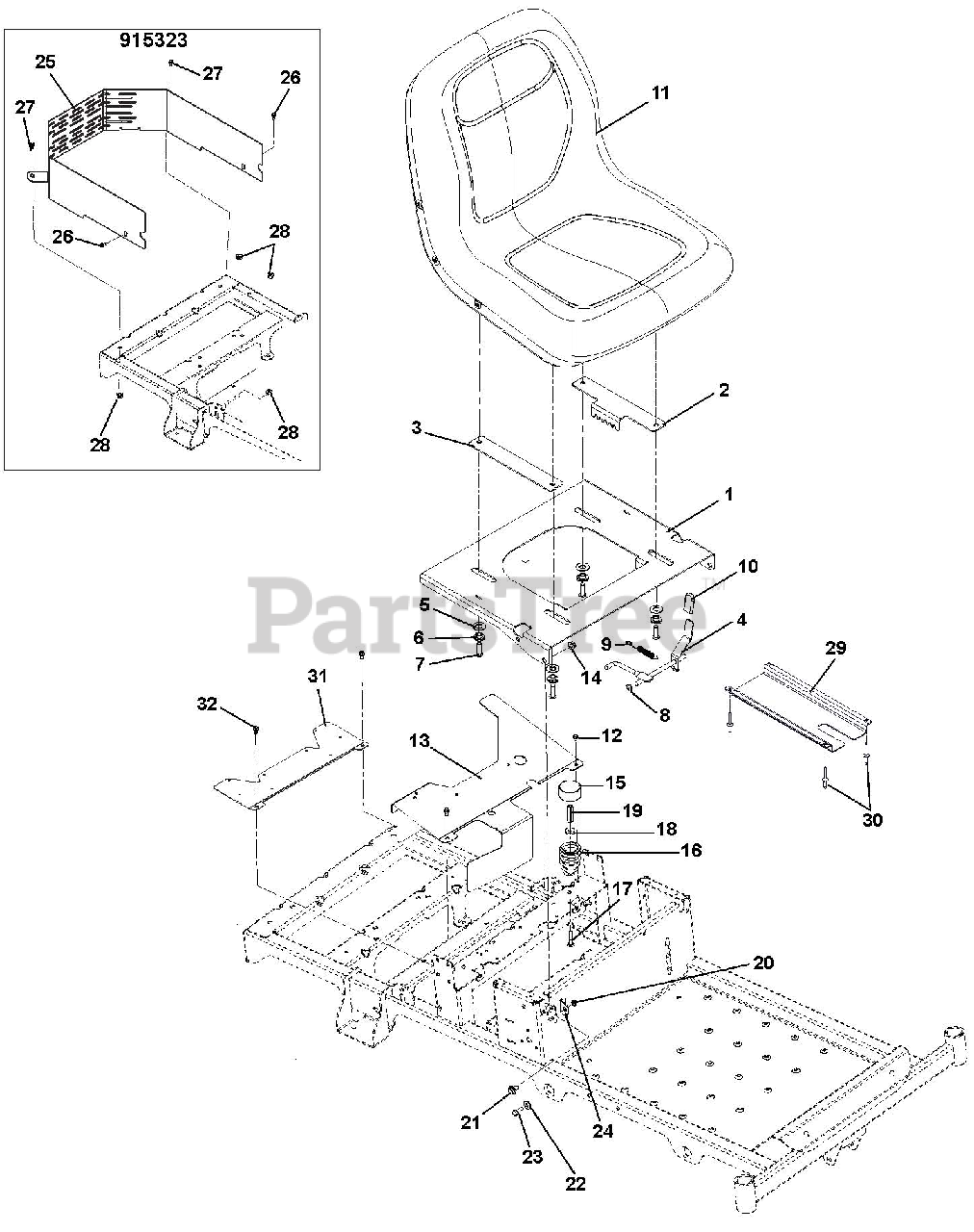

Seat and Seat Support Parts Diagram

  • Title

1

Ariens 04376251

PLATE, SEAT, ADJUSTABLE

$103.99

$

Usually ships in 4-12 days

0

2

Ariens 04376951

PLATE, ADJUSTABLE SEAT TRACK

$13.99

$

In Stock, only 1 left!

0

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 04377167

WLDMT, ADJUSTABLE SEAT LATCH

$

$

Not available

5

Ariens 06401112

WSHR, FLT .505X1.00X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 1 left!

0

7

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

9

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

10

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

11

Ariens 04278000

SEAT, MILSCO XB180 GRAY
(Superseded to 51521700)

$

$

Not available

12

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 04305351

COVER, ZOOM CE FAN

$

$

Not available

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

16

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 1 left!

0

19

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$3.99

$

In Stock, only 1 left!

0

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

22

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 1 left!

0

23

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03798751

BRKT, SEAT STOP

$64.99

$

Usually ships in 4-12 days

0

25

Ariens 05089651

SHIELD, ZOOM REAR ENGINE

$99.99

$

Usually ships in 4-12 days

0

26

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05139151

GUARD, SEAT SWITCH

$37.99

$

Usually ships in 4-12 days

0

30

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available

31

Ariens 51534500

KIT, FAN GUARD W/DECAL

$55.99

$

Usually ships in 4-12 days

0

32

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
