915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 045000 - 061999) Belt Covers And Blades Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

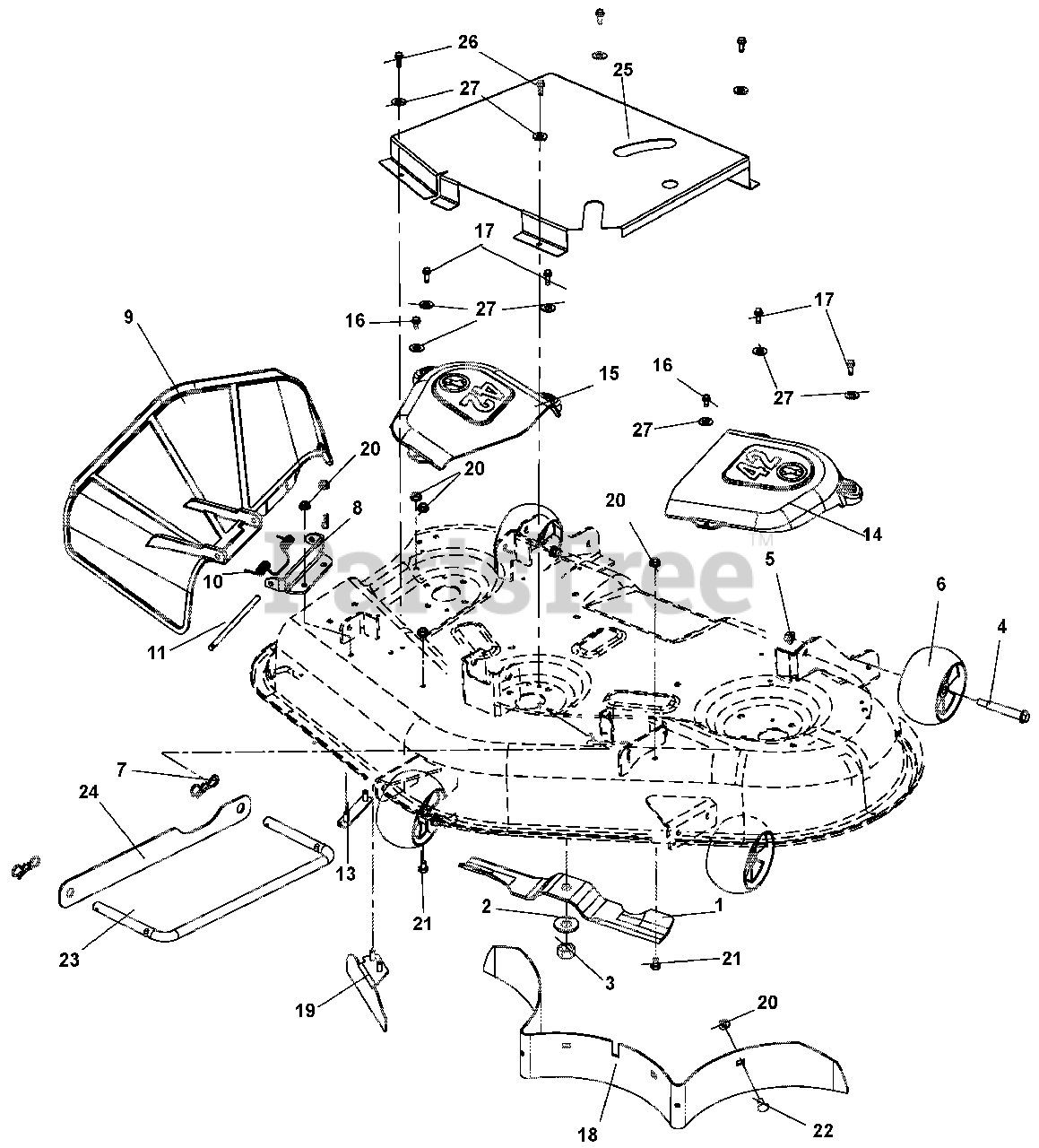

Belt Covers And Blades Parts Diagram

  • Title
1

Ariens 04265400

BLADE, MOWER 14.83 (.188 THK)

$25.99

$

In Stock, Qty 20+

0

2

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0

3

Ariens 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 03905600

ANTI-SCALP WHEEL - 5X OS

$15.99

$

In Stock, Qty 20+

0

7

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 04073059

BRKT-DISCHARGE CHUTE MOUNT 42"

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 04375900

CHUTE, DISCHARGE - MOLDED

$86.99

$

In Stock, only 1 left!

0

10

Ariens 08300515

SPRING-TORSION

$34.99

$

In Stock, only 1 left!

0

11

Ariens 00475800

PIN, 5/16 X 5.80"

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03977400

WMT-DISCHARGE CHUTE MT. STRAP

$

$

Not available

14

Ariens 03902200

BELT COVER - LH 42"

$28.99

$

In Stock, Qty 20+

0

15

Ariens 03902100

BELT COVER - RH 42"

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

18

Ariens 03957859

BAFFLE, REAR (42)

$71.99

$

Usually ships in 4-12 days

0

19

Ariens 04395459

WLDMT-BAFFLE, DISCHARGE 42"

$69.99

$

In Stock, only 1 left!

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

22

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 04377667

WIREFORM, DRAG LINK
(Superseded to 04377600)

$23.99

$

In Stock, only 1 left!

0

24

Ariens 04424951

STRAP, DRAG LINK
(Superseded to 04424967)

$20.99

$

In Stock, only 1 left!

0

25

Ariens 04847351

GUARD, 42" ZOOM/ZT CE BELT

$

$

Not available

26

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

27

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0
