915321 (1842) - Ariens Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 040000 - 044999) 42" CE Mower Deck, Belt, Idlers And Blades Parts Diagram

Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton

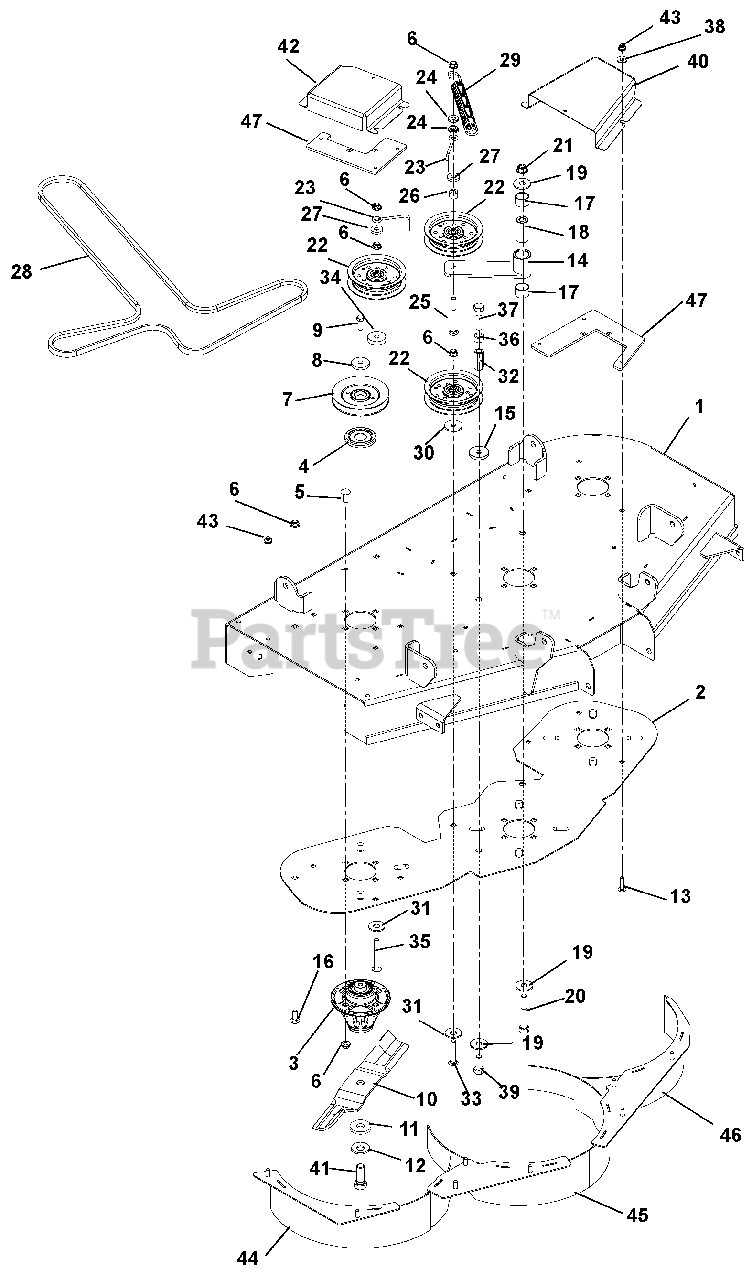

42" CE Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Ariens 51526000

XL-42 DECK KIT WITH DECALS

$

$

Not available

2

Ariens 03273059

DOUBLER PLATE, 42 XL

$86.03

$

Usually ships in 4-12 days

0

3

Ariens 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$216.99

$

In Stock, Qty 12

0

4

Ariens 00587400

DUST CAP

$7.99

$

In Stock, only 3 left!

0

5

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

5

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

6

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07330267

PULLEY, SPINDLE

$52.99

$

In Stock, only 1 left!

0

8

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 03288600

BLADE, MULCH 14.50"

$26.99

$

In Stock, only 1 left!

0

11

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

12

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

13

Ariens 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 00652600

WELDMENT, IDLER ARM

$46.99

$

In Stock, only 1 left!

0

15

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

16

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

17

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

18

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

19

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

20

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

21

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

23

Ariens 00391900

BELT FINGER

$20.99

$

In Stock, only 2 left!

0

24

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

25

Ariens 06222400

@BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

26

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

27

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

28

Ariens 07219600

V-BELT, HA-WRAPPED

$80.99

$

In Stock, only 3 left!

0

29

Ariens 08300020

EXTENSION SPRING

$26.99

$

In Stock, only 2 left!

0

30

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

31

Ariens 04334059

PLATE,IDLER MNT REINFORCEMENT

$23.99

$

Usually ships in 4-12 days

0

32

Ariens 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

34

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

35

Ariens 06222400

@BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.49

$

In Stock, only 1 left!

0

36

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 05959700

@BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

38

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

40

Ariens 04180559

BELT COVER, LEFT

$

$

Not available

41

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

42

Ariens 04180659

BELT COVER, RIGHT

$102.99

$

Usually ships in 4-12 days

0

43

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 03374859

WMT, 42 MULCH BAFFLE (RH)
(Superseded to 03374851)

$90.99

$

Usually ships in 4-12 days

0

45

Ariens 03374959

WMT, 42 MULCH BAFFLE (CTR)

Note: (CTR)

$

$

Not available

46

Ariens 03375059

WMT, 42 MULCH BAFFLE (LH)

$

$

Not available

47

Ariens 04305951

BRKT, BELT COVER MOUNT - LHS

$44.99

$

Usually ships in 4-12 days

0

47

Ariens 04306051

BRKT, BELT COVER MOUNT - RHS

$27.99

$

Usually ships in 4-12 days

0
