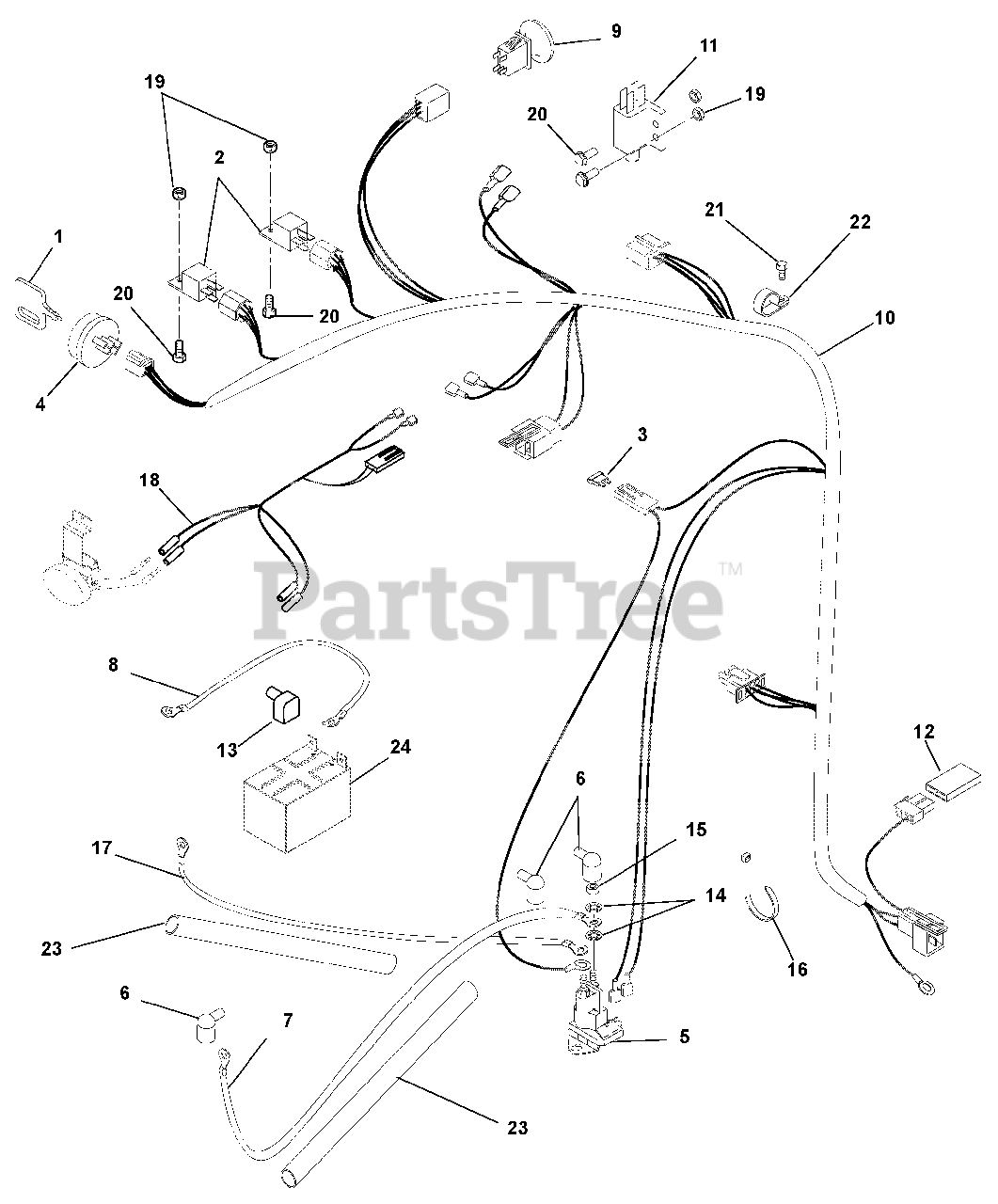

915321 (1842) - Ariens Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 035000 - 039999) Electrical System Parts Diagram

Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton

Electrical System Parts Diagram

  • Title
1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Ariens 01588300

KEY SWITCH

$30.99

$

Usually ships in 4-12 days

0

5

Ariens 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

7

Ariens 02974700

STARTER CABLE

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 03287100

CABLE-GROUND .25 X 13.00 X .31

$14.99

$

In Stock, only 1 left!

0

9

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

10

Ariens 02974500

HARNESS, ZTXL/ZOOMXL

$214.99

$

Usually ships in 4-12 days

0

11

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

12

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, Qty 5

0

13

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

14

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

15

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

16

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

17

Ariens 02974800

POSITIVE CABLE

$17.99

$

In Stock, only 2 left!

0

18

Ariens 04730600

HARNESS, XL HEADLIGHT

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

21

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 04189100

SLEEVE, ANTI-ABRASION

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 04591900

BATTERY, 12V; 215 CCA GEP
(Superseded to 04738800)

$122.99

$

In Stock, Qty 20+

0
