915321 (1842) - Ariens Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 010000 - 019999) Seat and Seat Support Parts Diagram

Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton

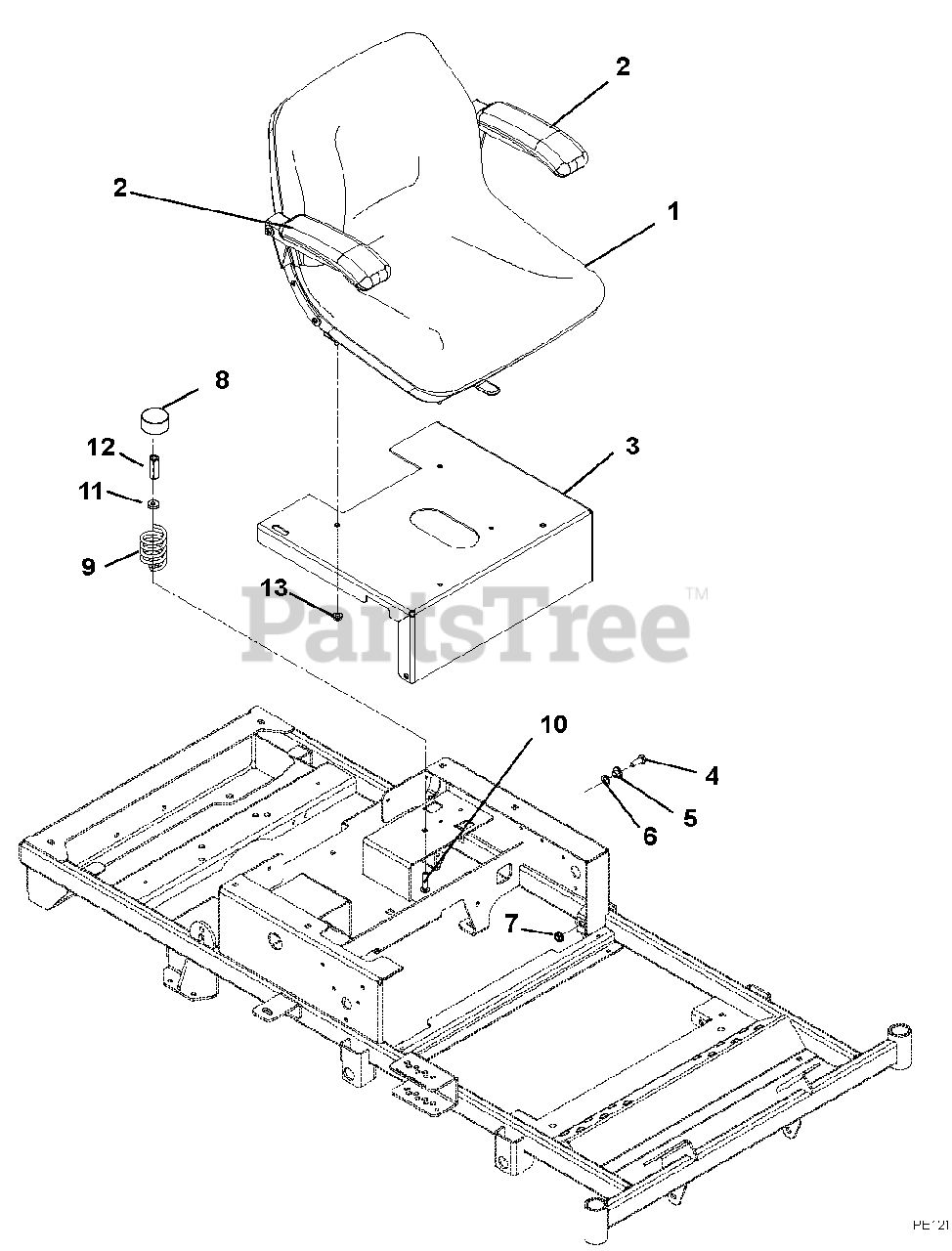

Seat and Seat Support Parts Diagram

  • Title

1

Ariens 03829400

SEAT, MILSCO XB-180

$439.99

$

In Stock, only 2 left!

0

2

Ariens 71600500

KIT, SEAT ARM RESTS

$206.99

$

Usually ships in 4-12 days

0

3

Ariens 03836051

SEAT PLATE

$144.99

$

In Stock, only 1 left!

0

4

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

9

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

11

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

12

Ariens 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

13

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
