915320 (1840) - Ariens Zoom 40" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Seat And Seat Support Parts Diagram

Zoom 40" Zero-Turn Mower, 18hp Briggs & Stratton

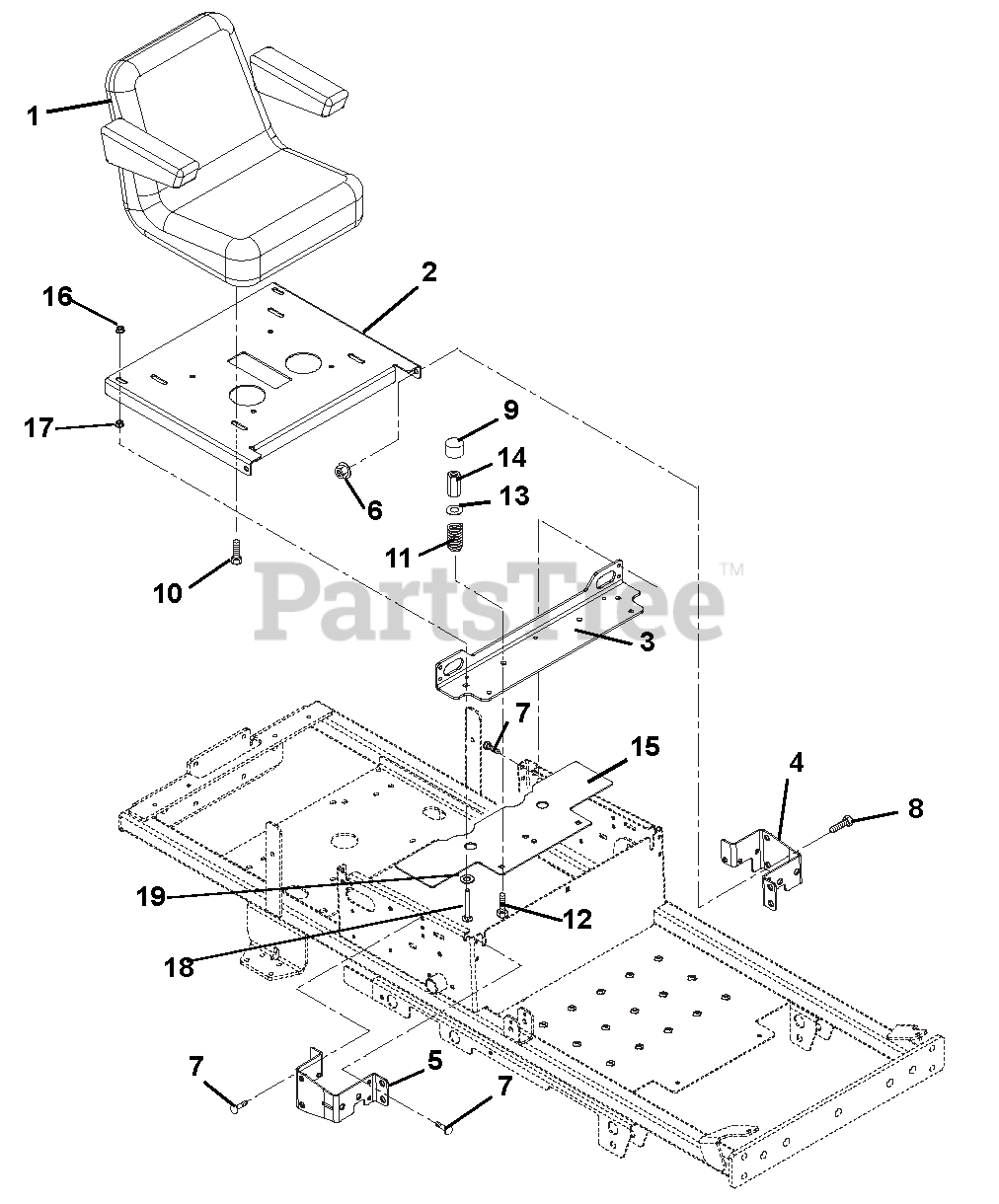

Seat And Seat Support Parts Diagram

  • Title

1

Ariens 02964800

SEAT, 1008 W/ARMREST SEATS INC

Note: Armrest Pad Only: 00090951, Armrest Assembly: 00090952

$

$

Not available

2

Ariens 03369351

SEAT PLATE

$

$

Not available

3

Ariens 00478351

BRKT, SEAT SPRING

$

$

Not available

4

Ariens 00503300

WDMT, RH STEERING STOP

$

$

Not available

5

Ariens 00503400

WDMT, LH STEERING STOP

$

$

Not available

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

9

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

10

Ariens 05900033

5/16-18X3/4 HX/W/HD WHIZ
(Superseded to 07001820)

$

$

Not available

11

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

13

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

14

Ariens 06500015

NUT, COUPLING 5/16-18 X 1 3/4
(Superseded to 06500927)

$3.99

$

In Stock, only 1 left!

0

15

Ariens 00676551

GUARD, ZOOM FINGER

Note: (Model 915319, Serial #101-250)(Model 915320, Serial#101-187)

$

$

Not available

15

Ariens 04189051

BRKT, REAR FAN GUARD-CE ZOOM

Note: (Model 915319, Serial#250-)(Model 915320 Serial#188-)

$

$

Not available

16

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (Model 915319, Serial#101-250)(Model 915320, Serial#101-187)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (Model 915319, Serial#101-250)(Model 915320, Serial#101-187)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06221300

@BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

Note: (Model 915319, Serial#101-250)(Model 915320, Serial#101-187)

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

Note: (Model 915319 Serial#101-250)(Model 915320 Serial#101-187)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 04189751

BRKT, SIDE FINGER GUARD - ZOOM

$

$

Not available

21

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

Note: (Model 915319 Serial#251-, Model 915320 Serial##188-)

$2.49

$

In Stock, only 3 left!

0
