915320 (1840) - Ariens Zoom 40" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Zoom 40" Zero-Turn Mower, 18hp Briggs & Stratton

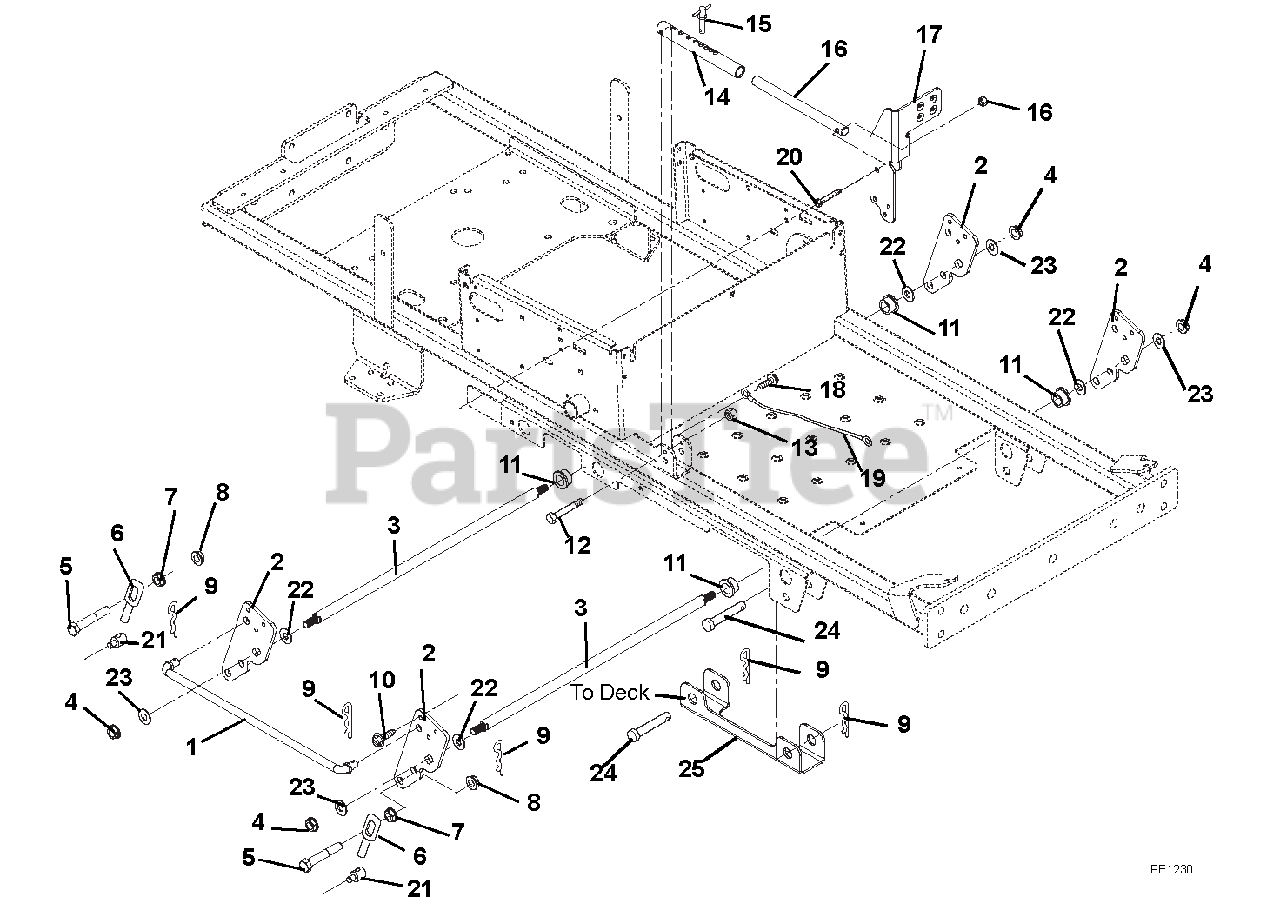

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 00279900

ROD,LIFT

$

$

Not available

2

Ariens 00279800

LIFT ARM

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 00502600

SHAFT, LIFT

$

$

Not available

4

Ariens 06500400

NUT-HEX .250-28 YWZC

$1.99

$

Usually ships in 4-12 days

0

5

Ariens 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 00160000

DECK LINK
(Superseded to 03967600)

$34.99

$

In Stock, only 3 left!

0

7

Ariens 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 9

0

12

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00347800

TUBE,LIFT STOP

$

$

Not available

15

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

In Stock, only 1 left!

0

16

Ariens 00347700

ROD,LIFT

$45.99

$

Usually ships in 4-12 days

0

17

Ariens 00279551

PEDAL,FOOT LIFT

$20.99

$

Usually ships in 4-12 days

0

18

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06927100

CBL,HOOD

$14.99

$

In Stock, only 1 left!

0

20

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 01590400

TRUNNION-.50

$48.99

$

In Stock, only 4 left!

0

22

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

23

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 6

0

24

Ariens 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, only 2 left!

0

25

Ariens 00484700

CHANNEL, DECK LIFT
(Superseded to 00484751)

$34.99

$

In Stock, only 1 left!

0
