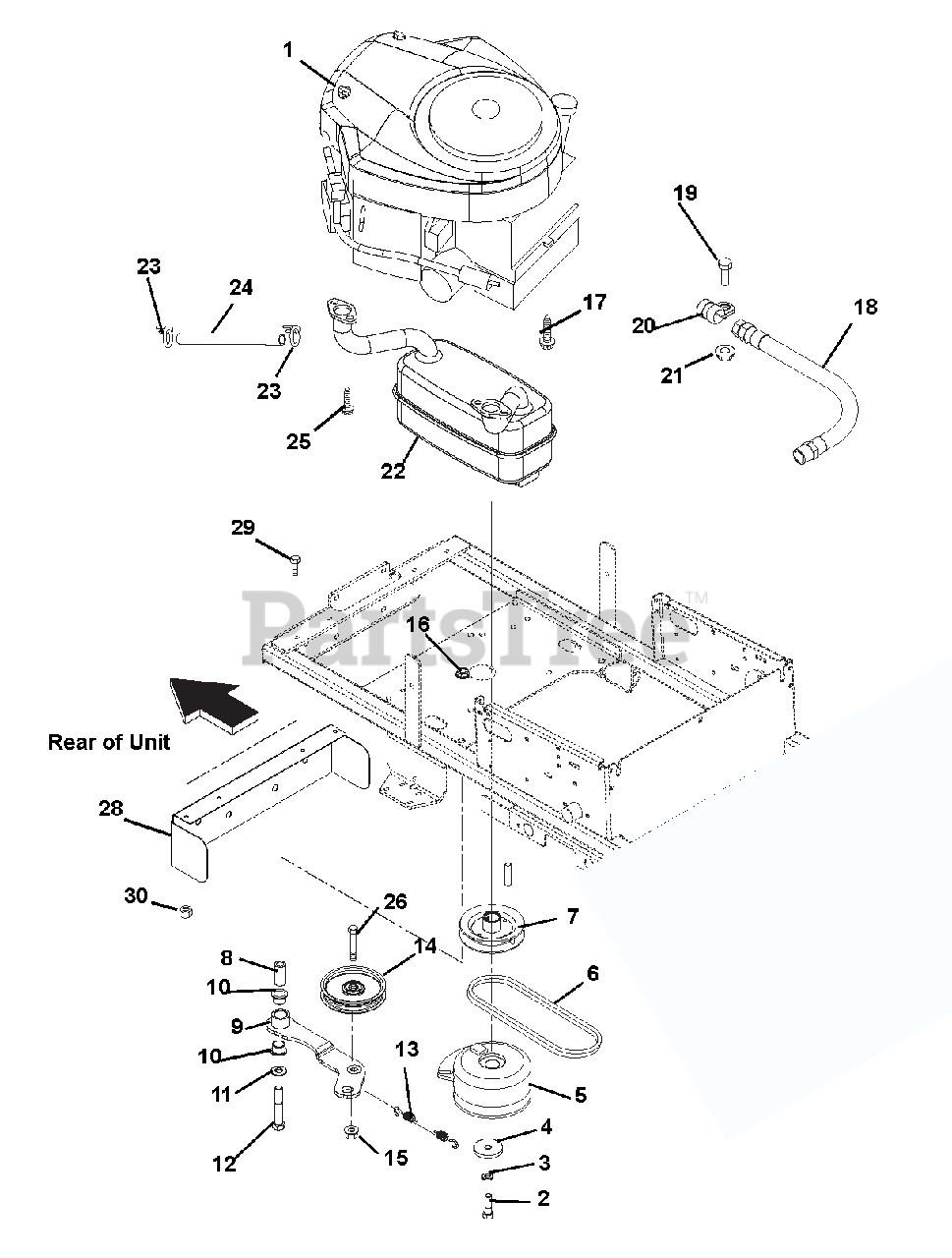

915320 (1840) - Ariens Zoom 40" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 40" Zero-Turn Mower, 18hp Briggs & Stratton

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 08200339

ENGINE, 16HP V-TWIN CE

Note: (319)

$

$

Not available

Ariens 08200340

ENGINE, 18HP V-TWIN CE

Note: (320)

$

$

Not available

2

Ariens 05900026

7/16-20X3 HHCS GR8 YWZC

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

4

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

5

Ariens 00617400

RMS CLUTCH, ELECTRIC
(Superseded to 03292300)

$374.99

$

Usually ships in 4-12 days

0

6

Ariens 07237900

V-BELT, HA-WRAPPED

$50.99

$

In Stock, only 2 left!

0

7

Ariens 07300430

PLY-V 3.75X1.0 A SECTION W/KEY

$103.99

$

Usually ships in 4-12 days

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

9

Ariens 00604000

WMT, IDLER

$103.99

$

In Stock, only 1 left!

0

10

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.49

$

In Stock, only 2 left!

0

11

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

14

Ariens 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, Qty 20+

0

15

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

18

Ariens 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$50.99

$

Usually ships in 4-12 days

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 02997300

MUFFLER - TWIN BRIGGS
(Superseded to 09391900)

$

$

Not available

23

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

24

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

26

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

27

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

28

Ariens 03367651

GUARD, MUFFLER

$

$

Not available

29

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0
