915315 (1232) - Ariens Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 010000 & Above) Engine, Belts And Idlers Parts Diagram

Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton

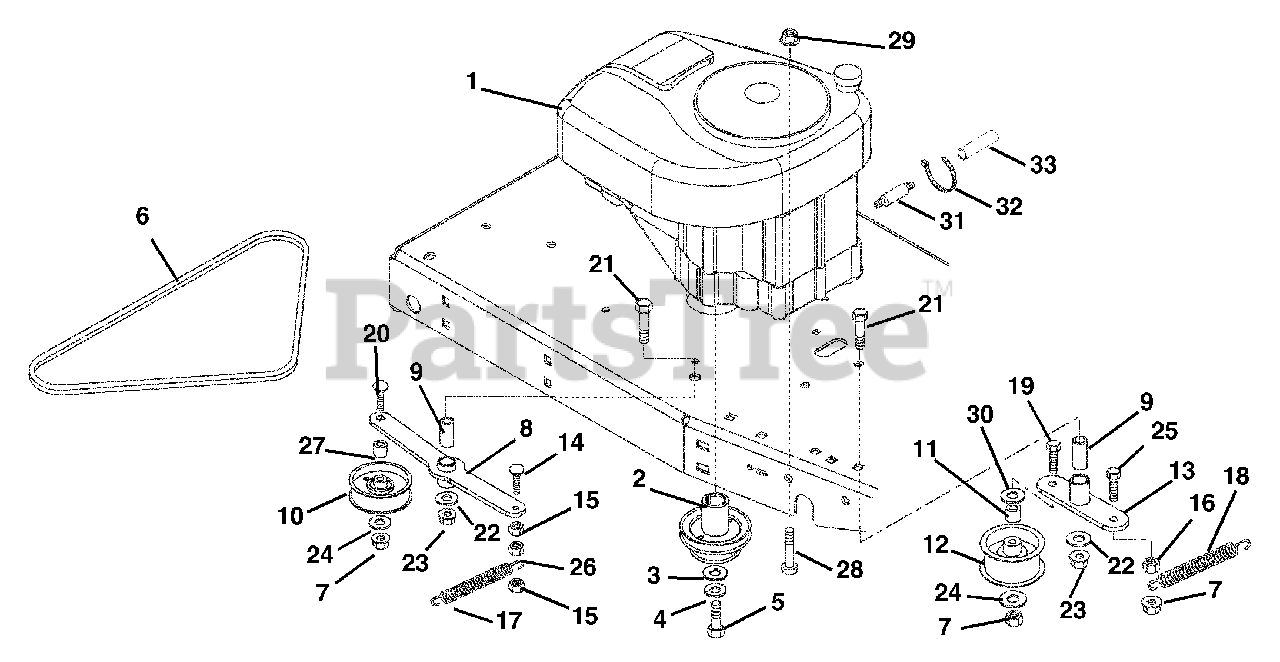

Engine, Belts And Idlers Parts Diagram

  • Title

1

Ariens 51509800

ENGINE GROUP-12 HP

Note: (08200001) (031, 309)

$

$

Not available

Ariens 51509900

ENGINE GROUP-14 HP

Note: (08268600) (033)

$

$

Not available

2

Ariens 01594900

ENGINE-SHEAVE

Note: (031, 309)

$

$

Not available

Ariens 01602400

ENGINE-SHEAVE, 40" SPORT-Z

Note: (033)

$

$

Not available

3

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

5

Ariens 05965600

BLT-HEX .44-20X1.50 GR5 YWZC
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

6

Ariens 07223800

V-BELT, HA-RAW EDGE

$28.99

$

In Stock, only 2 left!

0

7

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01599000

WLDM'T-IDLER (IZT)

$

$

Not available

9

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

10

Ariens 07320700

IDLER-PLY FLAT 3.25 X .38 X1.0

$34.99

$

In Stock, only 1 left!

0

11

Ariens 01591000

BSHG-SPCR .41X75X.69

$15.99

$

In Stock, only 2 left!

0

12

Ariens 07318400

IDLER 2.75X1.25

$22.99

$

In Stock, only 1 left!

0

13

Ariens 01598900

BRKT, IDLER (WLDMNT)

$56.99

$

Usually ships in 4-12 days

0

14

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06535100

NUT-LK ESNA THIN .50-13 YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 08327600

SG-TENS .075X.75X2.25 WLD20.7

$17.99

$

In Stock, only 1 left!

0

18

Ariens 08311000

SG-TENS .080X.687X5.16 WLD 28

$14.99

$

In Stock, only 1 left!

0

19

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

20

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

21

Ariens 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

22

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

23

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

28

Ariens 05972700

SCR-SKH BTHD .31-18 X 1.50 GR8

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

Note: (030, 309)

$

$

Not available

31

Ariens 07067800

VALVE, OIL DRAIN

$38.99

$

Usually ships in 4-12 days

0

32

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

33

Ariens 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$5.99

$

Usually ships in 4-12 days

0
