915311 (1844) - Ariens Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Steering Controls Parts Diagram

Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton

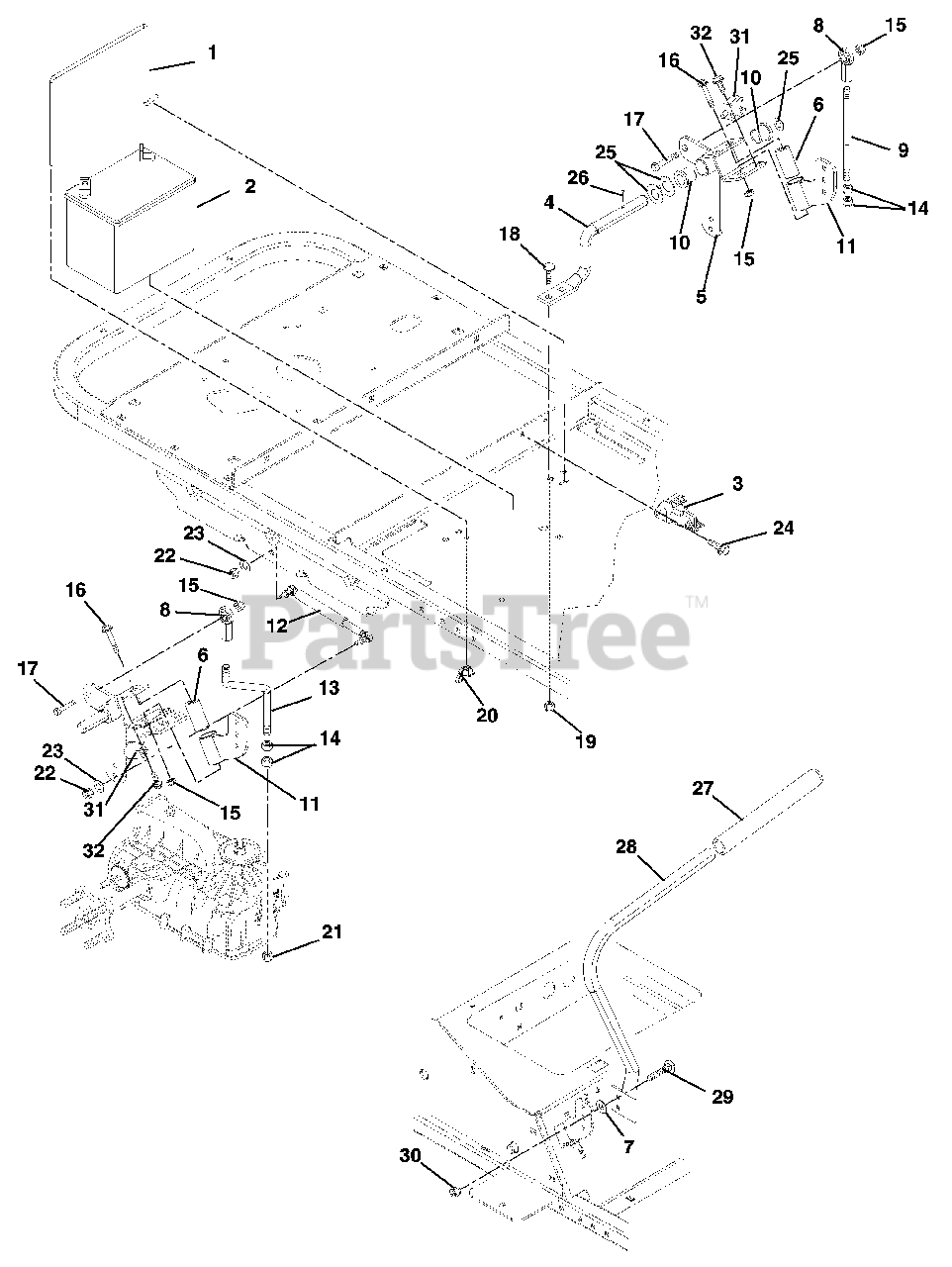

Steering Controls Parts Diagram

  • Title

1

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 01554800

BATTERY, 300 CCA 10U1L

Note: (12 Volt, 330 CCA, 50 Min. Reserve Cap.) (035, 037, 039, 041)

$

$

Not available

2

Ariens 03621100

BATTERY W/ TUBE

Note: (313, 501)

$

$

Not available

3

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

4

Ariens 01581800

ROD PIVOT

$

$

Not available

5

Ariens 01604300

WMT, CONTROL

$75.99

$

In Stock, only 1 left!

0

6

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

7

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 03461700

ROD END, 1/2 RH

$

$

Not available

9

Ariens 01569600

ROD-TRANSAXLE LH

$77.99

$

Usually ships in 4-12 days

0

10

Ariens 01591100

BUSHING-1"X.75"X1"

$

$

Not available

11

Ariens 01604400

WMT, HANDLEBAR

$

$

Not available

12

Ariens 01589300

DAMPENER

$113.99

$

In Stock, only 1 left!

0

13

Ariens 01569500

ROD-TRANSAXLE RH

$75.99

$

In Stock, only 2 left!

0

14

Ariens 06539500

NUT-JAM .50-20 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

17

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

18

Ariens 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

19

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

21

Ariens 06544000

NUT-LK-JAM-NYL .50-20 GR2 YWZC
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 06538600

NUT-HEX M8-1.25 YWZC

$

$

Not available

23

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

26

Ariens 05802100

PIN-ROLL .188X1.13

$1.99

$

Usually ships in 4-12 days

0

27

Ariens 07534500

GRIP - HANDLEBAR

$27.99

$

In Stock, only 2 left!

0

28

Ariens 01598551

HANDLEBAR WLDM'T RH

$

$

Not available

28

Ariens 01598651

HANDLEBAR WLDM'T LH

$79.99

$

Usually ships in 4-12 days

0

29

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

32

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0
