915311 (1844) - Ariens Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton

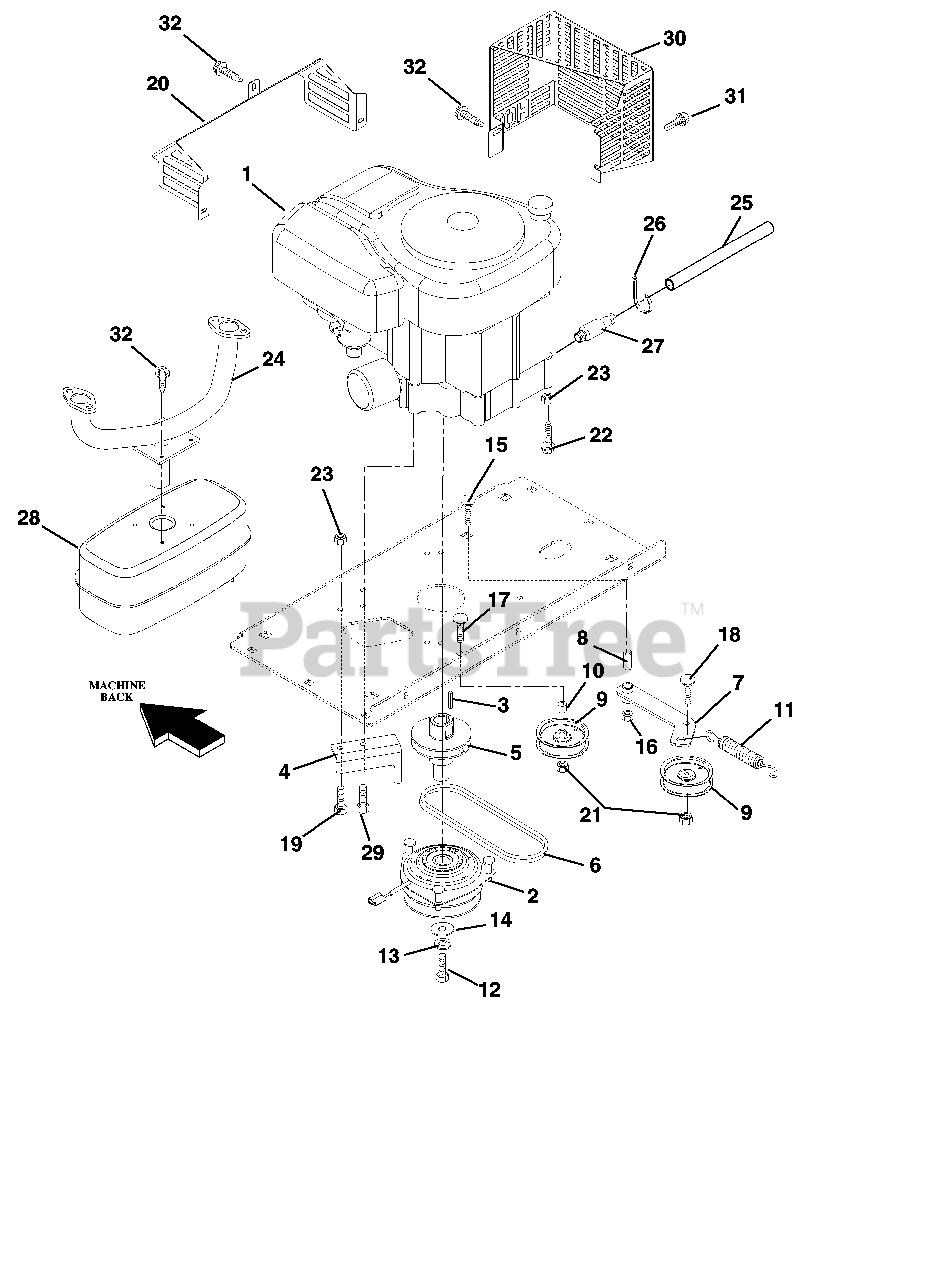

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 51508300

ENGINE GROUP - 16HP

Note: (035)

$

$

Not available

1

Ariens 51508400

ENGINE GROUP - 18HP

Note: (037)

$

$

Not available

1

Ariens 51508500

ENGINE GROUP - 20HP

Note: (039)

$

$

Not available

1

Ariens 51508600

ENGINE GROUP - 22HP

Note: (041, 313)

$

$

Not available

1

Ariens 51510200

ENGINE GROUP - 18HP

Note: (501)

$

$

Not available

2

Ariens 04915400

CLUTCH, ELECTRIC

$465.99

$

In Stock, only 2 left!

0

3

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 01577851

CLUTCH STOP

$37.99

$

Usually ships in 4-12 days

0

5

Ariens 01602500

EXTENSION SHAFT
(Superseded to 00363200)

$323.99

$

Usually ships in 4-12 days

0

6

Ariens 07241400

BELT,HA WRAPPED

$52.99

$

In Stock, only 1 left!

0

7

Ariens 01589600

IDLER-TRANSAXLE

$

$

Not available

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 4 left!

0

9

Ariens 07327100

PULLEY, IDLER 4.00

$37.99

$

In Stock, Qty 16

0

10

Ariens 01591000

BSHG-SPCR .41X75X.69

$15.99

$

In Stock, only 2 left!

0

11

Ariens 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

12

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

13

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

15

Ariens 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

18

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (035, 037)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (039, 041, 313, 501)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01596800

MUFFLER GUARD, 40CI

Note: (039, 041, 313, 501)

$

$

Not available

21

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (035, 037)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (039, 041, 313, 501)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01590800

PIPE, EXHAUST

Note: (039, 041, 313, 501)

$

$

Not available

25

Ariens 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

27

Ariens 07067800

VALVE, OIL DRAIN

$38.99

$

Usually ships in 4-12 days

0

28

Ariens 03654300

MUFFLER - EXHAUST

Note: (039, 041, 313, 501)

$157.99

$

In Stock, only 2 left!

0

29

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

30

Ariens 01596700

MUFFLER GUARD, 31CI

Note: (035, 037)

$

$

Not available

31

Ariens 07049500

BLT-SERHFWH .312-18X.50 YWZC

Note: (035, 037)

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (039, 041, 313, 501)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (035, 037)

$0.99

$

In Stock, Qty 20+

0
