915309 (1232) - Ariens Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 010000 & Above) Gas Tank Parts Diagram

Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton

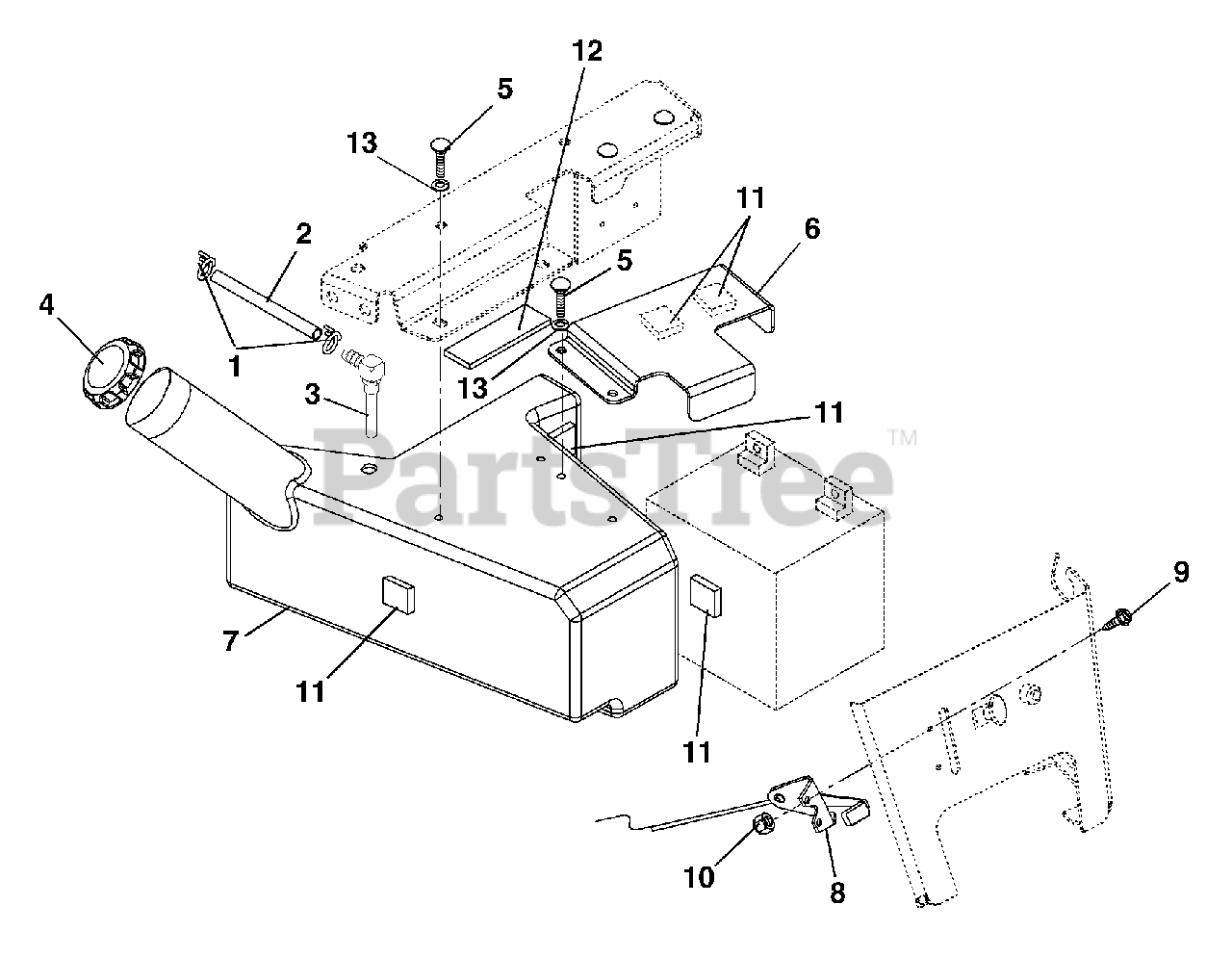

Gas Tank Parts Diagram

  • Title

1

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

2

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03606500

TANK FITTING

$

$

Not available

4

Ariens 01538400

FUEL CAP

$15.99

$

Usually ships in 4-12 days

0

5

Ariens 07049400

BLT-SERHFWH .25-20X.75 YWZC

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 02771351

BRACKET-BATTERY

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 02765100

TANK-FUEL

$

$

Not available

8

Ariens 01588600

THROTTLE CABLE

$64.99

$

Usually ships in 4-12 days

0

9

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

12

Ariens 00932300

VHB TAPE 4941F

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
