915305 (EZR 1648) - Ariens 48" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

48" Zero-Turn Mower, 15hp Briggs & Stratton

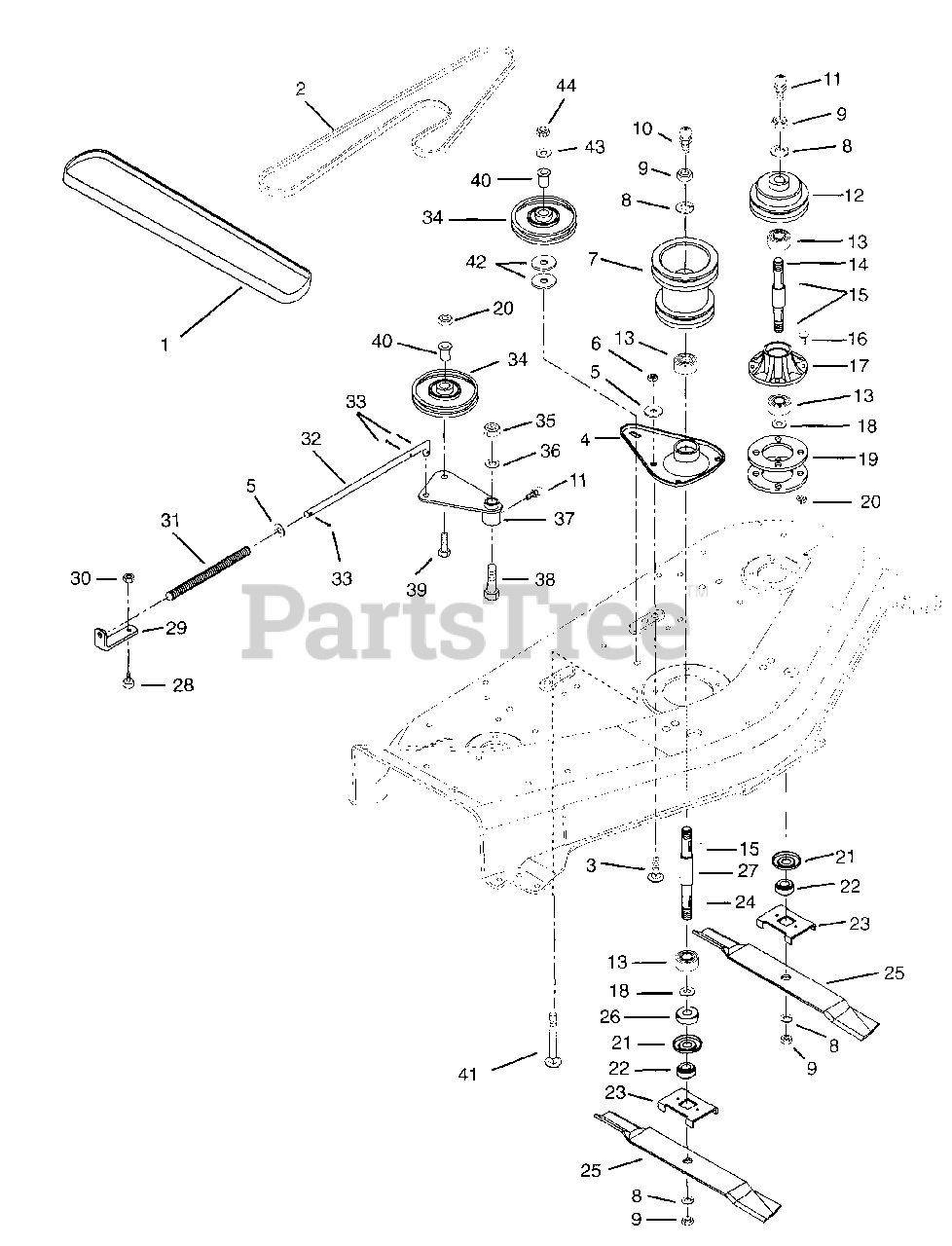

48" Mower Spindle Parts Diagram

  • Title

1

Ariens 07234500

V-BELT, HA-WRAPPED

$39.99

$

In Stock, only 1 left!

0

2

Ariens 07234400

V-BELT, HA-RAW EDGE

$96.99

$

In Stock, only 3 left!

0

3

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

4

Ariens 03434900

HOUSING,SPINDLE

$

$

Not available

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01543300

SHEAVE, 48" DECK

$262.99

$

Usually ships in 4-12 days

0

8

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

10

Ariens 07012500

FTG,LUBE 1/8

$3.99

$

In Stock, only 1 left!

0

11

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

12

Ariens 03401800

SHEAVE

$187.99

$

Usually ships in 4-12 days

0

13

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

14

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

15

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

16

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

18

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

19

Ariens 03433600

SPACER, SPINDLE

$

$

Not available

20

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

22

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

23

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

24

Ariens 06601700

KEY-SQ .188X.625X.188 SAE 61

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 03123759

BLADE
(Superseded to 03123700)

$23.99

$

Usually ships in 4-12 days

0

26

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

27

Ariens 53402400

SPINDLE SHAFT W/ZERK & KEY

$79.99

$

In Stock, only 1 left!

0

28

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

29

Ariens 03418800

BRACKET
(Superseded to 03418851)

$77.99

$

Usually ships in 4-12 days

0

30

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

$14.99

$

Usually ships in 4-12 days

0

32

Ariens 03433900

ROD-IDLER SPRING

$96.99

$

Usually ships in 4-12 days

0

33

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

34

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$37.99

$

In Stock, only 1 left!

0

35

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

36

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 53401000

IDLER ARM W/ZERK

$102.99

$

In Stock, Qty 6

0

38

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

39

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

41

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, only 4 left!

0

42

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

43

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0
