915304 (EZR 1540) - Ariens 40" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 000101 & Above) Seat, Support & Fuel Tank Parts Diagram

40" Zero-Turn Mower, 15hp Briggs & Stratton

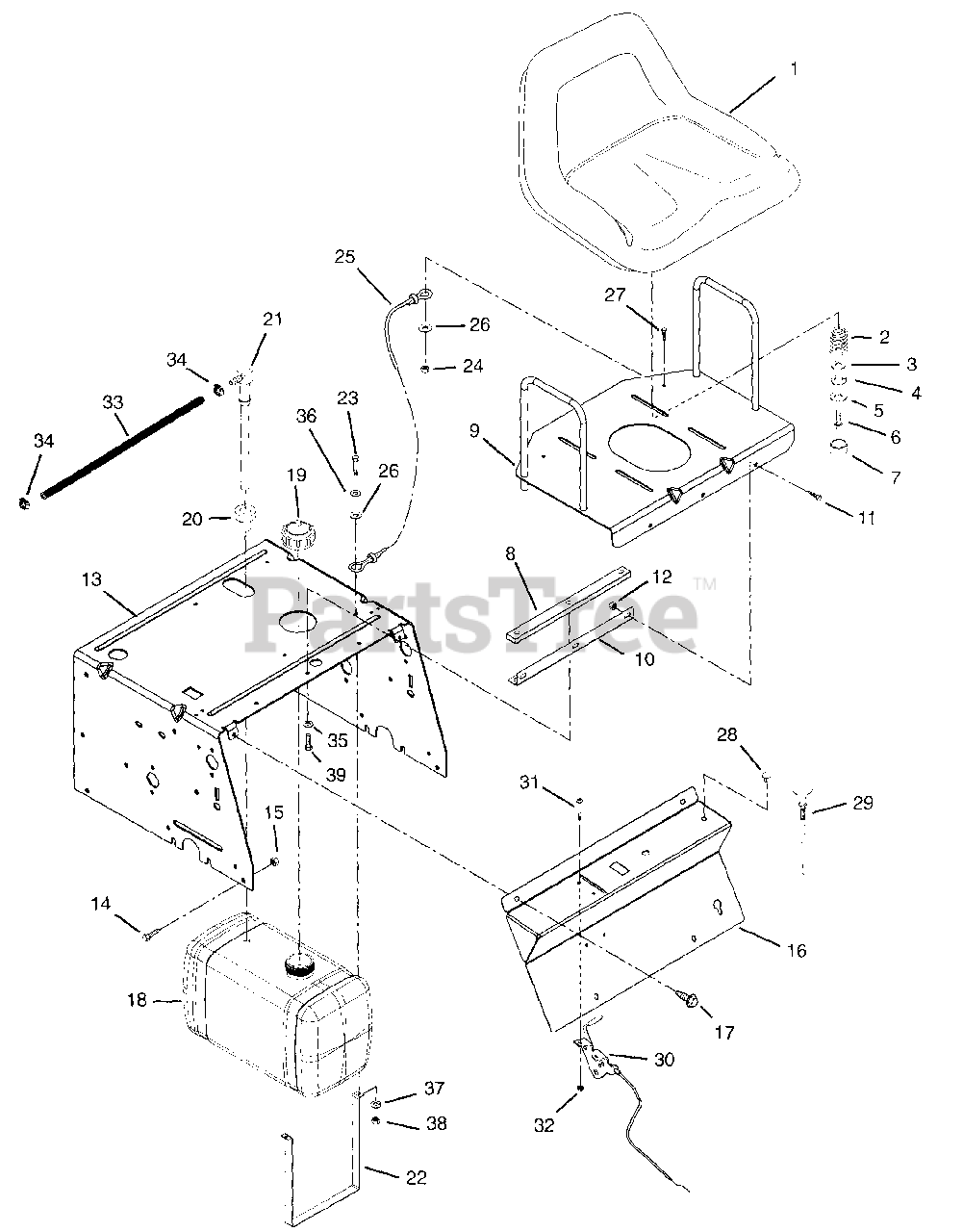

Seat, Support & Fuel Tank Parts Diagram

  • Title

1

Ariens 01522900

SEAT

$

$

Not available

2

Ariens 08328200

SG-COMP .148X1.23X2.41 WLD87

$15.99

$

In Stock, only 2 left!

0

3

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

6

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07521600

TUBE CAP

$1.49

$

In Stock, Qty 6

0

8

Ariens 01539100

PLT, CLAMPING YWZC

$

$

Not available

9

Ariens 01530500

SEAT PLATE WELDMENT

$

$

Not available

10

Ariens 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 01540800

SUPPORT, SEAT
(Superseded to 01540859)

$

$

Not available

14

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 01531200

CONTROL PANEL
(Superseded to 01531259)

$

$

Not available

17

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

18

Ariens 01522100

FUEL TANK

$

$

Not available

19

Ariens 01538400

FUEL CAP

$15.99

$

In Stock, only 1 left!

0

20

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

21

Ariens 08893600

FITTING, TANK

$20.99

$

Usually ships in 4-12 days

0

22

Ariens 08835900

STRP,FUEL TANK

$90.99

$

In Stock, only 1 left!

0

23

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 01537300

CABLE

$

$

Not available

26

Ariens 06443700

WASHER .328X1.00X.094 YWZC
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

27

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (008,010,304)

$

$

Not available

29

Ariens 06926100

CONTROL,CHOKE

Note: (009,305)

$59.99

$

In Stock, only 2 left!

0

30

Ariens 06937600

CABLE THROTTLE - EZR 14 + 15HP
(Superseded to 06940800)

$75.99

$

Usually ships in 4-12 days

0

31

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 01525600

HOSE, FUEL .25 ID X 22 LG

Note: (008,304)

$17.99

$

Usually ships in 4-12 days

0

Ariens 01528600

HOSE, FUEL .25 ID X 6 LG

Note: (009,305)

$

$

Not available

Ariens 01525700

HOSE, FUEL .25 ID X 14 LG

Note: (010)

$

$

Not available

34

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

35

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

39

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0
