915304 (EZR 1540) - Ariens 40" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 000101 & Above) 40" Rotary Mower Parts Diagram

40" Zero-Turn Mower, 15hp Briggs & Stratton

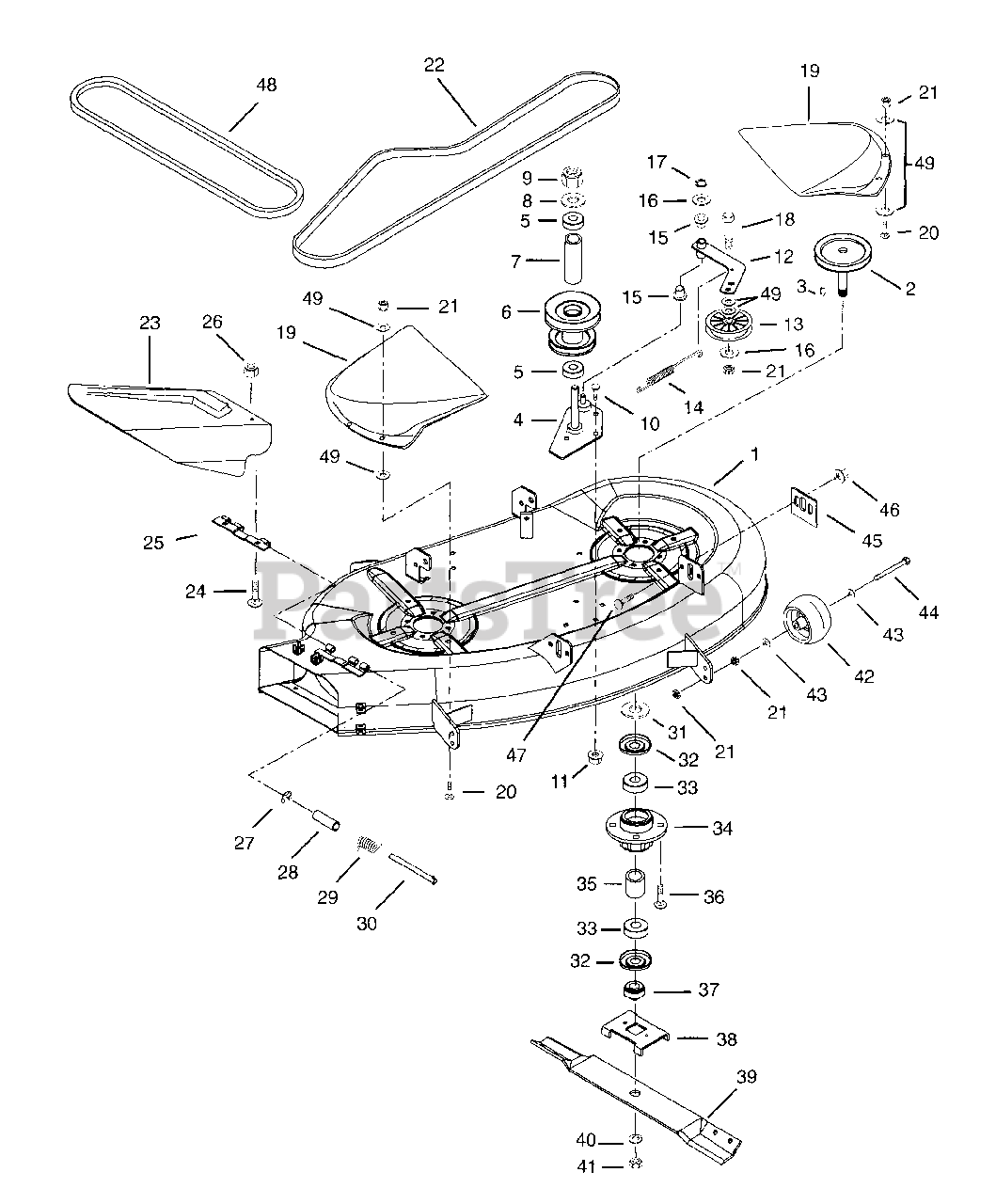

40" Rotary Mower Parts Diagram

  • Title

1

Ariens 51500100

40" MOWER DECK W/DECALS

$

$

Not available

1

Ariens 51500200

40" MOWER DECK ASSY COMPLETE

$

$

Not available

2

Ariens 01543200

SPINDLE, 40"
(Superseded to 01545000)

$97.99

$

Usually ships in 4-12 days

0

3

Ariens 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03624900

MOUNT PLATE 40"

$109.99

$

Usually ships in 4-12 days

0

5

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

6

Ariens 03602200

JACKSHAFT PULLEY

$219.99

$

Usually ships in 4-12 days

0

7

Ariens 03615500

SPACER .640X.880X2.545

$27.99

$

In Stock, only 1 left!

0

8

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$3.99

$

In Stock, only 2 left!

0

10

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 01535200

IDLER ARM

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 07324600

IDLER 3.5" DIA

$

$

Not available

14

Ariens 08329000

SG-TENS .113X.812X7.00

$20.99

$

Usually ships in 4-12 days

0

15

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 19

0

16

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

20

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07234200

V-BELT, HA-RAW EDGE

$46.99

$

In Stock, only 1 left!

0

23

Ariens 03609800

40IN. CHUTE DEFLECTOR

$89.99

$

Usually ships in 4-12 days

0

24

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$27.99

$

In Stock, only 1 left!

0

26

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

29

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

30

Ariens 03624200

PIN

$51.99

$

In Stock, only 1 left!

0

31

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

32

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

33

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

34

Ariens 03625000

SPINDLE HOUSING

$168.99

$

Usually ships in 4-12 days

0

35

Ariens 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

36

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

37

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

38

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

39

Ariens 03624700

BLADE

Note: (008,010)

$31.99

$

In Stock, Qty 5

0

39

Ariens 03611100

MULCHING BLADE

Note: (304)

$37.99

$

In Stock, only 1 left!

0

40

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

42

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

43

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

45

Ariens 01528700

MOWER ADJUSTMENT TAB
(Superseded to 01528751)

$

$

Not available

46

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

48

Ariens 07234300

V-BELT, HA-WRAPPED

$

$

Not available

49

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
