915289 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Engine - Kawasaki FR600 Parts Diagram

42" Zero-Turn Mower, 18hp Kawasaki FR

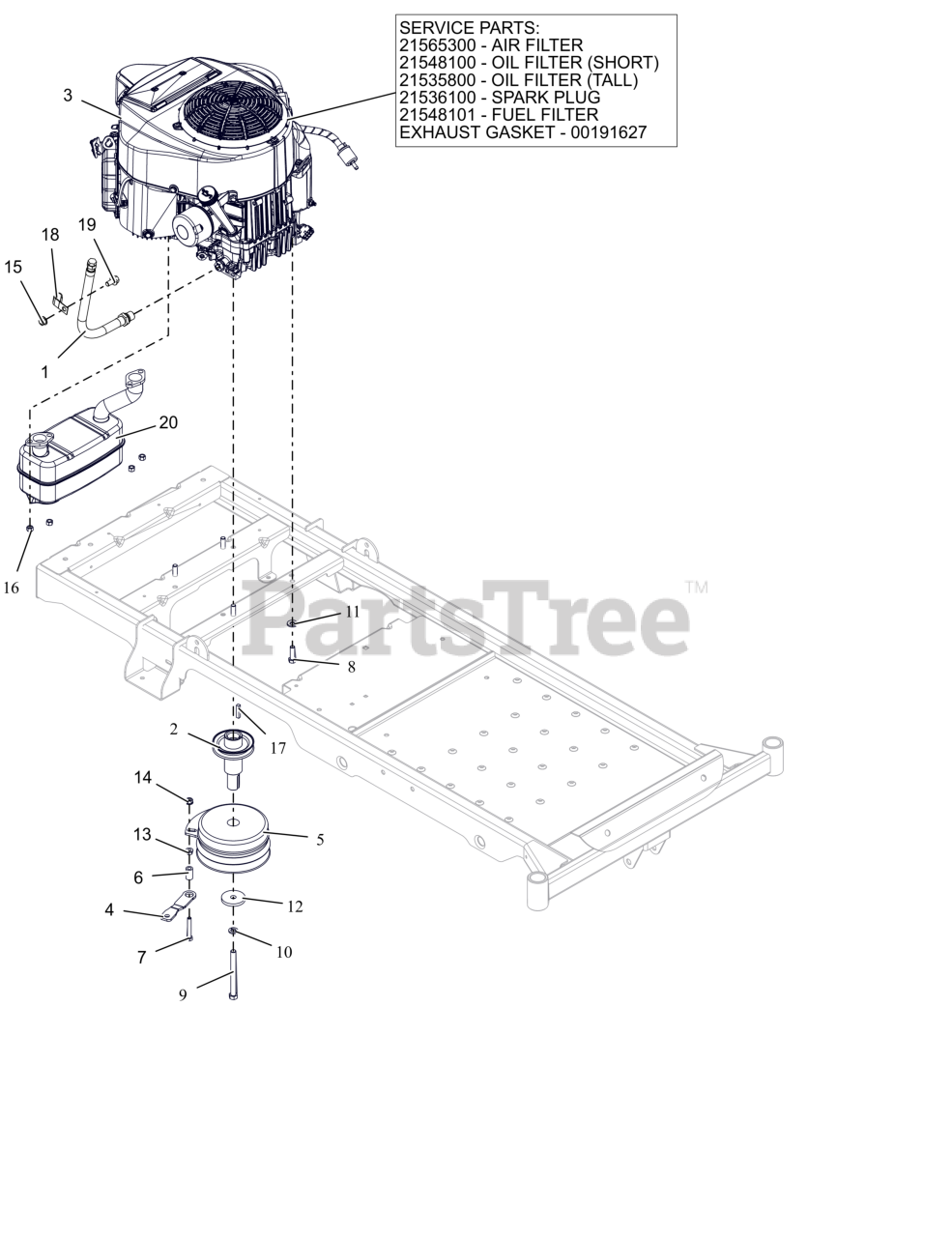

Engine - Kawasaki FR600 Parts Diagram

  • Title

1

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 07338600

WLDMT, CRANKSHAFT EXTENSION

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 08201506

ENGINE, KAWASAKI FR600

$

$

Currently unavailable

3

Gravely 21565300

AIR FILTER

$

$

Currently unavailable

3

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Standard Oil Filter

$18.99

$

In Stock, Qty 20+

0

3

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Optional Oil Filter

$18.99

$

In Stock, Qty 20+

0

3

Gravely 21536100

PLUG, SPARK

$3.99

$

In Stock, Qty 20+

0

3

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 00191627

GASKET, MUFFLER S/O

$7.99

$

In Stock, Qty 20+

0

4

Gravely 03956700

BRKT, CLUTCH

$

$

Currently unavailable

5

Gravely 03972700

CLUTCH, 105 FT*LB MONO POLE

$258.99

$

In Stock, only 4 left!

0

6

Gravely 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, Qty 12

0

7

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 5

0

9

Gravely 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, Qty 8

0

11

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, Qty 20+

0

13

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 12

0

17

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

18

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07001824

BLT, SERHFWH 0.375-16X0.75 GR5 ZCC

$

$

Currently unavailable

20

Gravely 30191800

MUFFLER - KAWASAKI (ZT)

$68.99

$

Usually ships in 4-12 days

0
