915288 (ZT 34) - Gravely 34" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Transaxles and Idler Pulley - 34" Parts Diagram

34" Zero-Turn Mower, 18hp Kawasaki FR

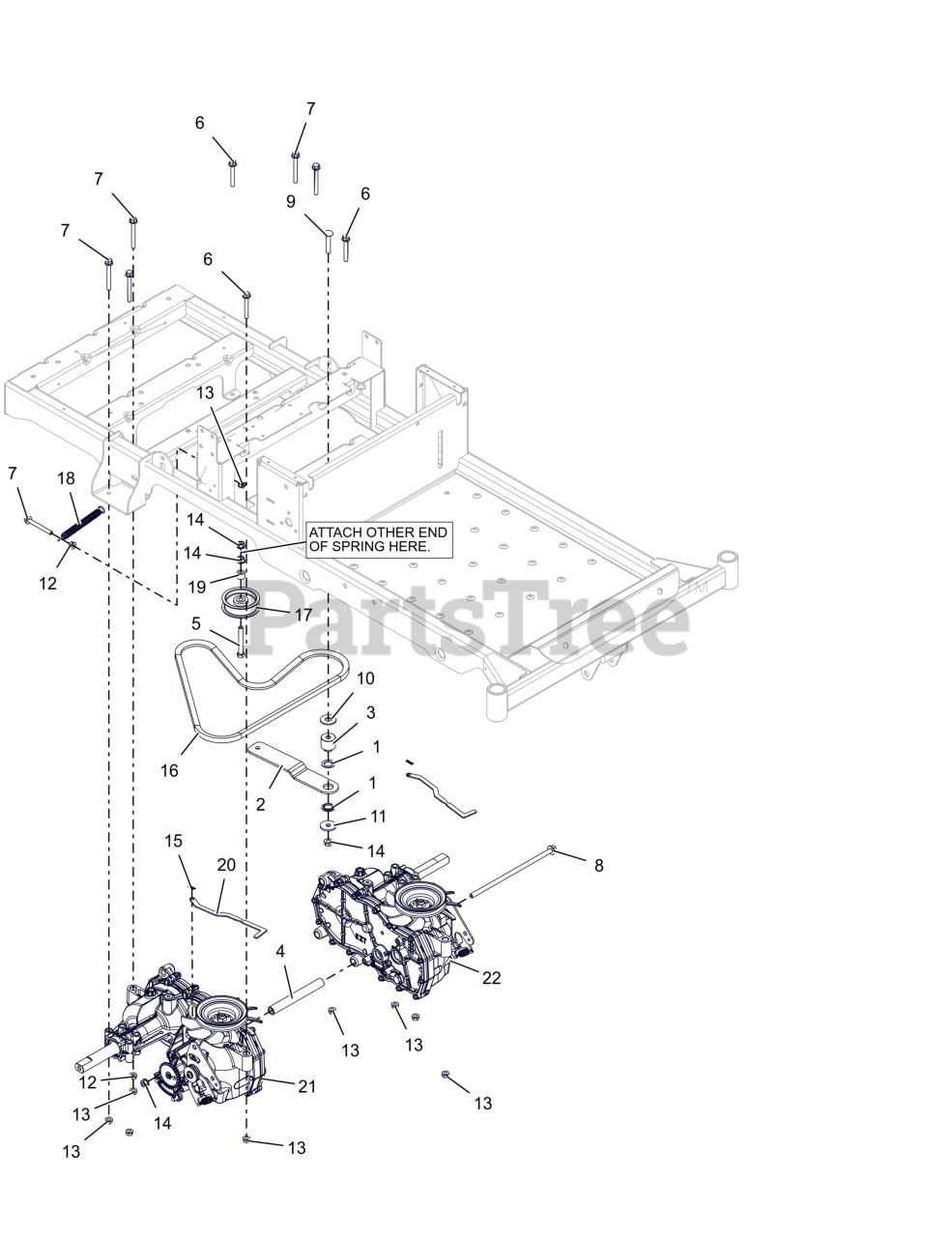

Transaxles and Idler Pulley - 34" Parts Diagram

  • Title

1

Gravely 03960700

BUSHING, IDLER ARM

$5.99

$

In Stock, Qty 10

0

2

Gravely 03961000

IDLER ARM, GROUND DRIVE
(Superseded to 03961067)

$

$

Not available

3

Gravely 03961100

SPACER, GROUND DRIVE IDLER

$5.99

$

In Stock, Qty 11

0

4

Gravely 05281851

SPCR- TRANSAXLE .438X.75X6.125

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 05902032

BLT, HEX-FLG 0.375-16X9.75 GR5 ZC120

$

$

Currently unavailable

9

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, Qty 20+

0

12

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06700221

PIN-HAIR INT .06X.18X.77

$0.99

$

In Stock, only 2 left!

0

16

Gravely 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

17

Gravely 07300221

PULLEY, ENGINE CLUTCH 03608

$30.99

$

In Stock, Qty 20+

0

18

Gravely 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

19

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 20+

0

20

Gravely 09160551

BRKT, VALVE DUMP (BLACK)

$

$

Currently unavailable

21

Gravely 30192100

TRANSAXLE, RH EZT D-SHORT SERV

$

$

Currently unavailable

22

Gravely 30192200

TRANSAXLE, LH EZT D-SHORT SERV

$

$

Currently unavailable
