915288 (ZT 34) - Gravely 34" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Idlers and Sheaves - 34" Parts Diagram

34" Zero-Turn Mower, 18hp Kawasaki FR

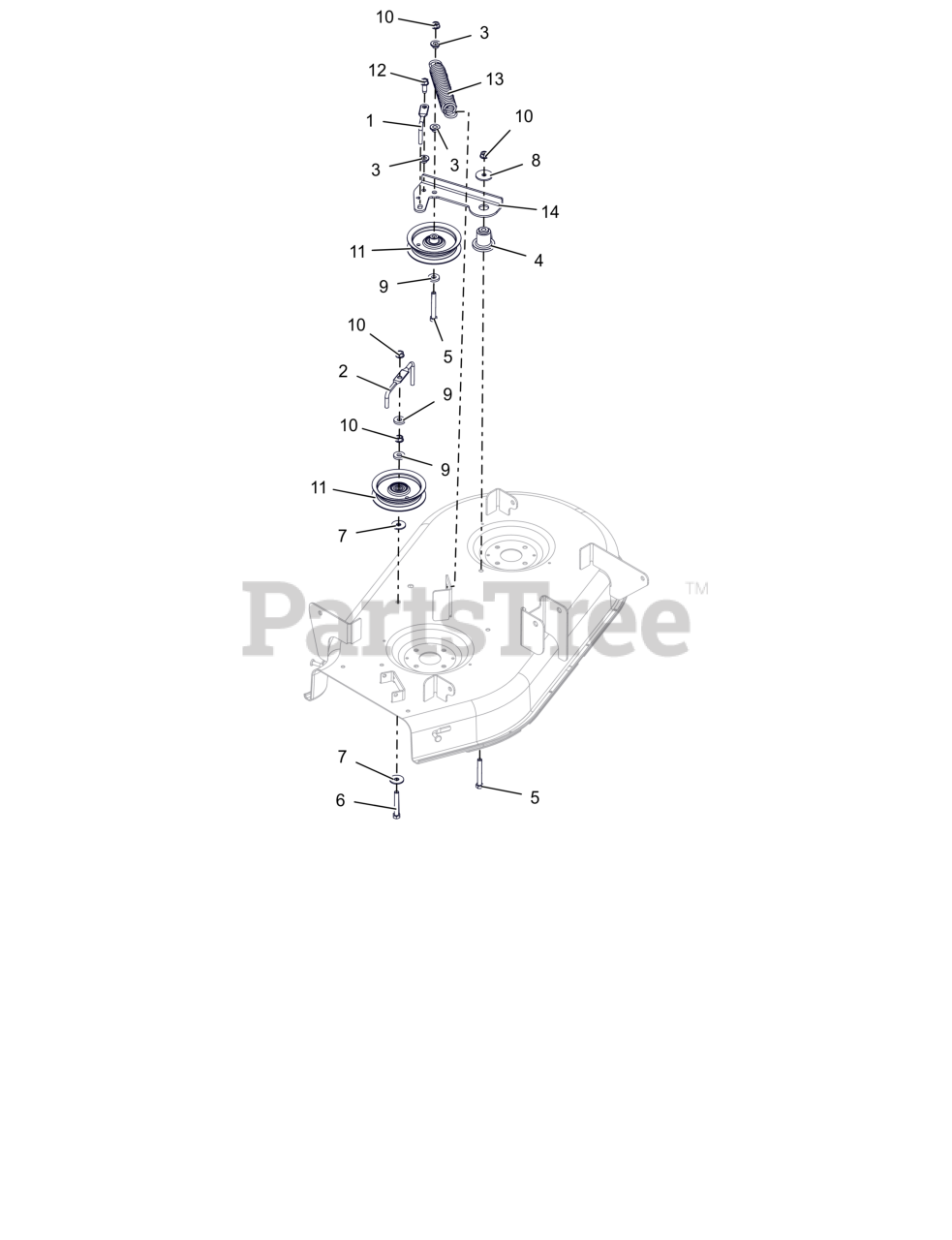

Idlers and Sheaves - 34" Parts Diagram

  • Title

1

Gravely 03828800

WIREFORM-BELT FINGER

$9.49

$

In Stock, Qty 12

0

2

Gravely 03974100

BELT FINGER

$11.99

$

In Stock, Qty 5

0

3

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

4

Gravely 05501530

BSHG, FIXED IDLER

$

$

Currently unavailable

5

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 9

0

8

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07350100

IDLER, FLAT - 4.06" X .75"

$48.99

$

In Stock, Qty 20+

0

12

Gravely 07417500

SCR-TAP .38-16X1.00 HWH TR ZCC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 08300627

SPRG, EXTENSION .170X1.385X6.7

$21.99

$

In Stock, Qty 6

0

14

Gravely 30143753

ARM, IDLER -34 ZT (RED)

$

$

Currently unavailable
