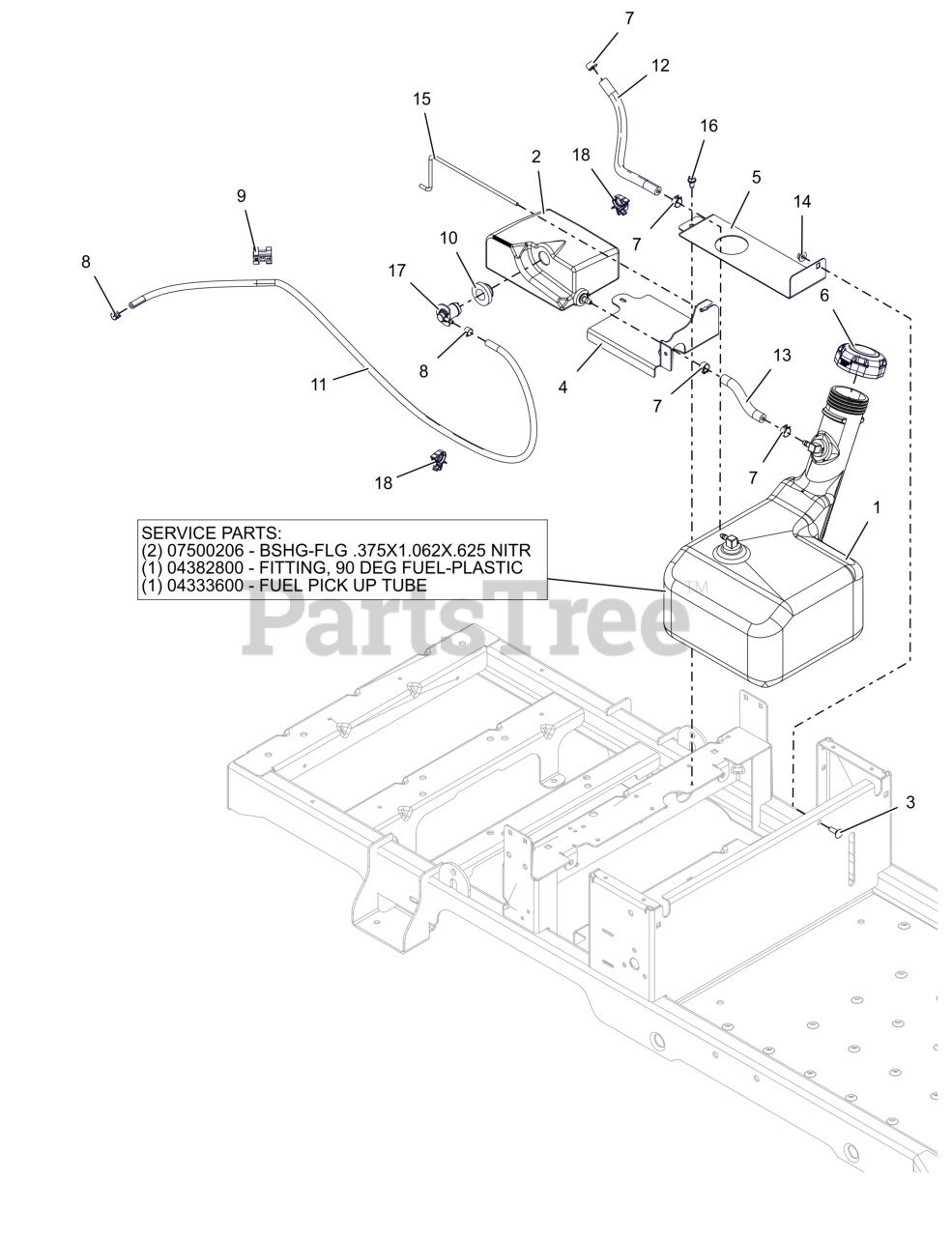

915288 (ZT 34) - Gravely 34" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Fuel System Parts Diagram

34" Zero-Turn Mower, 18hp Kawasaki FR

Fuel System Parts Diagram

  • Title

1

Gravely 05244700

ASM, FUEL TANK

$162.99

$

Usually ships in 4-12 days

0

2

Gravely 05244800

ASM, FUEL TANK - EXPANSION

$40.99

$

Usually ships in 4-12 days

0

3

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 5

0

4

Gravely 05288553

BRKT, EXPANSION TANK (RED)

$

$

Currently unavailable

5

Gravely 03771451

BRKT, TANK STRAP

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 09190200

CAP-FUEL- 2.25 RATCHET INLET V

$20.99

$

In Stock, Qty 20+

0

7

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

8

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 20+

0

11

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 10

0

12

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 12

0

15

Gravely 05288651

ROD, HOLDDOWN (BLACK)

$

$

Currently unavailable

16

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 8

0

18

Gravely 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0
