915288 (ZT 34) - Gravely 34" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Front and Rear Wheels - 34" Parts Diagram

34" Zero-Turn Mower, 18hp Kawasaki FR

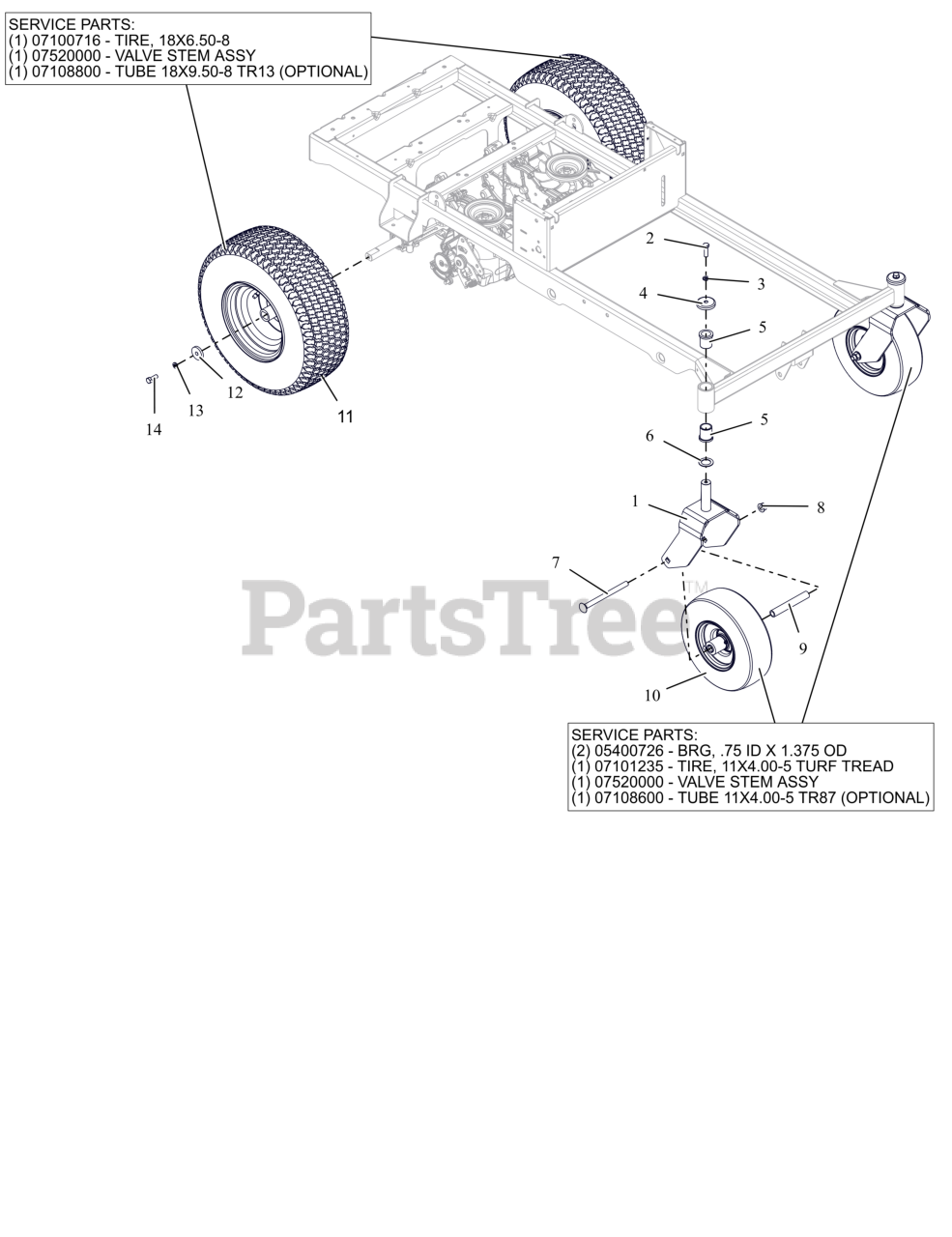

Front and Rear Wheels - 34" Parts Diagram

  • Title

1

Gravely 09695153

WLDMT, CASTER FORK (RED)

$

$

Currently unavailable

2

Gravely 05902203

BLT- HEX .38-16X1.25 G5 ZB500

$2.99

$

In Stock, only 1 left!

0

3

Gravely 06300130

WSHR-LK-REG .375X.094 ZB500

$1.49

$

In Stock, only 1 left!

0

4

Gravely 30146400

SHIELD, AXLE BEARING BLK

$

$

Currently unavailable

5

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

6

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

In Stock, Qty 19

0

8

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$14.99

$

In Stock, Qty 20+

0

10

Gravely 07101519

ASM, WHL/TIRE 11X4.00-5 LG BLK

$

$

Currently unavailable

10

Gravely 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

$

$

Not available

10

Gravely 07101235

TIRE, 11X4-5 TURF TREAD

$51.99

$

In Stock, Qty 14

0

10

Gravely 07520000

VALVE STEM ASS'Y

$2.49

$

In Stock, only 4 left!

0

10

Gravely 07108600

TUBE 11 X4.0-5 TR87

$11.99

$

In Stock, Qty 12

0

10

Gravely 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

10

Gravely 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$51.99

$

In Stock, Qty 14

0

10

Gravely 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, only 4 left!

0

10

Gravely 07108600

TUBE 11 X4.0-5 TR87

Note: Optional Component Service Part

$11.99

$

In Stock, Qty 12

0

11

Gravely 07101516

ASM, WHL/TIRE 18X6.50-8 LG BLK

$

$

Currently unavailable

11

Gravely 07100716

TIRE, 18X6.5-8

Note: Component Service Part

$68.99

$

Usually ships in 4-12 days

0

11

Gravely 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, only 4 left!

0

11

Gravely 07108800

TUBE 18X6.50/8.50/9.50-8/20X8.00/10.00-8

Note: Optional Component Service Part

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$1.99

$

In Stock, Qty 20+

0
