915285 - Ariens Edge 52" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 & Above) Idlers and Sheaves - 52" Parts Diagram

Edge 52" Zero-Turn Mower, 21.5hp Kawasaki FR

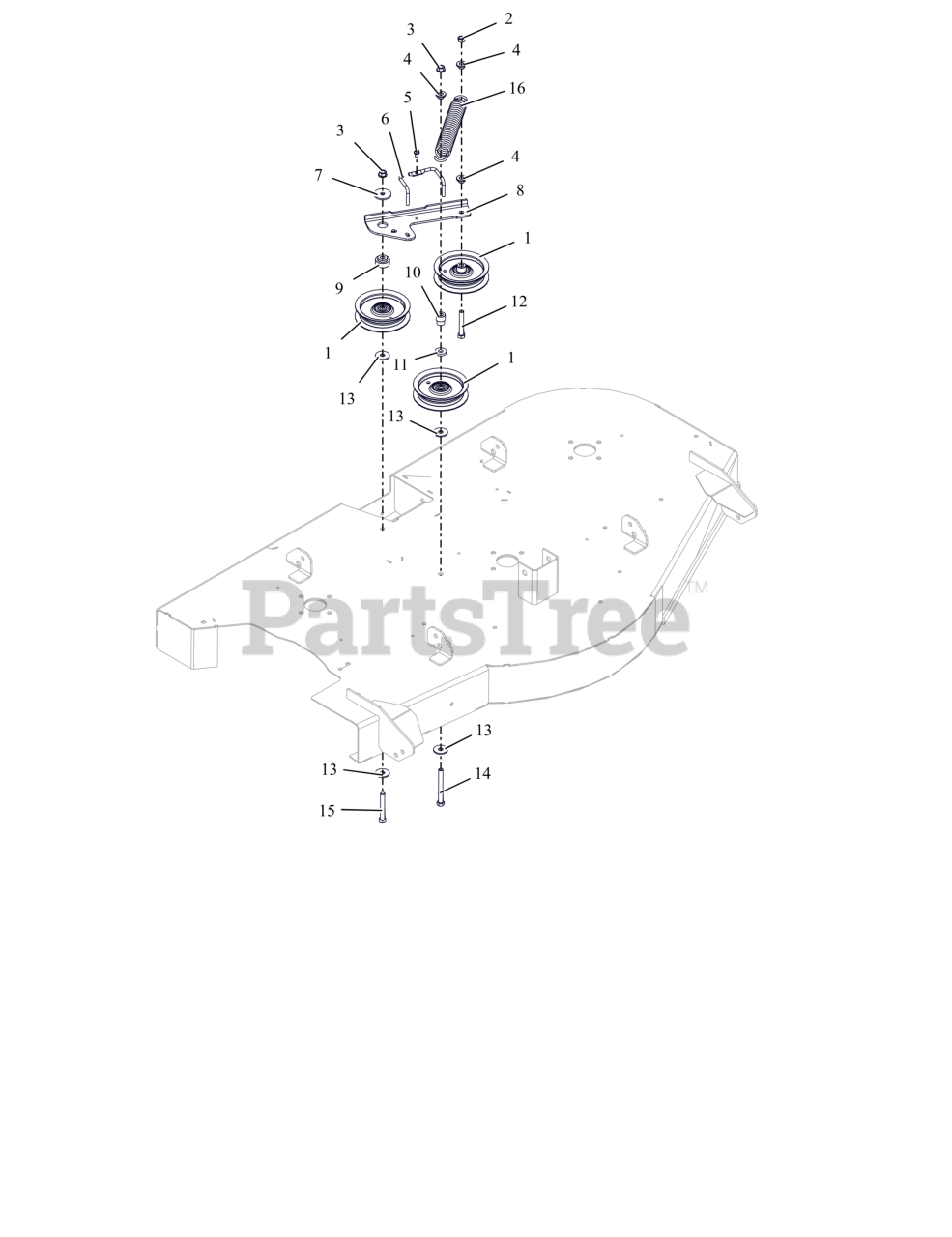

Idlers and Sheaves - 52" Parts Diagram

  • Title

1

Ariens 07350100

IDLER, FLAT - 4.06" X .75"

$48.99

$

In Stock, Qty 20+

0

2

Ariens 06500914

NUT-LK-CTR-JAM .375-16 GB ZCC

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

5

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 09694700

WIREFORM, BELT FINGER

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 9

0

8

Ariens 09695059

ARM- IDLER EDGE

$31.99

$

Usually ships in 4-12 days

0

9

Ariens 05501529

BSHG- FLANGED

$4.99

$

In Stock, only 1 left!

0

10

Ariens 00679300

BUSHING, IDLER (P/M)

$3.49

$

In Stock, only 2 left!

0

11

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05901818

BLT, HEX .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

15

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

16

Ariens 08300627

SPRG, EXTENSION

$21.99

$

In Stock, only 1 left!

0
