915283 - Ariens Edge 42" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

Edge 42" Zero-Turn Mower, 20hp Briggs & Stratton

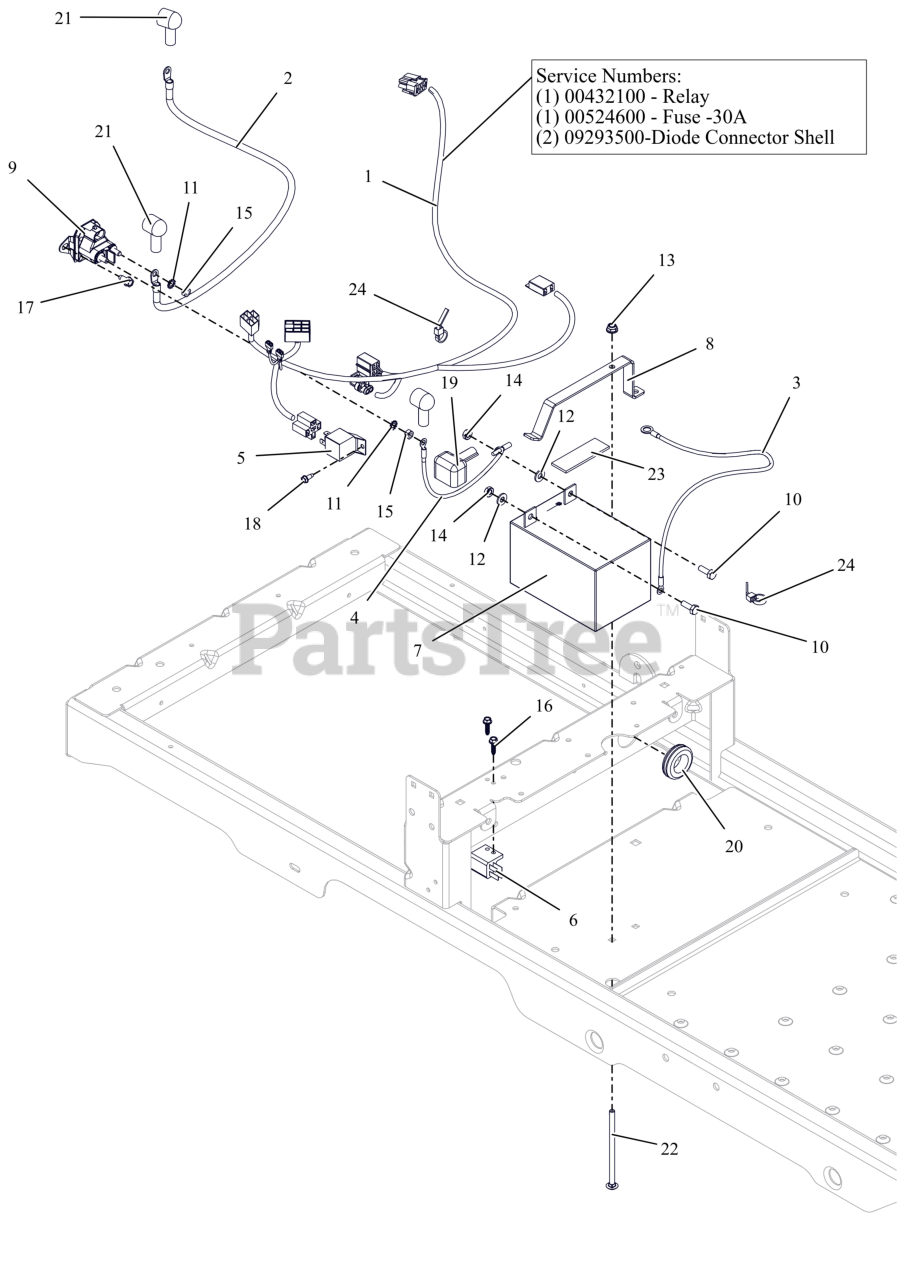

Electrical Parts Diagram

  • Title

1

Ariens 05296700

HARNESS, ZOOM / ZT WIRE

$102.99

$

In Stock, only 2 left!

0

1

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: Component Service Part

$22.99

$

In Stock, Qty 20+

0

1

Ariens 00524600

FUSE, 30 AMP.

Note: Component Service Part

$

$

Not available

1

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Component Service Part

$11.99

$

In Stock, only 3 left!

0

2

Ariens 04783400

CABLE,POS W/(2)1/4 RING 21.5LG

$

$

Not available

3

Ariens 04249900

CABLE, NEGATIVE 26" 6 GA.

$34.99

$

In Stock, only 1 left!

0

4

Ariens 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

In Stock, only 1 left!

0

5

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

6

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

7

Ariens 09425500

BATTERY, 12V 12A -190CCA

$122.99

$

In Stock, only 3 left!

0

8

Ariens 04385351

HOLDDOWN, BATTERY, U1&190CCA

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 17

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

14

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 1 left!

0

15

Ariens 06500925

NUT-STD M6-1.0 ZCC

$

$

Not available

16

Ariens 06100232

SCR, PLASTITE #12X.75 ZCC

$

$

Not available

17

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

19

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

20

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

21

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

22

Ariens 06200308

BLT, RHSN .25-20X4.50 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

24

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
