915281 - Ariens Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Seat and Seat Support Parts Diagram

Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton

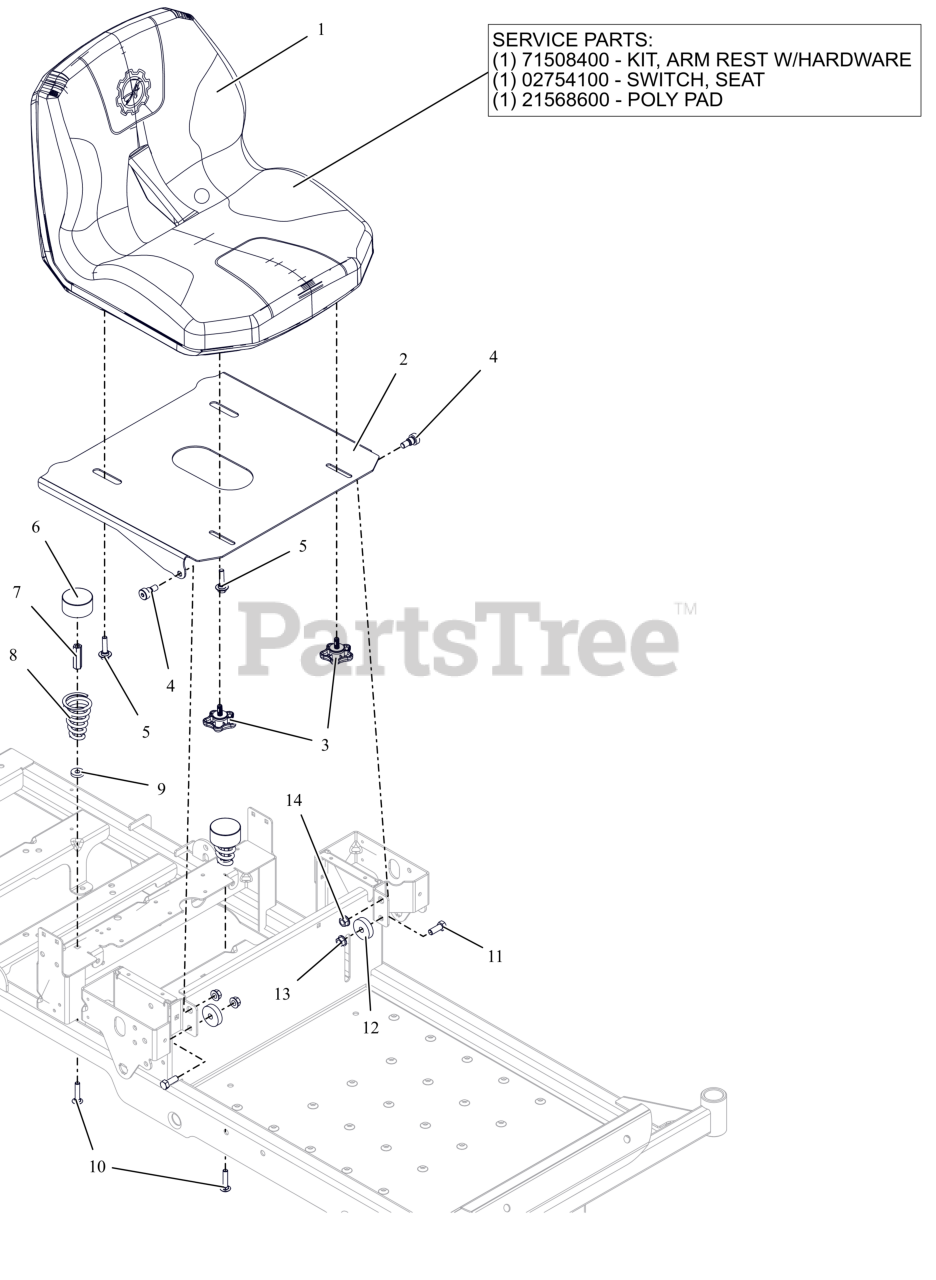

Seat and Seat Support Parts Diagram

  • Title

1

Ariens 09680500

SEAT- EDGE

$323.99

$

Usually ships in 4-12 days

0

1

Ariens 71508400

KIT, ARMREST - EDGE

Note: Service Part Component

$64.99

$

In Stock, only 1 left!

0

1

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: Service Part Component

$9.49

$

In Stock, Qty 20+

0

1

Ariens 21568600

POLY PAD
(Superseded to 71508400)

Note: Service Part Component

$64.99

$

In Stock, only 1 left!

0

2

Ariens 05289259

PLATE, SEAT (ORANGE)

$56.99

$

Usually ships in 4-12 days

0

3

Ariens 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 1 left!

0

4

Ariens 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

5

Ariens 07001929

BOLT SHLDR .31-18 X .175

$2.49

$

In Stock, only 1 left!

0

6

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$3.99

$

In Stock, only 1 left!

0

8

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 1 left!

0

10

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

13

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0
