915281 - Ariens Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Idlers and Sheaves - 34" Parts Diagram

Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton

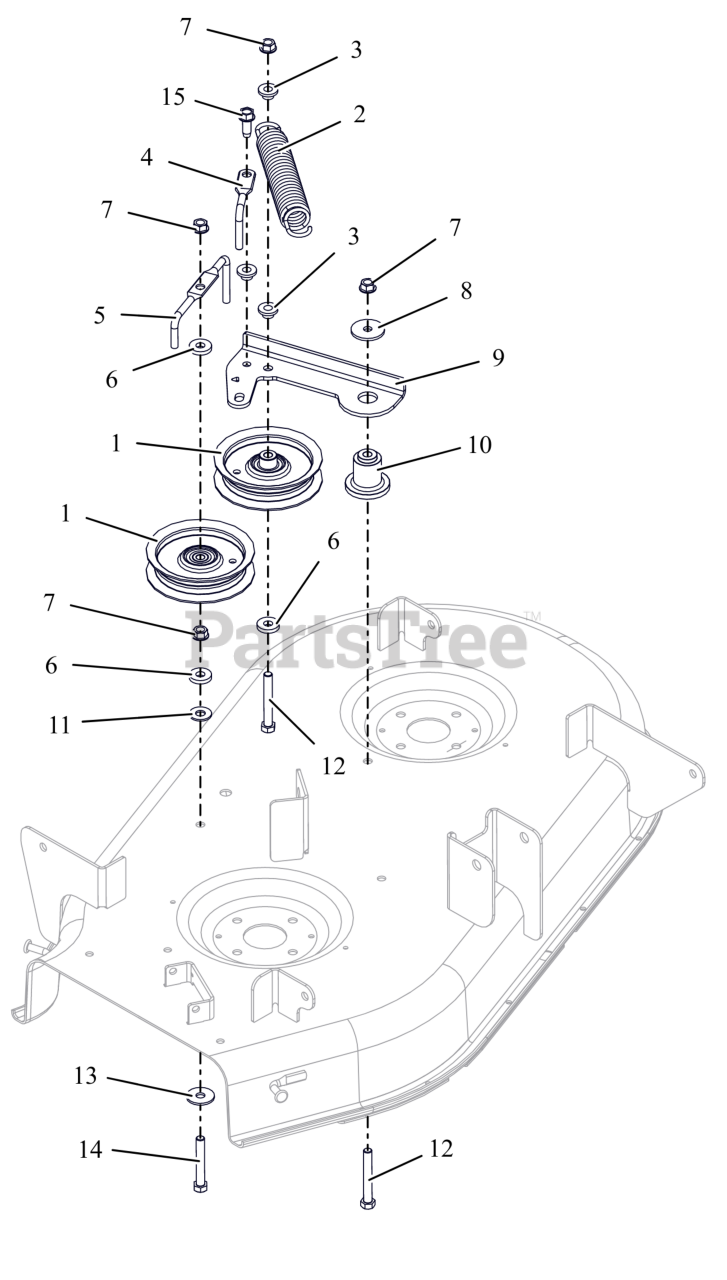

Idlers and Sheaves - 34" Parts Diagram

  • Title

1

Ariens 07350100

IDLER, FLAT - 4.06" X .75"

$48.99

$

In Stock, Qty 20+

0

2

Ariens 08300627

SPRG, EXTENSION

$21.99

$

In Stock, only 1 left!

0

3

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

4

Ariens 03828800

WIREFORM-BELT FINGER

$9.49

$

In Stock, only 1 left!

0

5

Ariens 03974100

BELT FINGER

$

$

Not available

6

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 7

0

7

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 11

0

9

Ariens 30143759

ARM- IDLER -34 EDGE

$

$

Not available

10

Ariens 05501530

BSHG- FLANGED

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

13

Ariens 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Ariens 07417500

SCR-TAP .38-16X1.00 HWH TR ZCC

$3.99

$

In Stock, only 2 left!

0
