915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Transaxle Drive Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

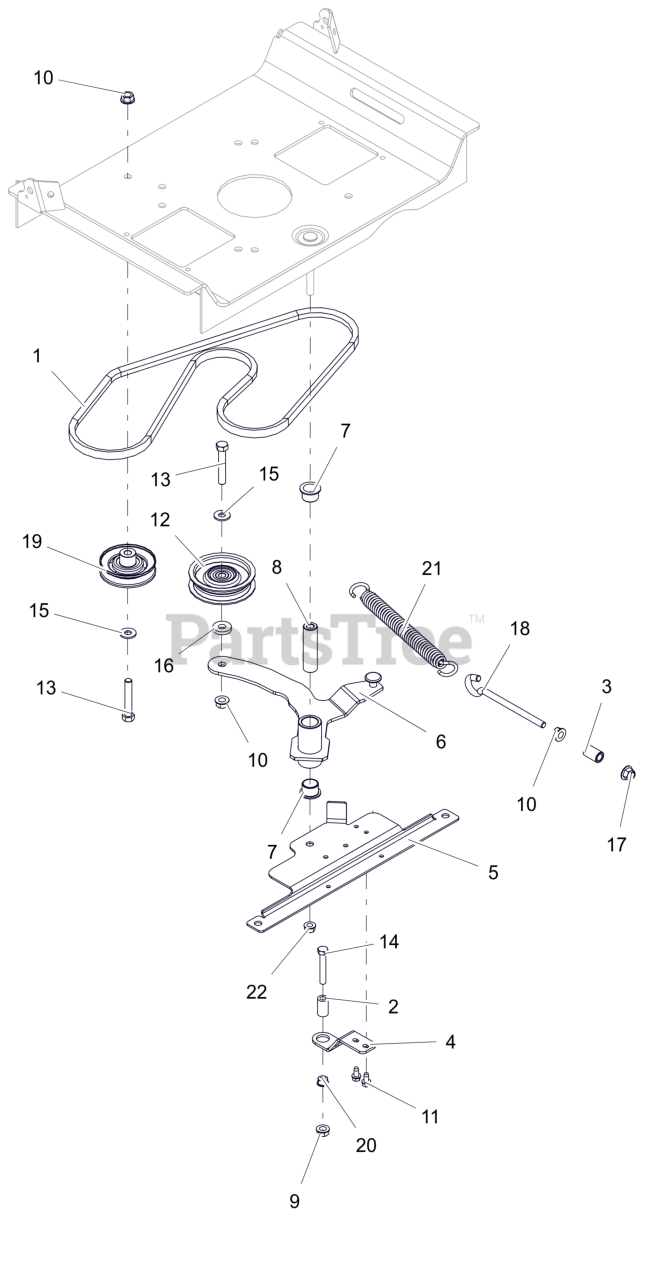

Transaxle Drive Parts Diagram

  • Title

1

Gravely 07200718

V-BELT, A-RAW EDGE

$52.99

$

In Stock, Qty 20+

0

2

Gravely 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, only 2 left!

0

3

Gravely 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

4

Gravely 04879351

BRKT, CLUTCH STOP (XL)

$19.99

$

In Stock, only 1 left!

0

5

Gravely 05240851

BRKT, IDLER ATTACHMENT (BLACK)

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 04890451

WLDMT,GRD DRIVE IDLER ARM-LGR

$59.99

$

In Stock, only 1 left!

0

7

Gravely 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.49

$

In Stock, only 2 left!

0

8

Gravely 05501237

BUSHING, SLEEVE .38X.750X2.78

$17.99

$

In Stock, only 1 left!

0

9

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07349900

SHEAVE, IDLER -V .38 x 4.00

$15.99

$

In Stock, only 1 left!

0

13

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

17

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

19

Gravely 07347200

IDLER, V-3.000 OD

$29.99

$

In Stock, only 1 left!

0

20

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

22

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+
