915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Deck Lift Parts Diagram
52" Zero-Turn Mower, 23hp Kawasaki FR

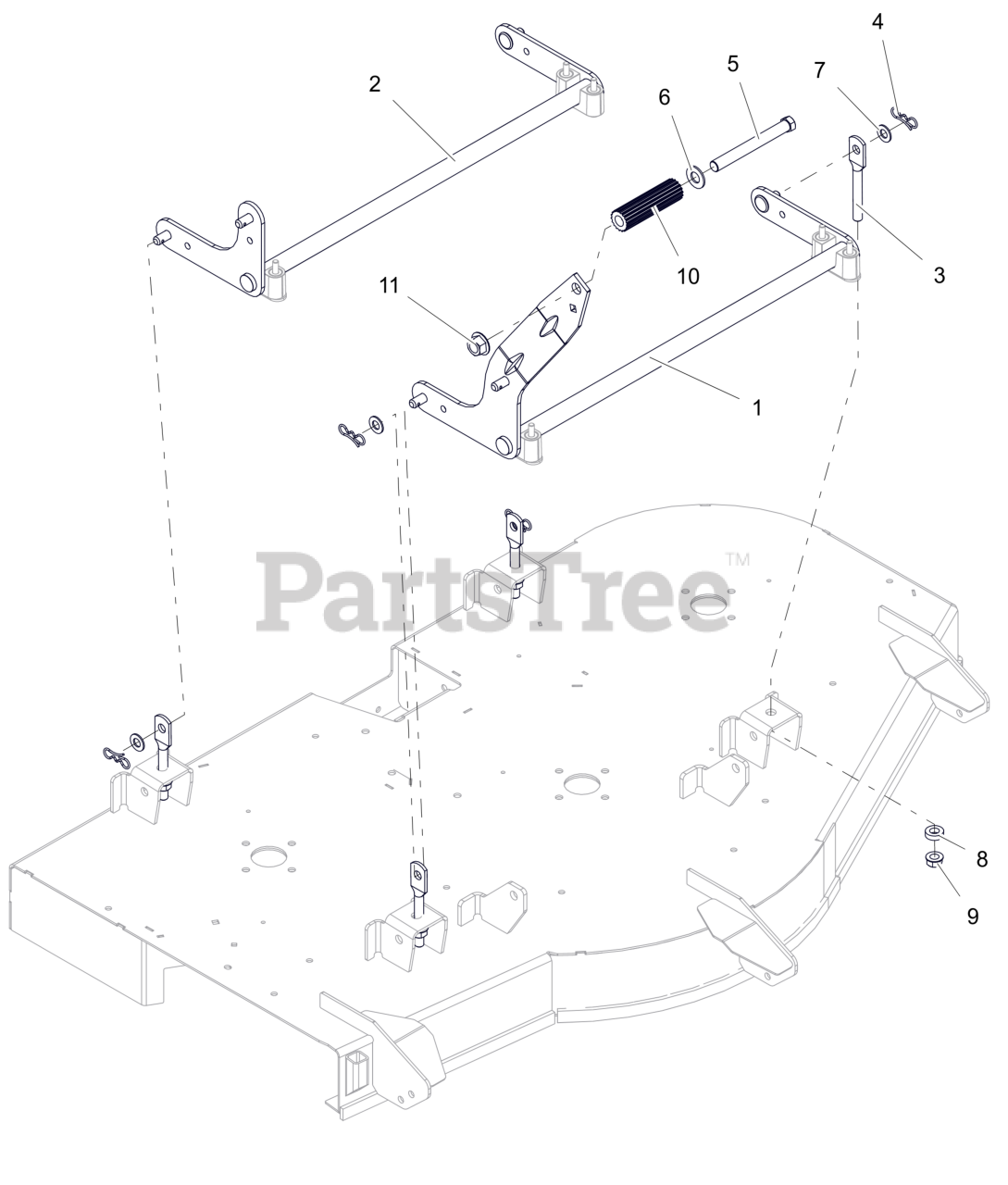

Deck Lift Parts Diagram
Gravely 09476451
WLDMT- FRONT LIFTPIVOT
$
$
Not available
Gravely 05246151
WLDMT- REAR DECK PIVOT
$110.99
$
Usually ships in 4-12 days
Gravely 05113900
LINK, DECK (HOLE-LONG)
$7.49
$
Usually ships in 4-12 days
Gravely 06700220
PIN, BOWTIE .091X1.875 ZCC
$1.99
$
In Stock, Qty 20+
Gravely 05901730
BLT, HEX .62-11X5.50 G5 FBP
$6.99
$
Usually ships in 4-12 days
Gravely 06401039
WSHRFLT 5/8SAE CARBHARD FBP
$3.99
$
Usually ships in 4-12 days
Gravely 06443300
WSHR-FL-NYL .518X1.000X.080
$0.99
$
In Stock, Qty 20+
Gravely 07500417
WSHR, RUBBER
$2.49
$
In Stock, Qty 20+
Gravely 06500902
NUT-LK-CTR-FLG .500-13 GG ZCC
$1.49
$
In Stock, Qty 20+
Gravely 05120951
ROD, FOOT PEDAL (BLACK)
$
$
Not available
Gravely 06500835
NUT,FLG-TOP LK .625-11 FBP
$6.99
$
Usually ships in 4-12 days
