915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Controls Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

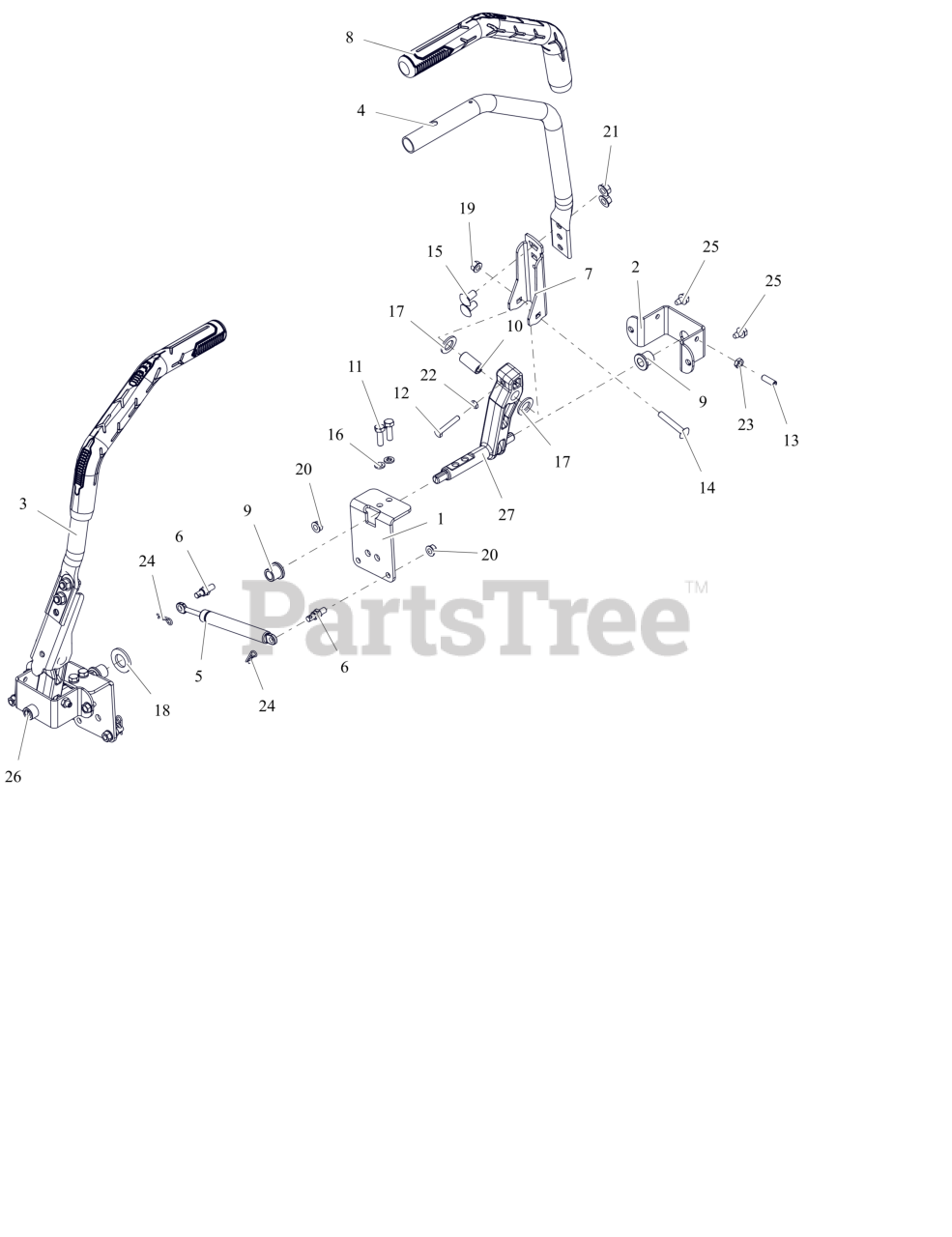

Controls Parts Diagram

  • Title
1

Gravely 04764151

BRKT, STEEERING

$38.99

$

Usually ships in 4-12 days

0

2

Gravely 04990951

BRKT, STEERING

$38.99

$

Usually ships in 4-12 days

0

3

Gravely 05107051

HANDLE, STEERING - RH (BLACK)

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 05107151

HANDLE, STEERING - LH (BLACK)

$26.99

$

In Stock, only 1 left!

0

5

Gravely 05160400

DAMPER, STRAIGHT MOUNT

$36.99

$

In Stock, only 2 left!

0

6

Gravely 05171400

COUPLER, DAMPER MOUNT

$6.99

$

In Stock, only 2 left!

0

7

Gravely 05179651

ARM, CONTROL -UPPER RH (BLACK)

$43.99

$

In Stock, only 1 left!

0

8

Gravely 05278900

GRIP- HANDLEBAR

$42.99

$

Usually ships in 4-12 days

0

9

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

10

Gravely 05501334

BSHG-SLV .342 X .627 X 1.331

$2.49

$

In Stock, only 1 left!

0

11

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 6

0

12

Gravely 05902030

BLT, HEX 0.25-20X1.5F GR5 ZCC

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06100240

SCR-SET, .312-18X1.000

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06200431

BLT, RHSSN .31-18X2.00 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

15

Gravely 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06401130

WSHR, FRICTION

$4.99

$

In Stock, only 3 left!

0

18

Gravely 06401140

WSHR-FL-STL 0.812X1.469X0.134 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500905

NUT-LK-TOP-FLG .375-16 GG ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500908

NUT-JAM .250-20 G2 ZCC

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

26

Gravely 09155400

ARM, STEERING - RH LOWER (MACHINED)

$36.99

$

In Stock, only 1 left!

0

27

Gravely 09155500

ARM- STEERING-LH LOWER (MACH)

$39.99

$

In Stock, Qty 17

0
