915279 - Ariens Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR (SN: 000101 & Above) Seat Parts Diagram

Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR

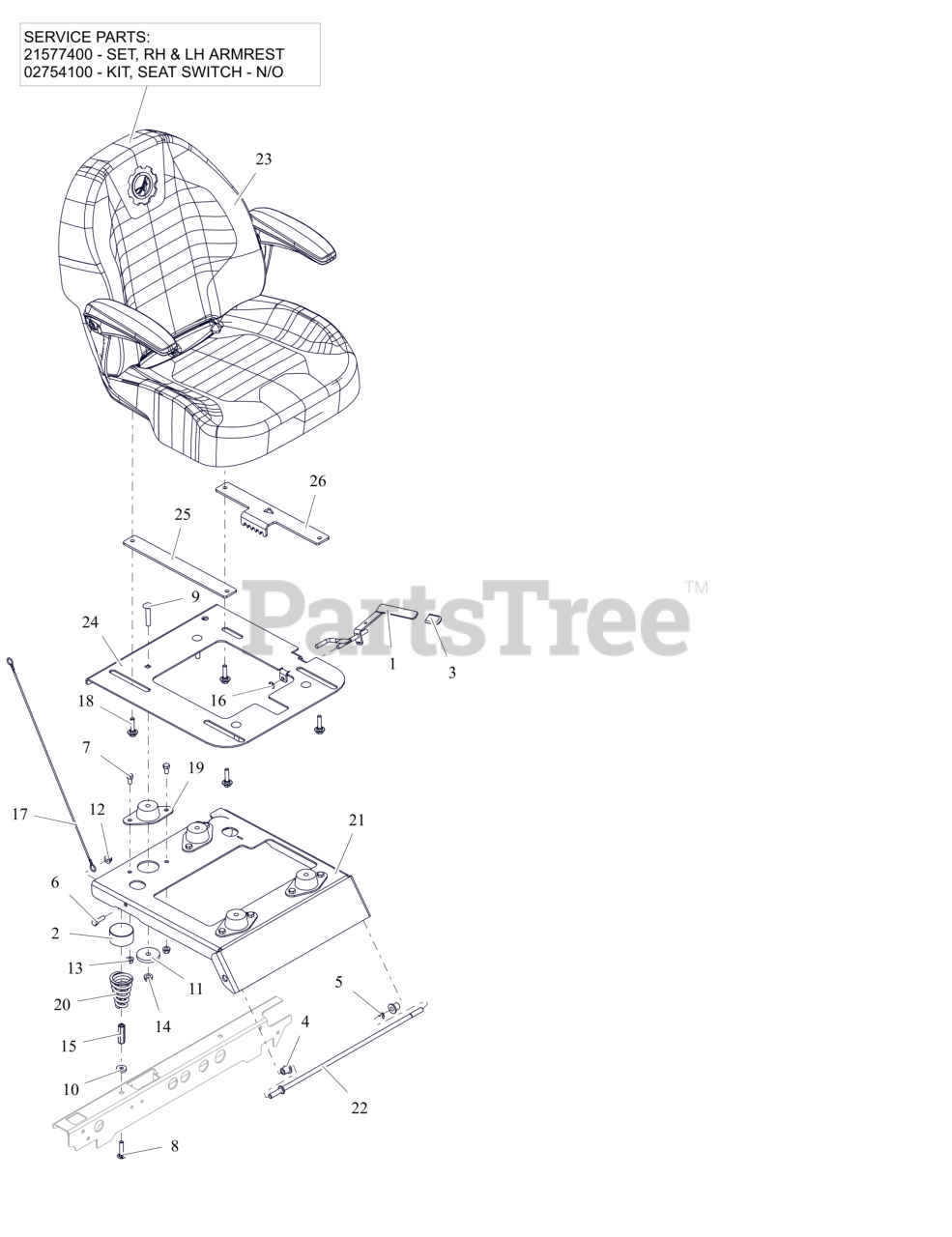

Seat Parts Diagram

  • Title
1

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$

$

Not available

2

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

3

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

4

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

5

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05901832

BLT, HEX .31-18X.625 G5 ZCC

$

$

Not available

8

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

9

Ariens 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 2 left!

0

11

Ariens 06401212

WSHR-FL-STL 0.406X2X0.25 ZCC

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$11.99

$

In Stock, only 3 left!

0

18

Ariens 07001929

BOLT SHLDR .31-18 X .175

$2.49

$

In Stock, only 3 left!

0

19

Ariens 07500237

MOUNT, FAIL-SAFE COMPRESSION

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 09158141

PLATE- SEAT (ISO MOUNT)

$91.99

$

Usually ships in 4-12 days

0

22

Ariens 09448000

ROD- SEAT PIVOT

$

$

Not available

23

Ariens 09476100

SEAT- IKON SPECIAL EDITION

$452.99

$

Usually ships in 4-12 days

0

23

Ariens 21577400

SET, RH & LH ARMREST

Note: Component Service Part

$

$

Currently unavailable

23

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.49

$

In Stock, Qty 20+

0

24

Ariens 09654851

PLATE- SEAT ISO - LIMITED

$79.99

$

Usually ships in 4-12 days

0

25

Ariens 09654951

PLATE- SEAT SLIDE - LIMITED

$17.99

$

Usually ships in 4-12 days

0

26

Ariens 09655051

PLATE- SEAT SLIDE ADJUST-LTD

$

$

Not available
