915279 - Ariens Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR (SN: 000101 & Above) Rear Tires and Transaxles Parts Diagram

Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR

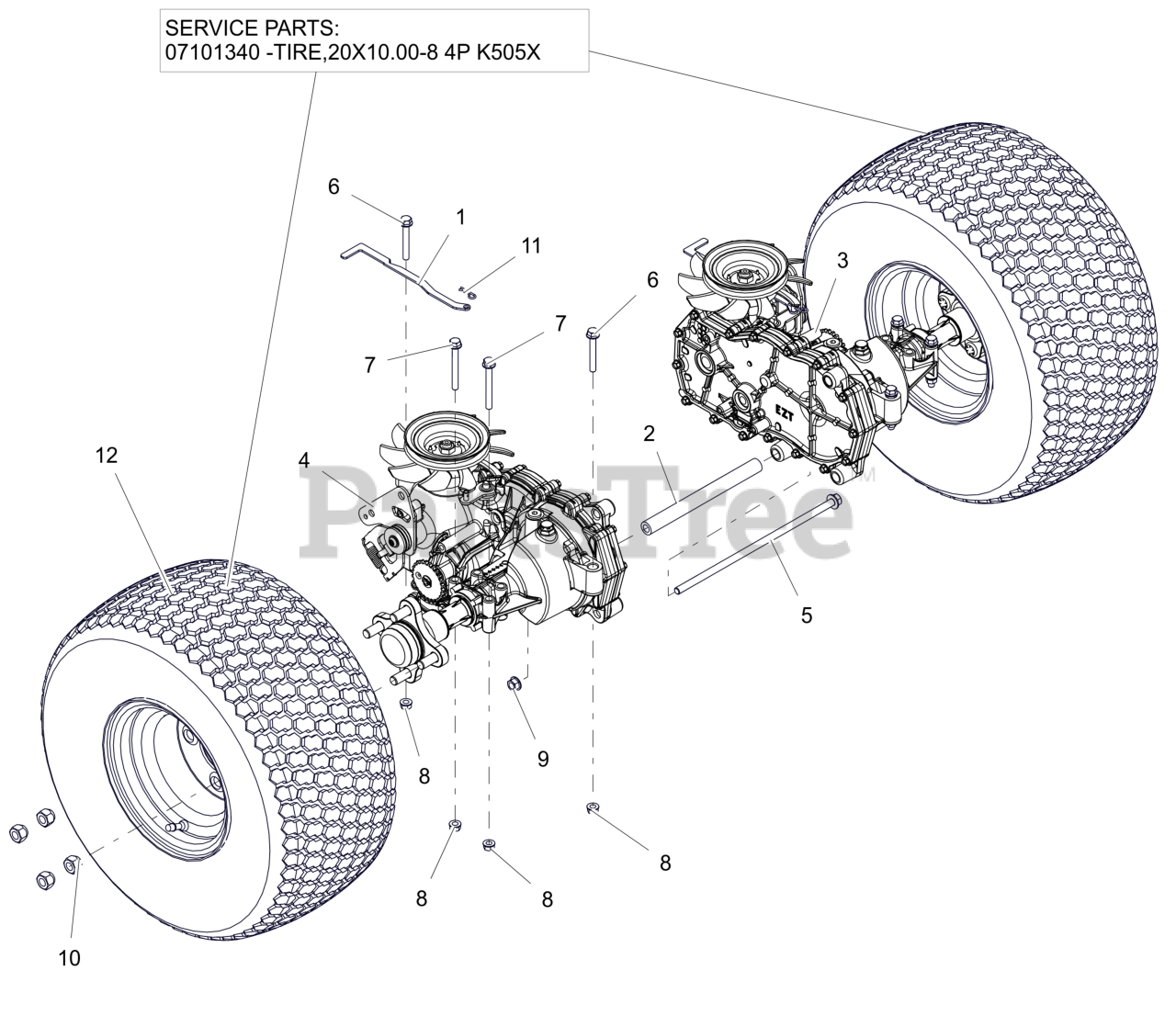

Rear Tires and Transaxles Parts Diagram

  • Title

1

Ariens 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

2

Ariens 05162451

TUBE, TRANSAXLE BRACE 8.18LG

$19.99

$

In Stock, only 1 left!

0

3

Ariens 05291800

TRANSAXLE

$1170.99

$

Usually ships in 4-12 days

0

4

Ariens 05291900

TRANSAXLE

$1158.99

$

Usually ships in 4-12 days

0

5

Ariens 05901902

BLT,HEX-FLG .38-16X11.5 G5 ZCC

$11.99

$

In Stock, only 1 left!

0

6

Ariens 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07101431

ASM- TIRE/WHEEL 20X10-8

$148.99

$

Usually ships in 4-12 days

0

12

Ariens 07101340

LAWN TIRE REAR, 4 PLY kK505 20/10.00-8

Note: Component Service Part

$

$

Not available
