915279 - Ariens Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR (SN: 000101 & Above) Fuel System Parts Diagram

Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR

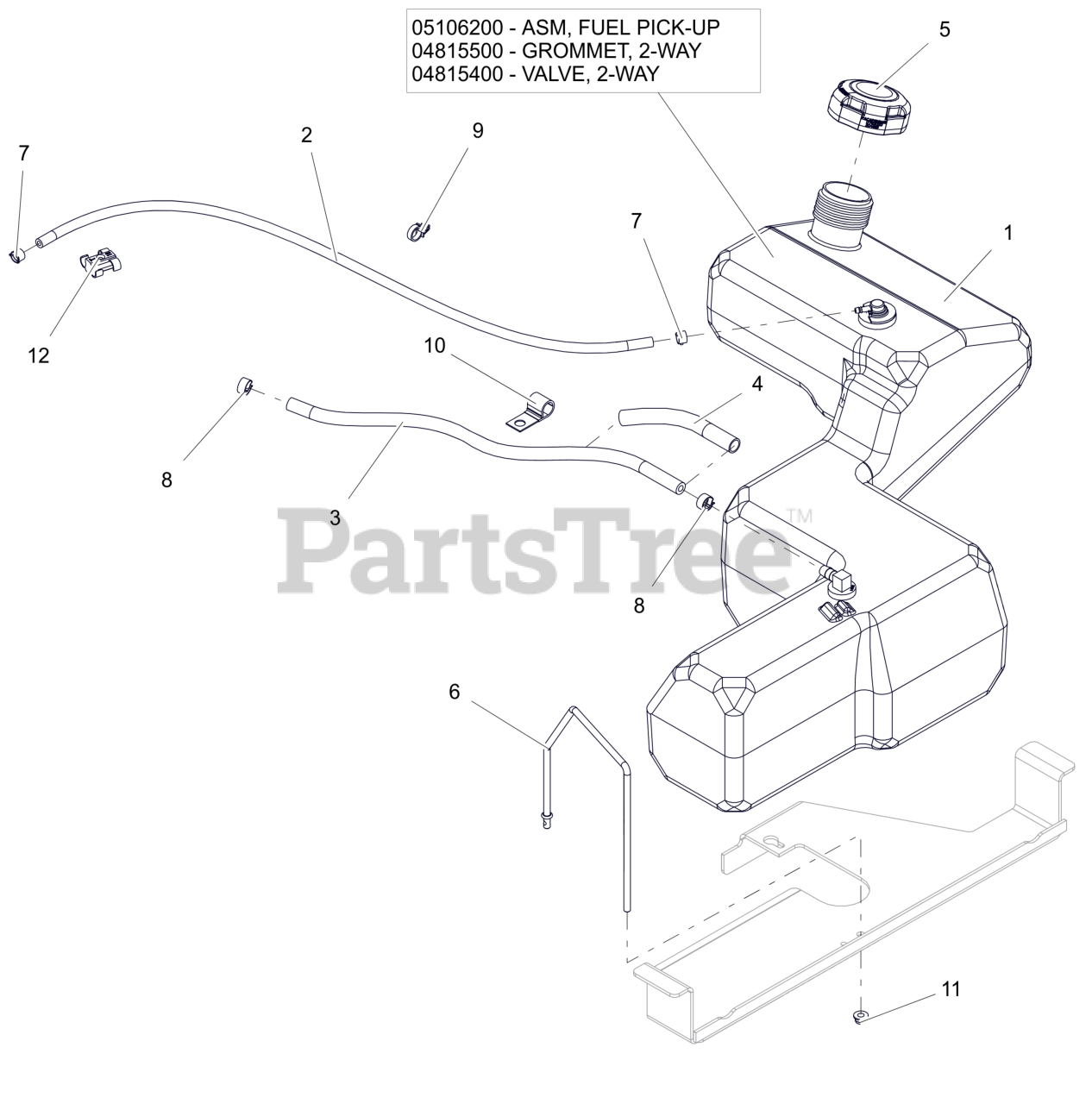

Fuel System Parts Diagram

  • Title

1

Ariens 09167200

ASM, FUEL TANK-IKON

$

$

Not available

1

Ariens 05106200

ASM, IKON FUEL PICK-UP

Note: Component Service Part

$29.99

$

In Stock, only 1 left!

0

1

Ariens 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: Component Service Part

$3.49

$

In Stock, Qty 9

0

1

Ariens 04815400

VALVE, 2-WAY

Note: Component Service Part

$19.99

$

In Stock, Qty 8

0

2

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

Usually ships in 4-12 days

0

3

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05118500

WRAP, ANTIABRASION .5X.064WALL

$

$

Not available

5

Ariens 09190200

CAP, FUEL - 2.25 RATCHET INLET VENT

$18.99

$

In Stock, Qty 20+

0

6

Ariens 05099867

BRKT, FUEL TANK HOLD DOWN

$

$

Not available

7

Ariens 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

8

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

10

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

12

Ariens 07001712

CLIP, T, .38-.50

$

$

Not available
