915279 - Ariens Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR (SN: 000101 & Above) Engine Guard Parts Diagram

Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR

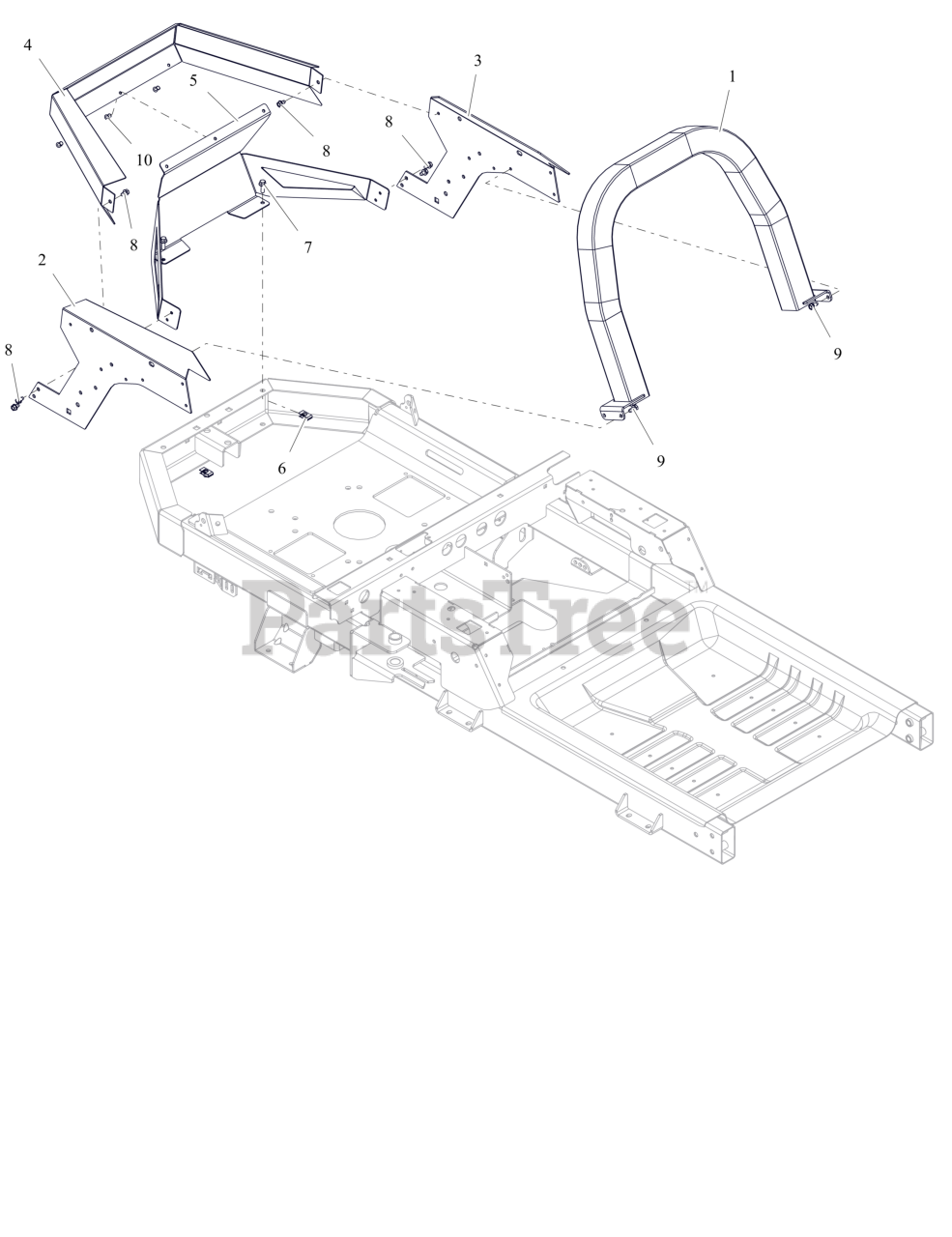

Engine Guard Parts Diagram

  • Title
1

Ariens 05296341

GUARD- ENGINE TRIM

$183.99

$

Usually ships in 4-12 days

0

2

Ariens 05295959

PANEL, RIGHT REAR FENDER MOUNT (ORANGE)

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 05296059

PANEL, LH REAR FENDER MOUNT (ORANGE)

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 05296159

GUARD, ENGINE WRAP (ORANGE)

$54.99

$

In Stock, only 2 left!

0

5

Ariens 05296241

GUARD- ENGINE

$79.99

$

Usually ships in 4-12 days

0

6

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

8

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available
