915277 - Ariens Ikon-XD 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 & Above) Idlers and Sheaves - 42" Parts Diagram

Ikon-XD 42" Zero-Turn Mower, 21.5hp Kawasaki FR

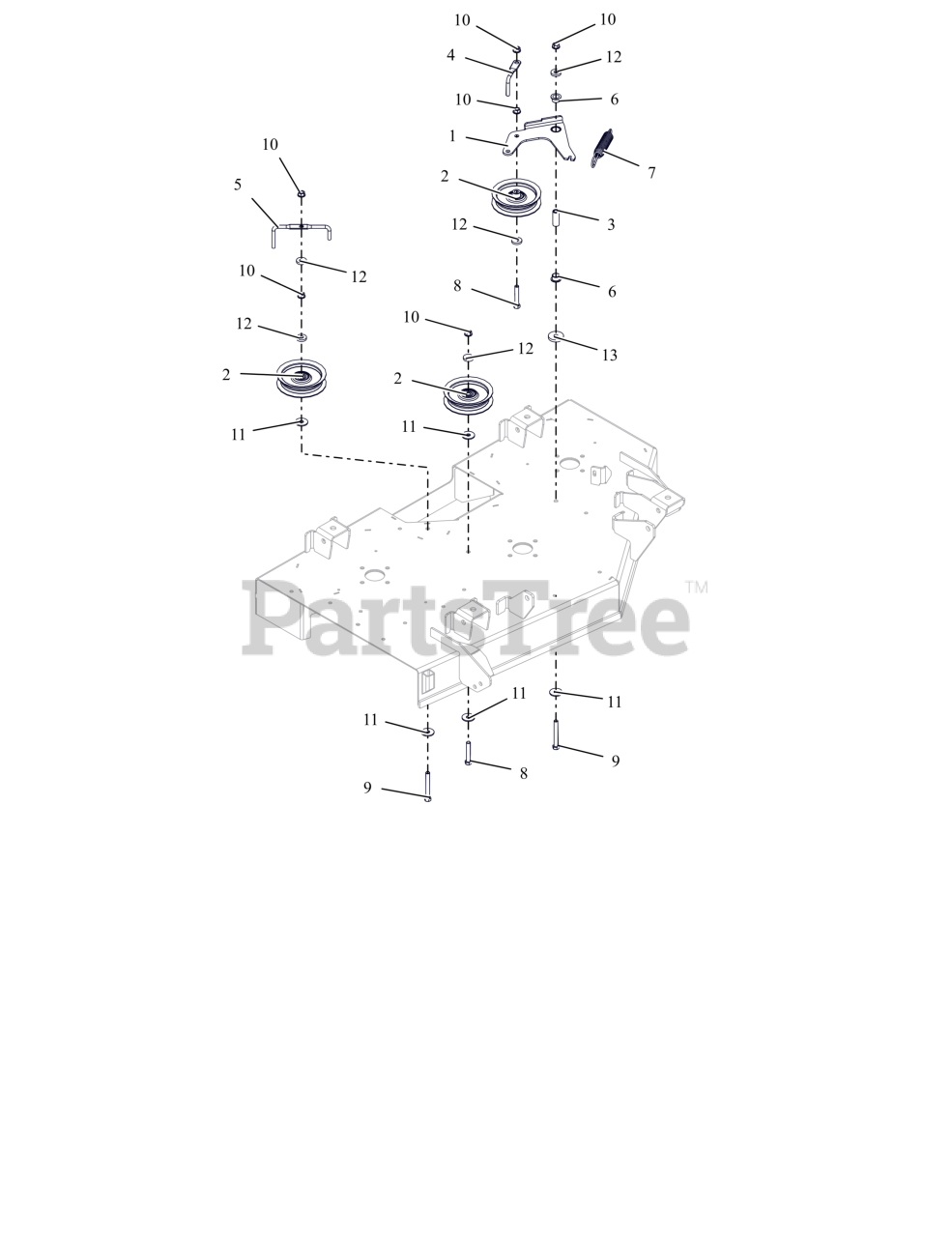

Idlers and Sheaves - 42" Parts Diagram

  • Title

1

Ariens 04773359

WLDMT, IDLER ARM-42"

$37.99

$

Usually ships in 4-12 days

0

2

Ariens 07350100

IDLER, FLAT - 4.06" X .75"

$48.99

$

In Stock, Qty 20+

0

3

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Ariens 03828800

WIREFORM-BELT FINGER

$9.49

$

In Stock, only 1 left!

0

5

Ariens 03974100

BELT FINGER

$

$

Not available

6

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

7

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0

8

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05901815

BLT, HEX .38-16X3.00F G5 ZCC

$3.49

$

In Stock, only 1 left!

0

10

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0
