915276 (ZTX 48) - Gravely 48" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 & Above) Seat Parts Diagram

48" Zero-Turn Mower, 21.5hp Kawasaki FR

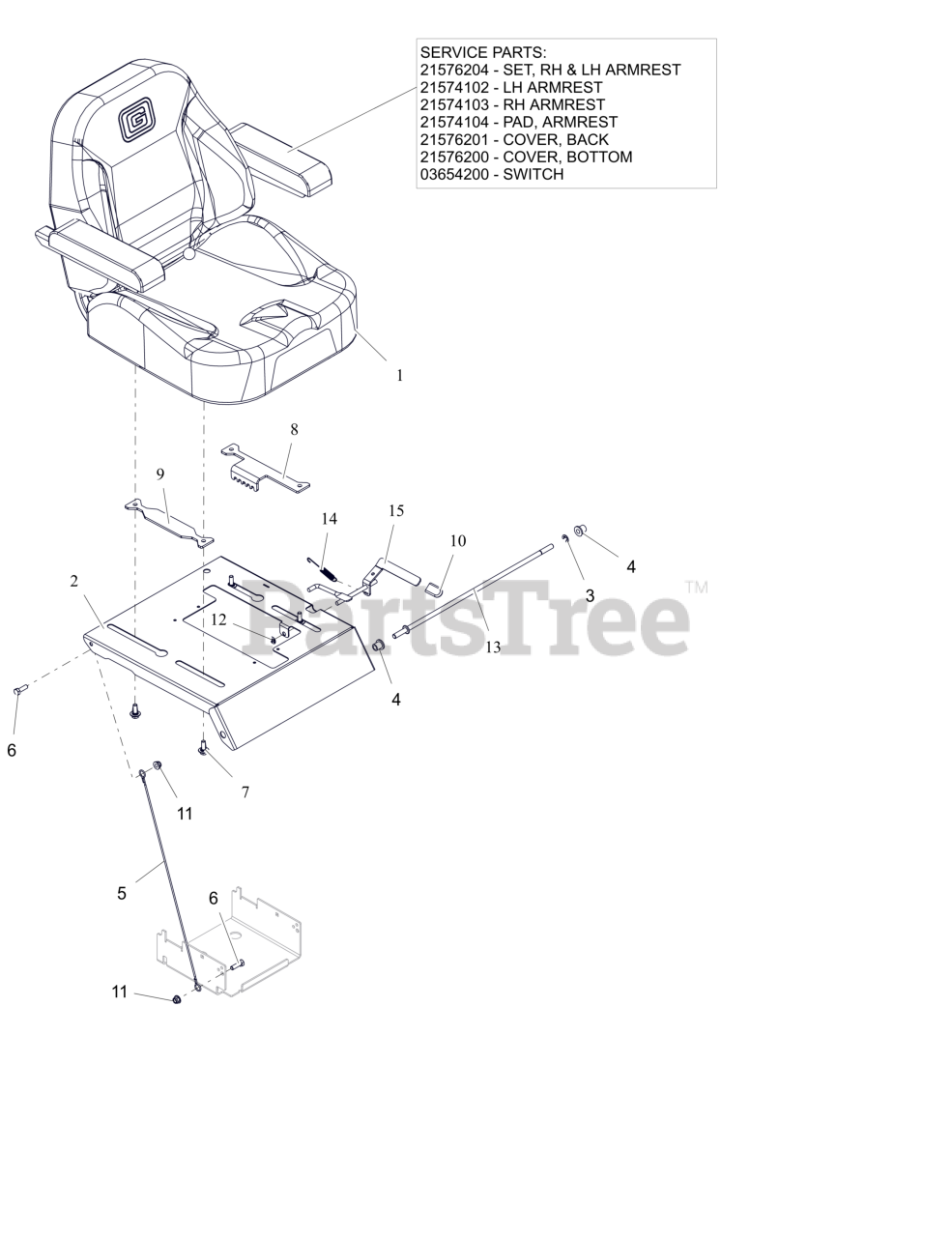

Seat Parts Diagram

  • Title

1

Gravely 05181300

SEAT- ZTX

$387.99

$

Usually ships in 4-12 days

0

1

Gravely 21576204

KIT- PADDED ARM RESTS LH&RH

Note: Component Service Part

$

$

Not available

1

Gravely 21574102

KIT, ARM REST LH

Note: Component Service Part

$113.99

$

Usually ships in 4-12 days

0

1

Gravely 21574103

KIT, ARM REST RH

Note: Component Service Part

$136.99

$

Usually ships in 4-12 days

0

1

Gravely 21574104

KIT, ARM REST PAD

Note: Component Service Part

$116.99

$

Usually ships in 4-12 days

0

1

Gravely 21576201

BACK COVER

Note: Component Service Part

$85.99

$

Usually ships in 4-12 days

0

1

Gravely 21576200

BOTTOM COVER

Note: Component Service Part

$81.99

$

Usually ships in 4-12 days

0

1

Gravely 03654200

SWITCH- SEAT

Note: Component Service Part

$

$

Not available

2

Gravely 09461053

PLATE- SEAT-ZTX 2022

$79.99

$

Usually ships in 4-12 days

0

3

Gravely 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

5

Gravely 06900623

LANYARD, SEAT CABLE .093X19.5

$11.99

$

In Stock, only 3 left!

0

6

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07001930

BLT, SHLDR .31-18 X .100

$1.99

$

In Stock, Qty 20+

0

8

Gravely 09387300

PKG-SEAT PAD-HD

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 09484351

PLATE, ADJUSTABLE SEAT TRACK (BLACK)

$

$

Not available

10

Gravely 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

11

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09448000

ROD- SEAT PIVOT

$

$

Not available

14

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

15

Gravely 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0
