915266 - Ariens Ikon-XD 52" Zero-Turn Mower, 24hp Kohler Twin (SN: 060000 & Above) Transmission - 05291800 Parts Diagram

Ikon-XD 52" Zero-Turn Mower, 24hp Kohler Twin

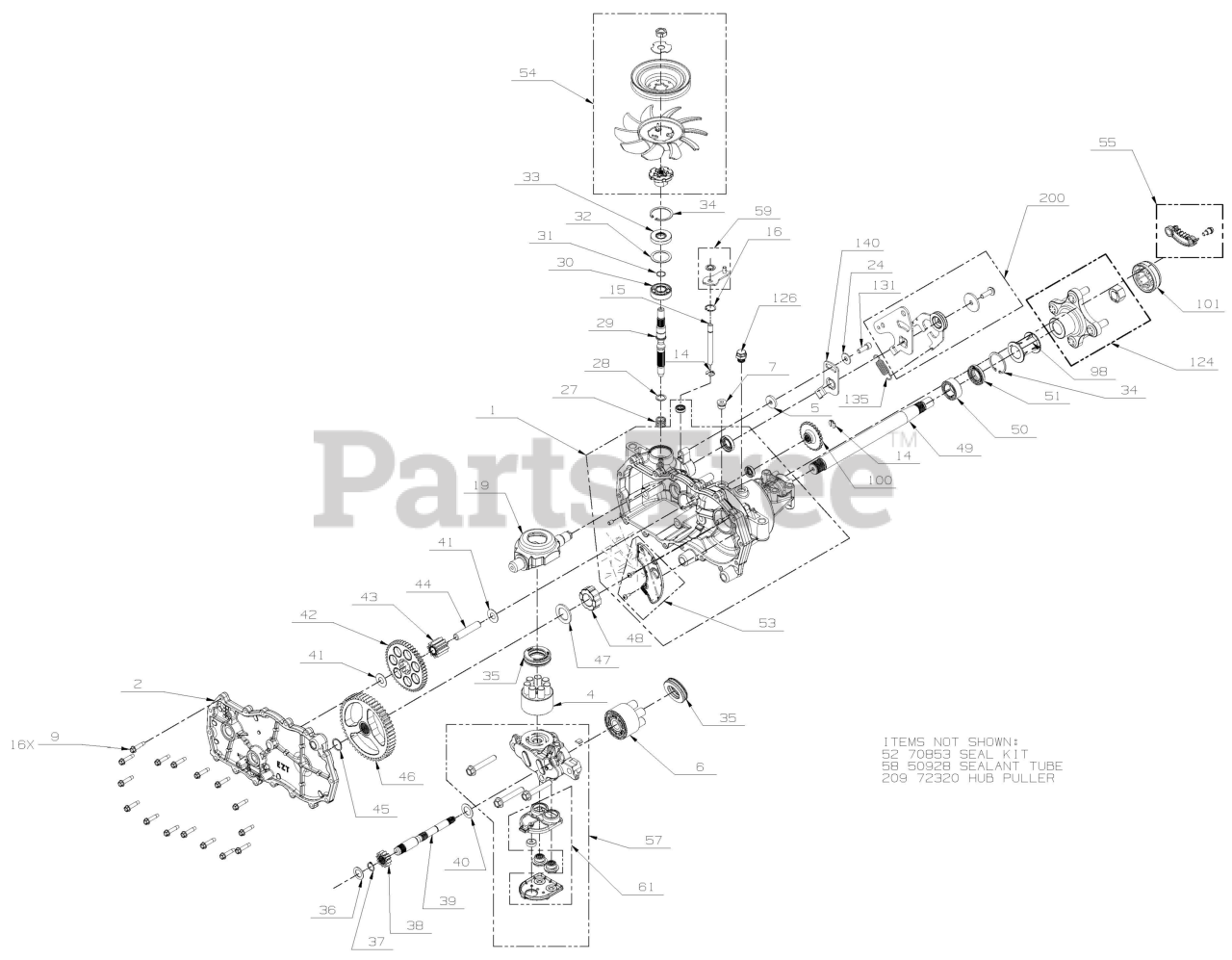

Transmission - 05291800 Parts Diagram

  • Title

1

Ariens 21543947

ASSEMBLY, MAIN HOUSING

$399.99

$

Usually ships in 4-12 days

0

2

Ariens 21543989

ASSEMBLY, SIDE HOUSING

$168.99

$

Usually ships in 4-12 days

0

4

Ariens 21543921

ASSY, BLOCK 7 PISTON

$142.99

$

Usually ships in 4-12 days

0

5

Ariens 21543870

SPACER

$

$

Not available

6

Ariens 21543889

KIT, 10 CC BLOCK

$101.99

$

Usually ships in 4-12 days

0

7

PLUG, 9/16-18 STR THREAD SOCKET HEAD

Note: Hydro_Gear p/n 9005110-5600

$

$

Not available

9

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.49

$

In Stock, only 3 left!

0

14

Ariens 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 14

0

15

Ariens 21543844

ROD, BYPASS

$

$

Not available

16

Ariens 21543846

RING, RET .750

$

$

Not available

19

Ariens 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

24

Ariens 08611200

WASHER

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

28

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

29

Ariens 21543785

SHAFT, INPUT

$96.99

$

Usually ships in 4-12 days

0

30

Ariens 21543738

BRG, BALL 17X40X12

$19.99

$

Usually ships in 4-12 days

0

31

Ariens 21543960

RING, RET WIRE .561 ID

$1.99

$

Usually ships in 4-12 days

0

32

Ariens 21543773

WASHER 1.23X1.56X.04

$5.99

$

In Stock, only 2 left!

0

33

Ariens 21543816

SEAL, LIP 17X40X7

$14.99

$

Usually ships in 4-12 days

0

34

Ariens 21543741

RING, RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

35

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

$17.99

$

Usually ships in 4-12 days

0

36

Ariens 21543708

WASHER .63X1.0X.05

$

$

Not available

37

Ariens 21543704

RING, RET 62 EXT

$

$

Not available

38

GEAR-PINION, 12T

Note: Hydro_Gear p/n 51767

$

$

Not available

39

Ariens 21543859

SHAFT, MOTOR

$

$

Not available

40

Ariens 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

41

Ariens 21543724

WASHER .5X1.0X.032

$

$

Not available

42

GEAR, 49T/10T

Note: Hydro_Gear p/n 51766

$

$

Not available

43

Ariens 21543781

GEAR, 10T JACKSHAFT

$

$

Not available

44

Ariens 21543793

JACK SHAFT (PIN)

$

$

Not available

45

RING, SPIRAL RETAINING-87

Note: Hydro_Gear p/n 52531

$

$

Not available

46

GEAR, BULL 52T

Note: Hydro_Gear p/n 52541

$

$

Not available

47

WASHER, 1.018 X 1.571 X .105 FLAT

Note: Hydro_Gear p/n 52532

$

$

Not available

48

BUSHING, SLEEVE (INBOARD)

Note: Hydro_Gear p/n 52542

$

$

Not available

49

SHAFT, AXLE

Note: Hydro_Gear p/n 53706

$

$

Not available

50

BUSHING, 1.003 x 1.571 x .625

Note: Hydro_Gear p/n 51517

$

$

Not available

51

SEAL, LIP, TC4 1.00 X 1.577 X .27

Note: Hydro_Gear p/n 51518

$

$

Not available

52

Ariens 21543935

KIT, SEALS AND RETAINING

$80.99

$

In Stock, only 1 left!

0

53

Ariens 21543988

KIT, EXPANSION PLATE RH

$

$

Not available

54

Ariens 21543736

FAN PULLEY KIT 4.5X1.625

$80.99

$

Usually ships in 4-12 days

0

55

Ariens 00362500

BRAKE ARM-LH, EZT
(Superseded to 51514100)

$58.99

$

In Stock, Qty 10

0

57

KIT, CENTER SECTION, W/FILTER - RH

Note: Hydro_Gear p/n 71530

$

$

Not available

58

Ariens 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

59

KIT, BYPASS ARM

Note: Hydro_Gear p/n 71006

$

$

Not available

61

Ariens 21543958

KIT, FILTER

$19.99

$

Usually ships in 4-12 days

0

98

TUBE, AXLE 1.835

Note: Hydro_Gear p/n 53731

$

$

Not available

100

Ariens 21543851

DISC, COG BRAKE

$21.99

$

In Stock, only 1 left!

0

101

CAP, AXLE

Note: Hydro_Gear p/n 53088

$

$

Not available

124

Ariens 21500051

KIT, HUB 4 BOLT

Note: Hydro_Gear p/n 71405

$83.99

$

Usually ships in 4-12 days

0

126

ASSEMBLY, FITTING 9/16-18 BREATHER

Note: Hydro_Gear p/n 55246

$

$

Not available

131

KIT, RTN SCREWS

Note: Hydro_Gear p/n 71341

$

$

Not available

135

Ariens 21544001

SPRING, HYDROGEAR P/N 51833

$

$

Not available

140

Ariens 21543866

ARM, NEUTRAL RIGHT

$11.99

$

Usually ships in 4-12 days

0

200

KIT, RTN BIDIRECTIONAL

Note: Hydro_Gear p/n 71588

$

$

Not available

209

Ariens 21544009

HUB PULLER 4 BLT HYDGEAR 71459
(Superseded to 21544008)

Note: Service Tool

$452.99

$

Usually ships in 4-12 days

0

Ariens 00057100

FLUID, HYDRO 15W50 QT

Note: Service Fluid

$14.99

$

In Stock, Qty 20+

0
