915266 - Ariens Ikon-XD 52" Zero-Turn Mower, 24hp Kohler Twin (SN: 060000 & Above) Front Caster Wheels Parts Diagram

Ikon-XD 52" Zero-Turn Mower, 24hp Kohler Twin

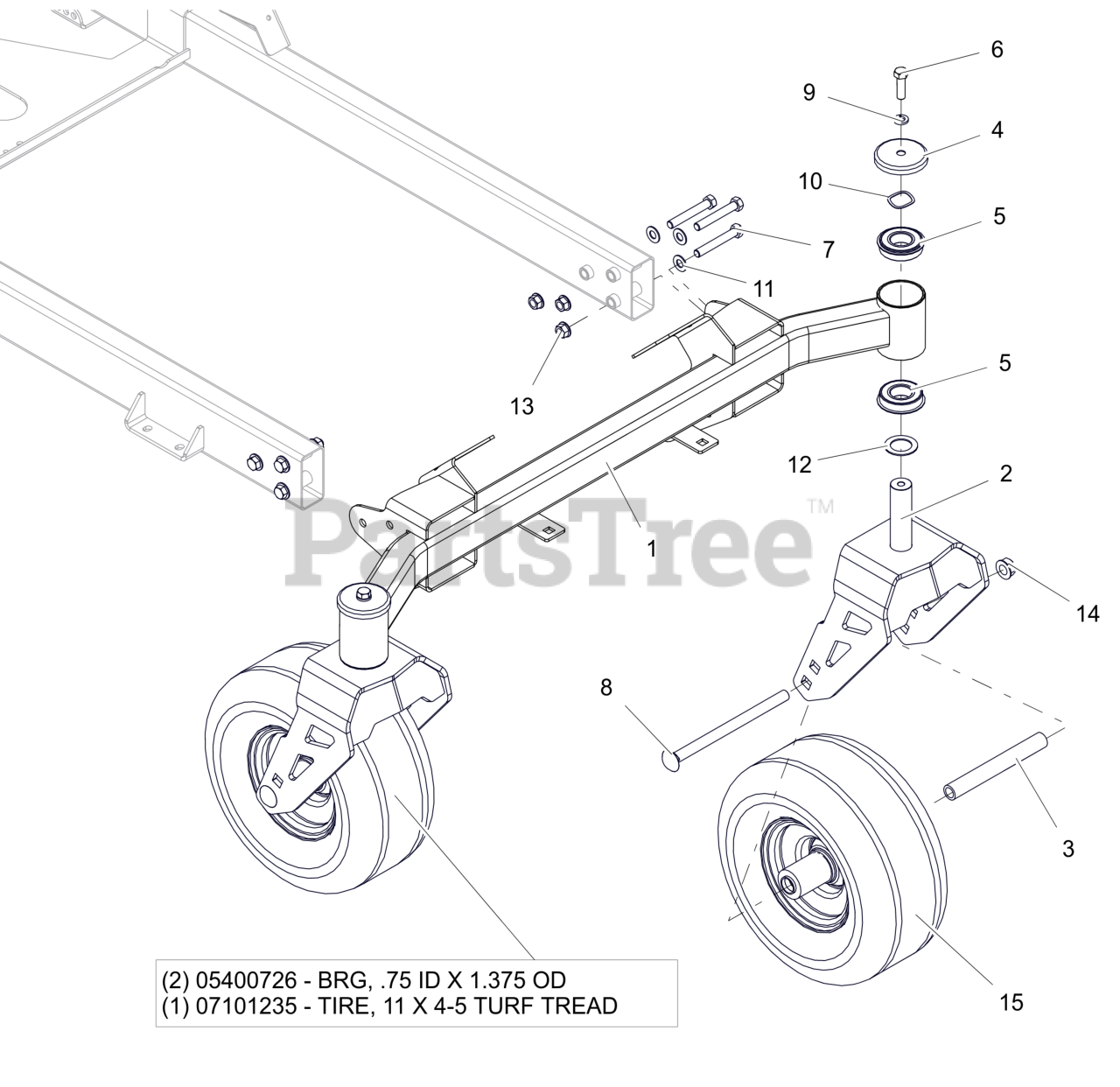

Front Caster Wheels Parts Diagram

  • Title

1

Ariens 05198159

WMT-FRONT AXLE-X/XL

$168.99

$

In Stock, only 1 left!

0

2

Ariens 05186559

WLDMT, CASTER FORK-XL (ORANGE)

$97.99

$

In Stock, only 2 left!

0

3

Ariens 00853400

SPACER, FRONT WHEEL (WIDE 6.0)

$14.99

$

In Stock, only 1 left!

0

4

Ariens 05198400

SHIELD, AXLE BEARING

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

Usually ships in 4-12 days

0

6

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05901811

BLT, HEX .38-16X2.50 G8 ZCC

$3.99

$

In Stock, only 4 left!

0

8

Ariens 06200320

BLT, RHSN .50-13X7.50 G5 ZCC
(Superseded to 06200509)

$6.99

$

In Stock, only 3 left!

0

9

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 20+

0

11

Ariens 06401129

WSHR,FLT-HRD.406X.812X.055 MZC

$1.49

$

In Stock, Qty 5

0

12

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06500905

NUT-LK-TOP-FLG .375-16 GG ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07101336

TIRE/WHEEL ASSY 11X6-5
(Superseded to 07101105)

$91.99

$

Usually ships in 4-12 days

0

15

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

15

Ariens 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$51.99

$

Usually ships in 4-12 days

0
