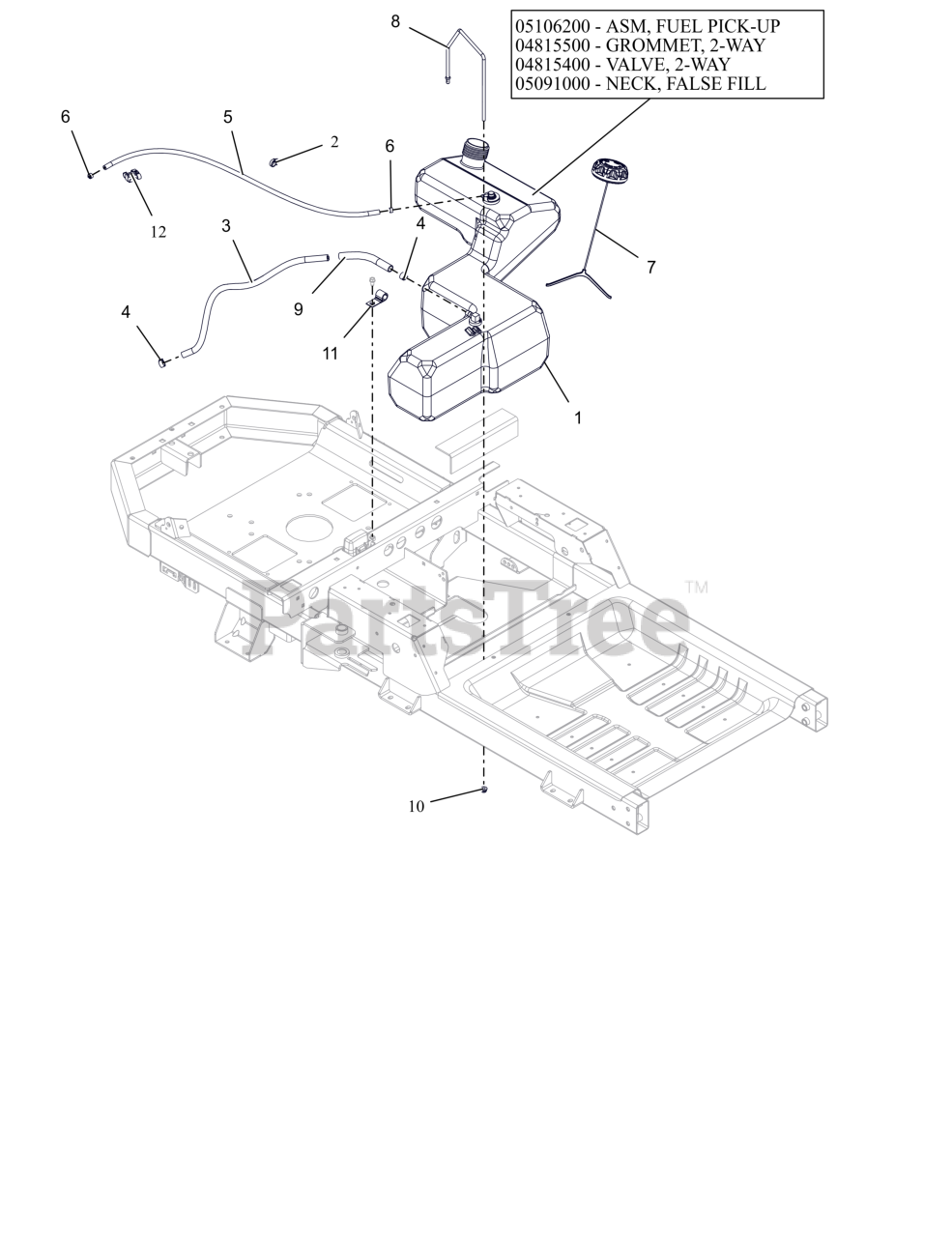

915262 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 - 029999) Fuel System - Kawasaki Parts Diagram

42" Zero-Turn Mower, 21.5hp Kawasaki FR

Fuel System - Kawasaki Parts Diagram

  • Title

1

Gravely 05264800

ASM, FUEL TANK-IKON
(Superseded to 09167200)

$

$

Not available

1

Gravely 05106200

ASM, IKON FUEL PICK-UP

Note: Service Part Component

$29.99

$

In Stock, only 1 left!

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: Service Part Component

$3.49

$

In Stock, Qty 9

0

1

Gravely 04815400

VALVE, 2-WAY

Note: Service Part Component

$19.99

$

In Stock, Qty 8

0

1

Gravely 05091000

NECK, FALS FILL - 2017 IKON

Note: Service Part Component

$

$

Not available

2

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 10

0

6

Gravely 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

7

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$18.99

$

In Stock, Qty 20+

0

8

Gravely 05099867

BRKT, FUEL

$

$

Not available

9

Gravely 05118500

SLEEVE, ANTI ABRASION .5" X .064" WALL

$

$

Not available

10

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

11

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available
