915257 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 030000 - 059999) Rear Tires and Transaxles Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

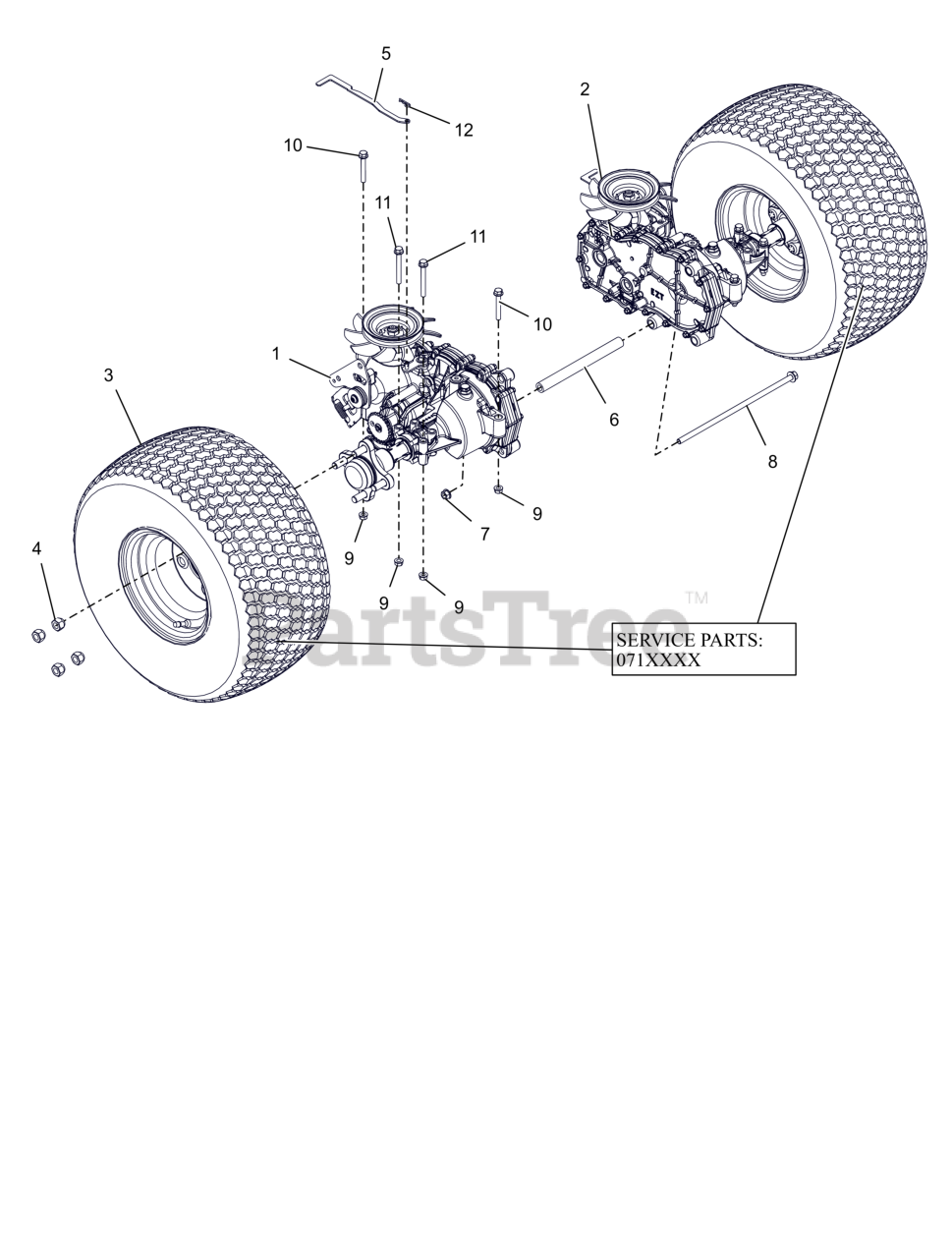

Rear Tires and Transaxles Parts Diagram

  • Title

1

Gravely 05291900

TRANSAXLE, RH

$1158.99

$

Usually ships in 4-12 days

0

2

Gravely 05291800

TRANSAXLE, LH

$1170.99

$

Usually ships in 4-12 days

0

3

Gravely 07101333

ASSM TIRE\WHEEL, 20 X 10 -8

$148.99

$

Usually ships in 4-12 days

0

3

TIRE, 20 X 10 - 8

Note: Service Part Component

$

$

Not available

4

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

6

Gravely 05162451

SPCR, TRANSAXLE .438 ID X .750 OD X 8.18 (BLACK)

$19.99

$

In Stock, only 1 left!

0

7

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901902

BLT, HEX-FLG 0.375-16X11.5 GR5 ZC120

$11.99

$

In Stock, only 1 left!

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0
